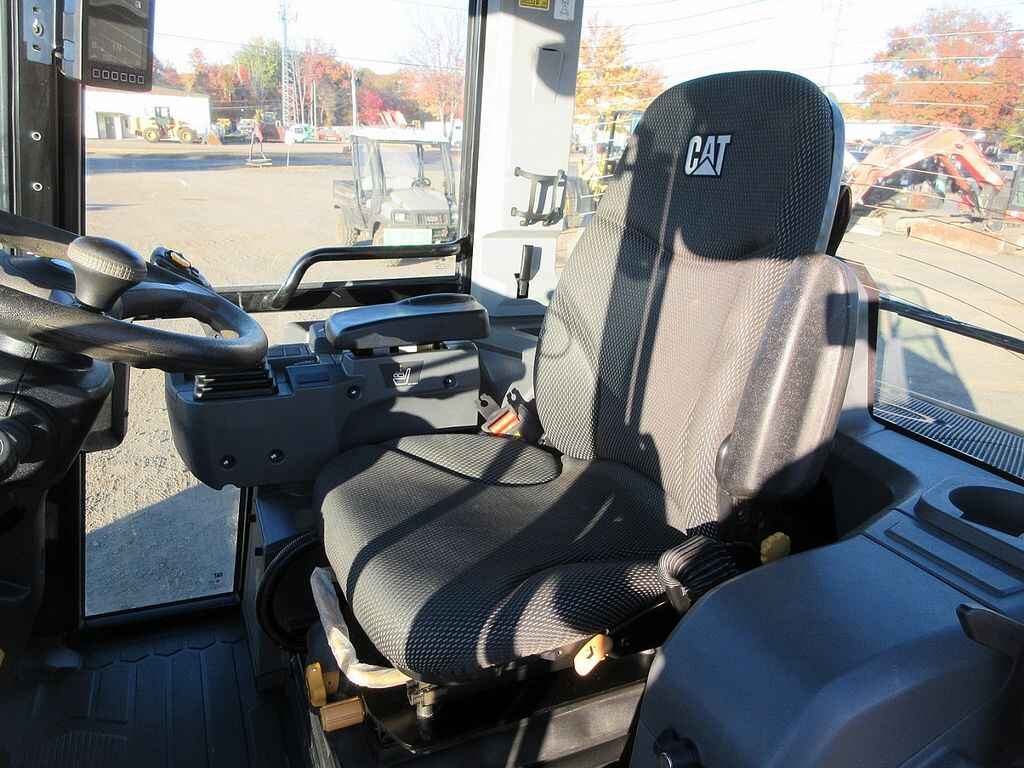

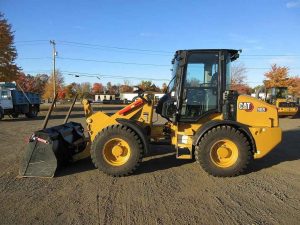

CATERPILLAR C2.8 4 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, KEYLESS START, 2 SPEED TRAVEL, 405/70R20 RADIAL RUBBER, AUX HYD, HYD COUPLER, GP BUCKET WITH BOCE, 48″ FORKS, METER READS 646 HOURS, S/N CAT00908EHZ801474, LIKE NEW CONDITION
Engine
Engine Model: Cat C2.8
Maximum Gross Power: 74.7 hp
Rated Net Power: 72.7 hp
Maximum Engine Speed: 2550 rpm
Displacement: 171 in³
Bore: 3.54 in
Stroke: 4.33 in
Maximum Gross Torque: 222 lb/ft
Maximum Net Torque: 218 lb/ft
Engine Emission Options: Meets U.S. EPA Tier 4 Final, EU Stage V / U.S. EPA Tier 3, EU Stage IIIA equivalent
Weights
Operating Weight: 14,617 lb
Buckets
General Purpose Bucket Capacity: 0.80-1.35 m³ (1.0-1.7 yd³)
Multi-Purpose Bucket Capacity: 0.75-1.1 m³ (1.0-1.4 yd³)
Light Material Bucket Capacity: 1.25-1.55 m³ (1.6-2 yd³)
Service Refill Capacities
Fuel Tank: 24 Gal
Cooling System: 3.2 Gal
Engine Crankcase: 2.3 Gal
Hydraulic System (Incl. Tank): 18.6 Gal
Hydraulic Tank: 11.8 Gal
Transmission: 0.6 Gal
Axles
Front: Fixed (Standard), Locking Differential (Optional)
Rear: Fixed (Standard), Locking Differential (Optional)
Oscillation: ±11 degrees via hitch between front and rear frames
Steering
Articulation Angle: 39° (Each Direction)
Maximum Flow: 12.3 gal/min
Maximum Working Pressure: 3336 psi
Steering Cycle Time: 2.8 s (Full Left to Full Right)
Transmission
Speed Range 3 (Max Speed): 25 mph (Reverse: 19 mph)
Speed Range 2: 12 mph (Standard), 10.5 mph (High Speed)
Speed Range 1: 6 mph
Creep Speed: 6 mph
Tires

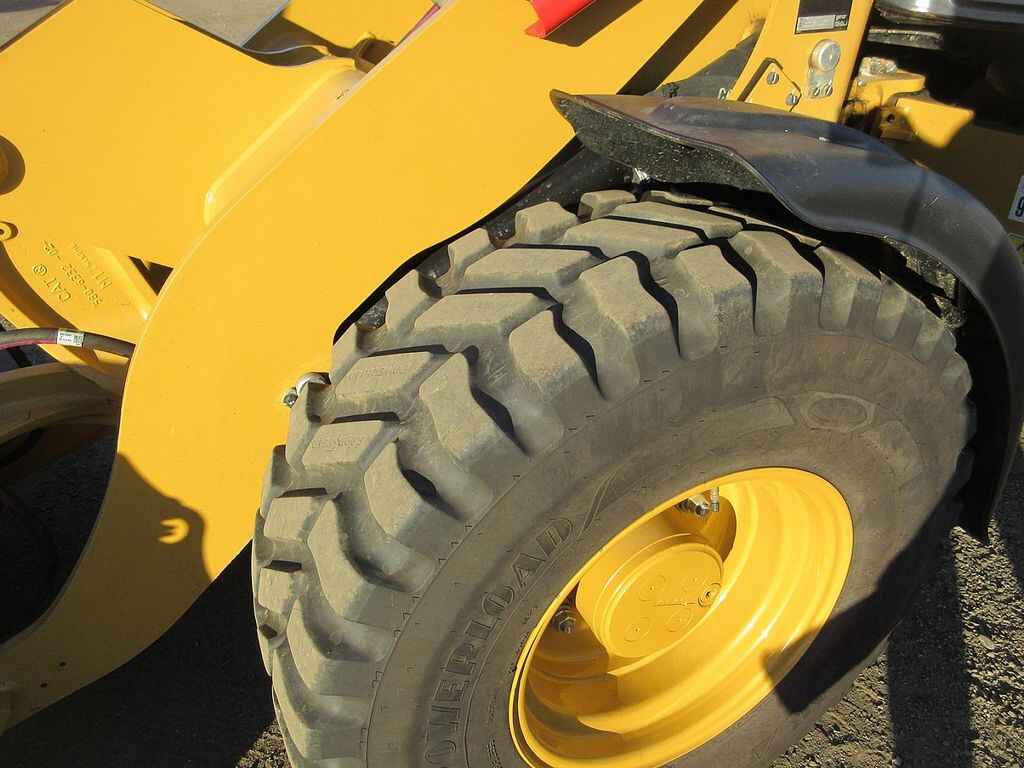

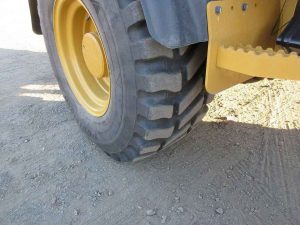

Standard Tire Size: 405/70 R20 SPT9
Optional Tire Sizes: 405/70 R20 Powerloads, 400/70 R20 XMCL/Bibload, 360/80 R20 TRI 2
Cab
ROPS: ISO 3471:2008
FOPS: ISO 3449:2005 Level II
Canopy: Not available in EU
Loader Hydraulic System
Main Relief Pressure – 1st Auxiliary: 3408 psi
Main Relief Flow – Standard: 24 gal/min
Main Relief Flow – High Flow: 33 gal/min
Hydraulic Cycle Times:
- Rackback: 2.5 s
- Lift: 5.8 s
- Dump: 1.8 s
- Float Down: 3.6 s
Dimensions
Height to Cab: 8.75 ft
Height to Beacon: 9.33 ft
Length Overall (With Bucket): 18.17 ft
Wheel Base: 7.08 ft
Bucket Clearance (at 45°): 8.58 ft
Ground Clearance: 1 ft
Turning Radius (Outside Tires): 13.17 ft
Tipping Load – Straight: 10,626 lb
Tipping Load – Full Turn: 8,895 lb
Operating Weight: 14,633 lb
Additional Dimensions (With SSL Coupler)
Height to Cab: 8.75 ft
Height to Beacon: 9.33 ft
Length Overall: 18.67 ft
Turning Radius (Over Bucket): 15.08 ft
Operating Weight: 14,752 lb
Tipping Load – Straight: 10,956 lb
