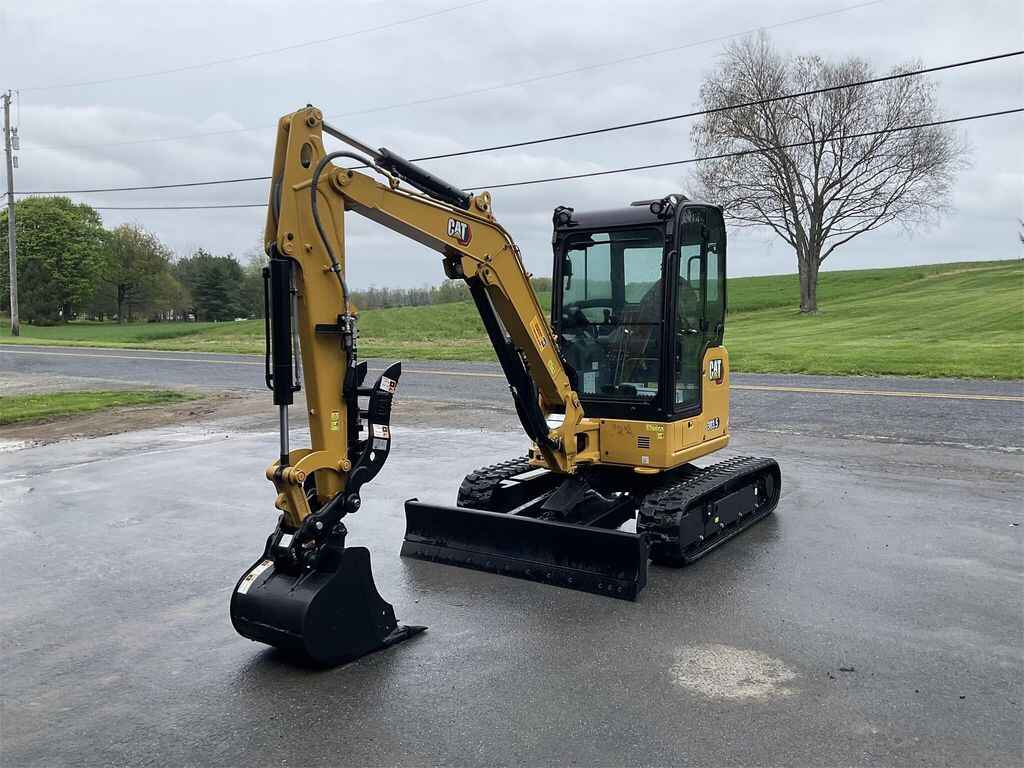

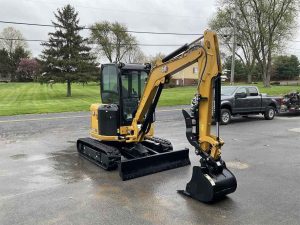

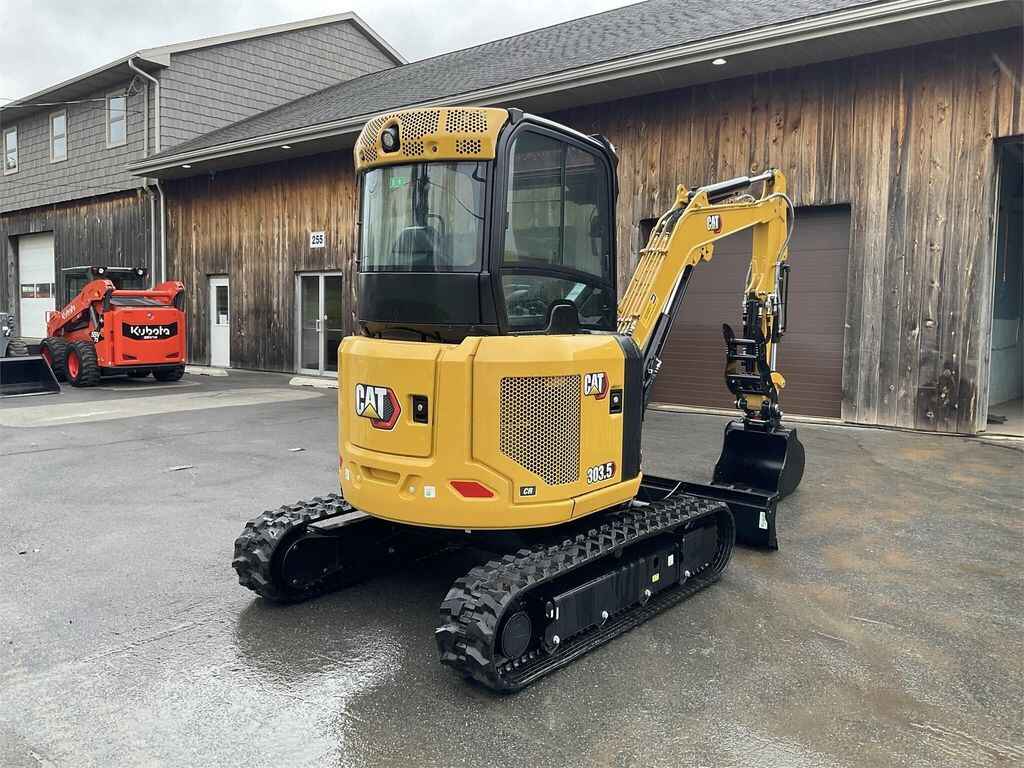

2023 Caterpillar 303.5 Mini Excavator (Cab with Heat & AC!! Hydraulic Thumb!! LIKE NEW with ONLY 4 HOURS!! ). Ready to go to Work CATERPILLAR 303.5CR MINI EXCAVATOR, In ABSOLUTE Perfect Condition, ONLY 4 Hours. Cat® C1.7 Turbo Engine 24.7 hp. ENCLOSED CAB with Heat & AC, Hydraulic Thumb
Engine
- Model: Cat® C1.7
- Net Power: 23.6 hp (17.6 kW)
- Displacement: 104 in³ (1.7 L)
- Emissions: Meets U.S. EPA Tier 4 Final and EU Stage V standards
Weights
- Operating Weight: 9,239 lbs (4,190 kg)
Performance
- Maximum Digging Depth: 122.4 in (3,110 mm)
- Maximum Reach at Ground Level: 211.8 in (5,380 mm)
- Bucket Digging Force: 7,419 lbf (33.0 kN)
- Stick Digging Force (Standard): 4,249 lbf (18.9 kN)
- Stick Digging Force (Long): 3,799 lbf (16.9 kN)
Hydraulics
- Main System – Maximum Flow: 26 gal/min (100 L/min)
- Maximum Operating Pressure – Equipment: 3,553 psi (245 bar)
- Maximum Operating Pressure – Travel: 3,553 psi (245 bar)
- Maximum Operating Pressure – Swing: 2,625 psi (181 bar)
Dimensions
- Overall Length: 189 in (4,800 mm)
- Overall Width: 70.1 in (1,780 mm)
- Overall Height: 98.4 in (2,500 mm)
- Tail Swing Radius: 35 in (890 mm)
- Ground Clearance: 12.2 in (310 mm)
Features
- Operator Station: Available with canopy or sealed and pressurized cab with air conditioning
- Controls: Easy-to-use with intuitive Next Generation LCD monitor
- Travel Mode: Stick Steer option for easier movement around the job site
- Safety: Courtesy work lights and fluorescent retractable seat belt

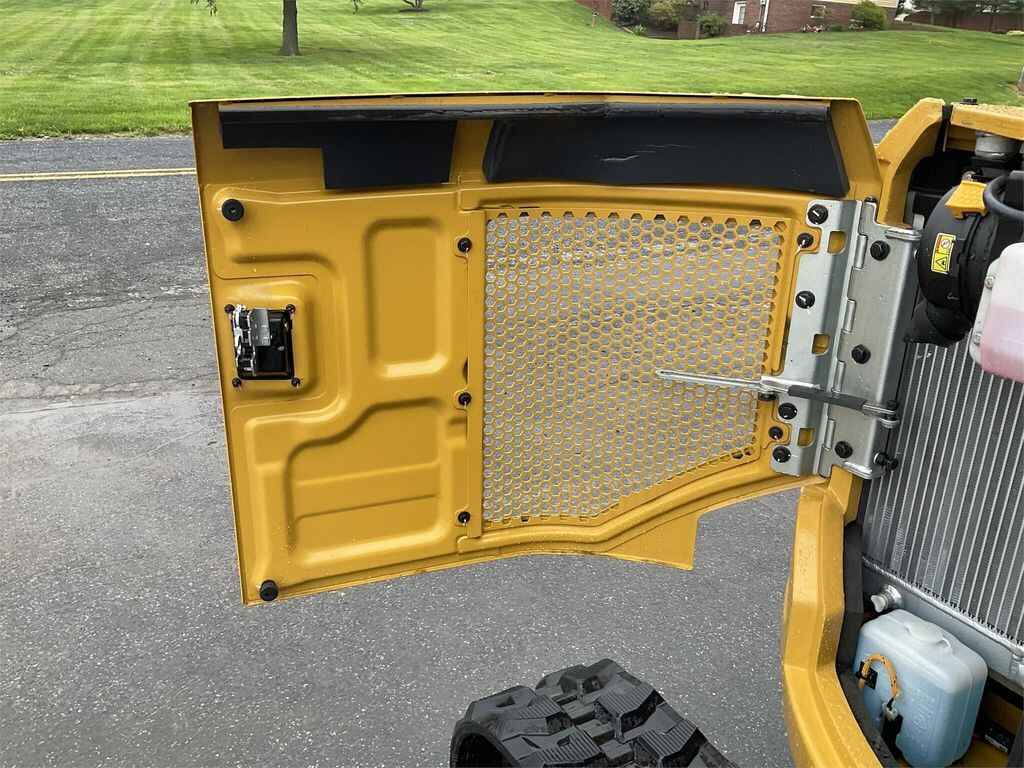

- Maintenance: Tilt-up cab or canopy for easy access to service areas
- Operating Costs: Features like auto idle and auto engine shutdown to reduce fuel consumption
