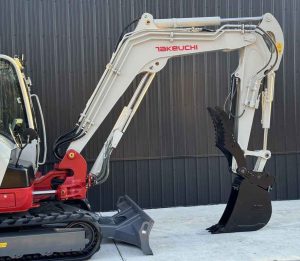

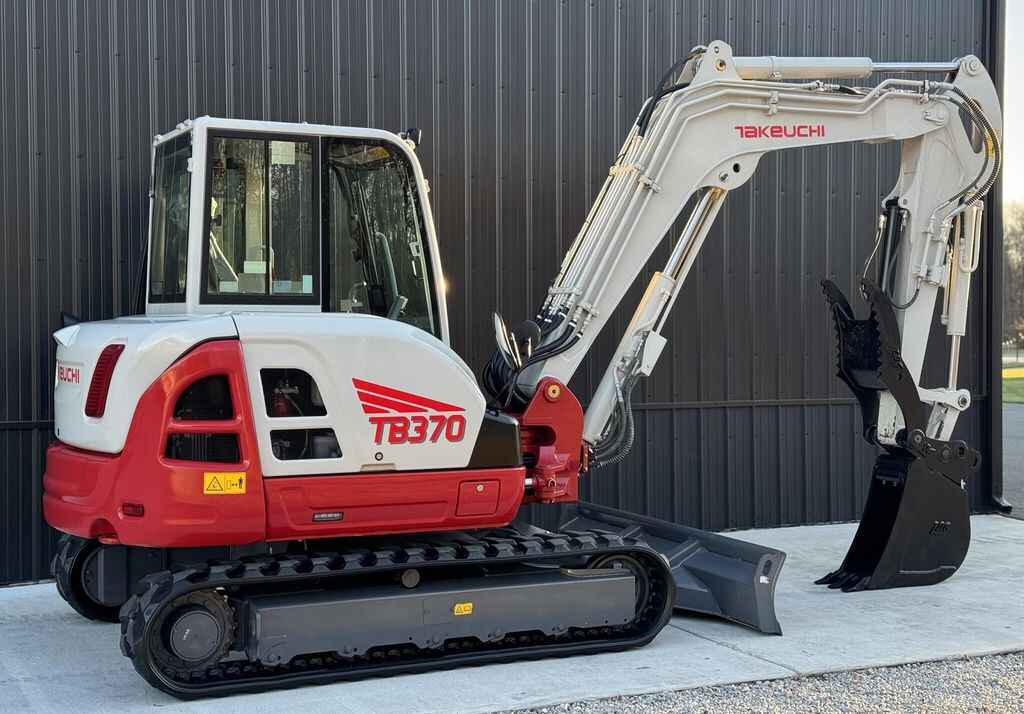

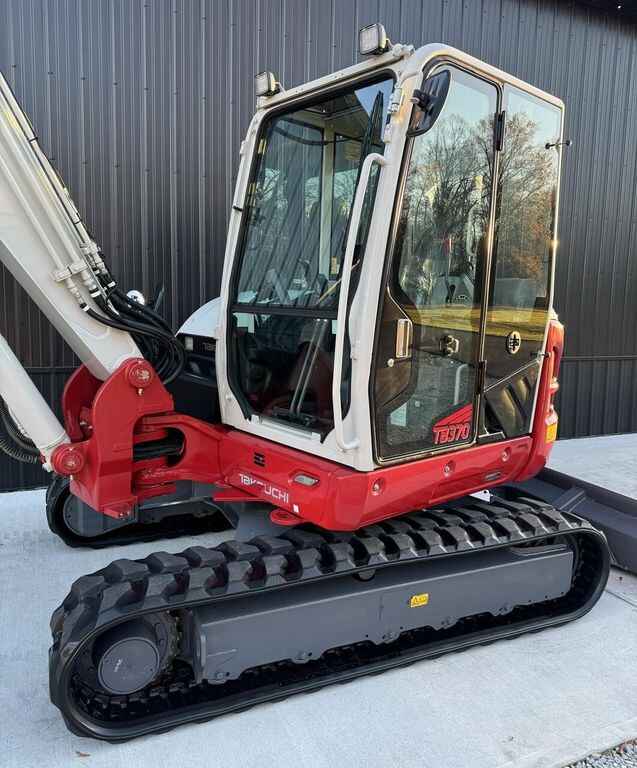

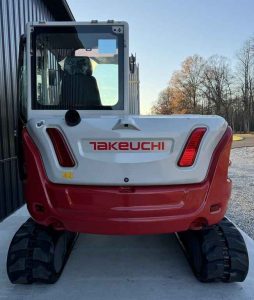

2022 TAKEUCHI TB370 4 Buckets!
PRICE FIRM NO TAX OR FEES
(This machine is over 100k New)
Still under Factory Warranty! Just FULLY serviced, cleaned & Greased! SAVE on this one! Delivery Available!
– LIGHTLY USED 1,092 Hrs!
– PHOTOS JUST TAKEN

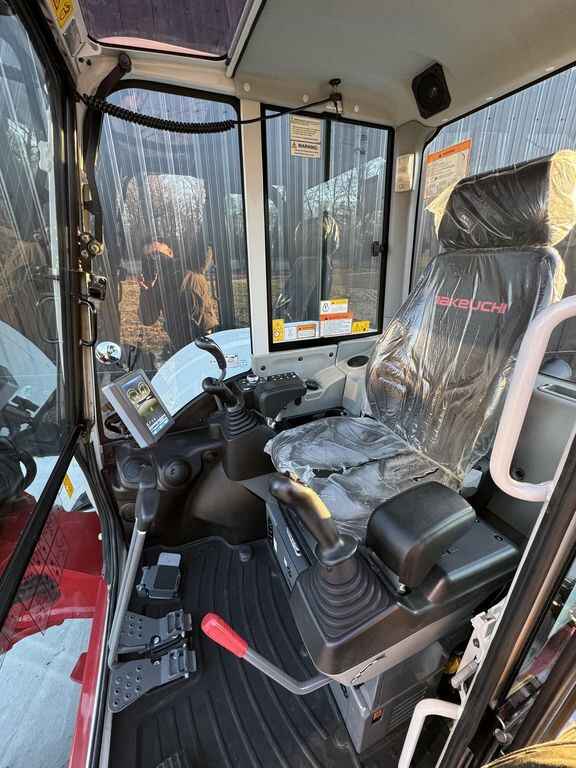

– HEAT/AC/RADIO
– Touch Screen Display
– Rear Camera
– Hydraulic Thumb
– 14,850 Lbs
– 12” 24” 36” Tooth & 36” Grading
– And more!
READY TO WORK!
Engine:
- Make/Model: Kubota V2607-CR-TE5B
- Displacement: 159.6 cu in (2,615 ml)
- Horsepower @ 2,200 rpm: 56.9 hp (42.4 kW)
- Maximum Torque @ 1,500 rpm: 168.1 ft-lb (227.9 Nm)
Operating Performance:
- Operating Weight: 14,850 lb (6,735 kg)
- Slew Speed: 8.8 rpm
- Travel Speed:
- Low Range: 1.6 mph (2.5 km/hr)
- High Range: 2.9 mph (4.7 km/hr)
- Gradeability: 30°
- Ground Pressure (Cab, Rubber Tracks): 5.4 psi (37.0 kPa)
- Maximum Bucket Breakout Force: 14,613 lb (6,628 kg)
- Maximum Arm Digging Force: 6,609 lb (2,998 kg)
- Traction Force: 16,479 lb (7,475 kg)
- Boom Swing Angle:
- Left: 79°
- Right: 51°
Hydraulic System:
- Auxiliary Flow:
- Primary Circuit: 31.7 gpm (120.0 L/min)
- Secondary Circuit: 12.3 gpm (46.6 L/min)
- Hydraulic System Pressure: 3,550 psi (24.5 MPa)
Fluid Capacities:
- Engine Lubrication: 9.5 qt (9.0 L)
- Cooling System: 11.6 qt (11.0 L)
- Fuel Tank Capacity: 29.0 gal (110.0 L)
- Hydraulic Reservoir Capacity: 17.3 gal (65.5 L)
- Hydraulic System Capacity: 36.7 gal (139.0 L)
Dimensions:
- Maximum Reach: 21 ft 11.4 in (6,690 mm)
- Maximum Reach at Ground Level: 21 ft 6.4 in (6,565 mm)
- Maximum Digging Depth: 13 ft 4.7 in (4,085 mm)
- Maximum Vertical Digging Depth: 12 ft 6.2 in (3,815 mm)
- Maximum Height of Cutting Edge: 21 ft 0.7 in (6,420 mm)
- Maximum Dumping Height: 14 ft 11.0 in (4,545 mm)
- Front Swing Radius: 8 ft 5.5 in (2,580 mm)
- Front Swing Radius with Boom Offset: 6 ft 8.3 in (2,040 mm)
- Slew Radius: 4 ft 9.4 in (1,455 mm)
- Transport Length: 19 ft 5.2 in (5,925 mm)
- Transport Height: 8 ft 4.0 in (2,540 mm)
- Upper Structure Overall Width: 6 ft 10.5 in (2,095 mm)
- Ground Clearance: 13.2 in (335 mm)
- Undercarriage Length: 8 ft 5.4 in (2,575 mm)
- Undercarriage Width: 6 ft 10.7 in (2,100 mm)
- Track Width (Rubber): 15.7 in (400 mm)
