4 cyl Caterpillar turbo diesel, cab with heat, 2 speed travel, 405/70R18 radial rubber, aux hyd, hyd coupler, bucket with teeth and Forks Included, meter reads 314 hours, S/N CAT0906MVK5602880, LIKE NEW CONDITION
Engine
- Engine Model: Cat C3.3B DIT
- Rated Net Power: 74 hp (55 kW)
- Displacement: 201 cu in (3.3 L)
- Bore: 3.7 in (94 mm)
- Stroke: 4.7 in (120 mm)
- Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards
- Maximum Gross Power: 74 hp (55 kW)
- Maximum Net Power: 68 hp (50 kW)
- Rated Net Power @ 2,400 RPM: 73 hp (54 kW)
- Maximum Gross Torque: 192 lb-ft (260 Nm)
- Maximum Net Torque: 189 lb-ft (257 Nm)
Drive Train
- Forward Speed:
- Range 1: 6 mph (10 km/h)
- Range 2: 12 mph (19 km/h)
- High Range: 22 mph (35 km/h)
- Reverse Speed:
- Range 1: 6 mph (10 km/h)
- Range 2: 12 mph (19 km/h)
- High Range: 22 mph (35 km/h)
Operating Weight
- Operating Weight: 12,346 lbs (5,600 kg)
Hydraulic System
- Main Relief Pressure: 3,400 psi (23,400 kPa)
- Maximum Flow: 19 gal/min (72 L/min) (Standard Flow)
- Hydraulic Cycle Times:
- Lift: 5.2 sec
- Dump: 1.3 sec
- Lower: 3.2 sec
- Rackback: 2.1 sec
Dimensions
- Ground Clearance: 11.8 in (300 mm)
- Maximum Fork Height: 10.1 ft (3.1 m)
- Cab Height: 8.1 ft (2.5 m)
- Fork Height at Maximum Reach: 4.7 ft (1.4 m)
- Maximum Reach: 3.9 ft (1.2 m)
- Dig Depth: 3.7 in (95 mm)
- Overall Length (with bucket): 18.5 ft (5.6 m)
- Overall Length (with forks): 19.4 ft (5.9 m)
- Maximum Dump Height: 8.1 ft (2.5 m)
- Turning Radius – Inside Tire: 7.3 ft (2.2 m)
- Width: 6.2 ft (1.9 m)
- Wheel Base: 7.1 ft (2.2 m)
- Departure Angle: 33 degrees
- Articulation Angle: 39 degrees
Bucket Capacities
- General Purpose: 1.2 yd³ (0.9 m³)
- Light Material: 1.6 yd³ (1.2 m³)
Tire Options

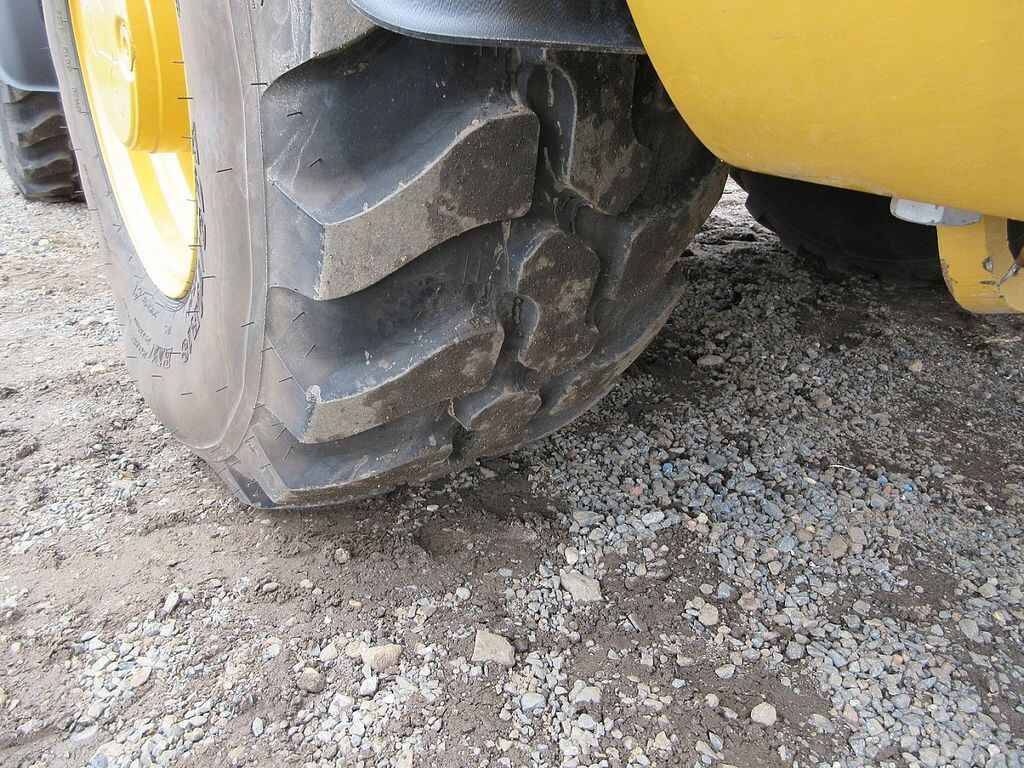

- Standard Tire: 405/70 R18 Dunlop SPT9
- Other available options: Michelin, Firestone, Nokian, etc.
Operating Specifications
- Rated Operating Load (with bucket, full turn): 7,507 lbs (3,400 kg)
- Tipping Load (full turn): 7,061 lbs (3,200 kg)
- Tipping Load (straight): 8,666 lbs (3,930 kg)
- Breakout Force (bucket): 11,689 lb-ft (15,850 Nm)
Cab Features
- Standard Features:
- Lockable storage box
- Cup holder
- Vinyl suspension seat
- Adjustable internal mirror
- Coat hook
- Fixed steering column
- Sun visor
- External knock back mirrors
- Optional Features:
- Air conditioner
- Cat radio/CD/MP3/WMA/Aux
- Heated rear window
- Machine security system
- Radio-ready kit
Service Refill Capacities
- Cooling System: 4.4 gal (16.7 L)
- Fuel Tank: 13.7 gal (51.9 L)
- Hydraulic Tank: 12.2 gal (46.2 L)
- Hydraulic System (including tank): 18.5 gal (70.1 L)
- Engine Crankcase: 3 gal (11.4 L)
- Transmission: 2.2 gal (8.3 L)
Loader Hydraulic System
- Lift Cylinder Stroke: 27.4 in (695 mm)
- Tilt Cylinder Stroke: 16.4 in (417 mm)
- Maximum Flow: 19 gal/min (72 L/min)
Optional Features
- Buckets:
- General Purpose Bucket
- Light Material Bucket
- Multi-purpose Bucket
- Auxiliary Hydraulics:
- Standard flow: 19 gal/min (72 L/min)
- High flow: 31 gal/min (117 L/min)
