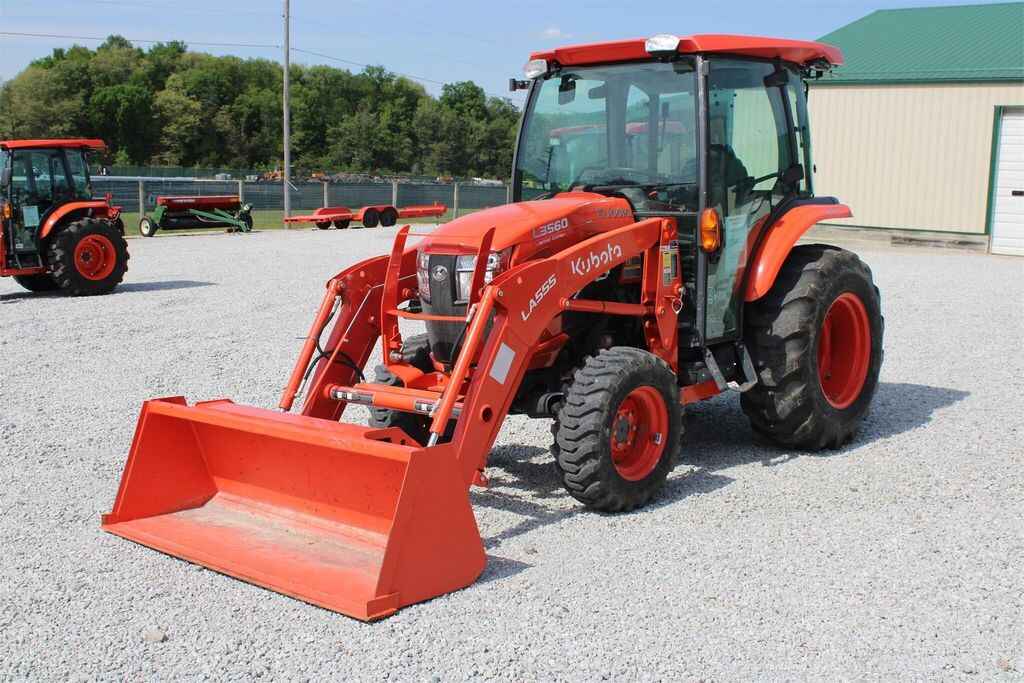

Kubota L3560 Tractor W/ Cab & Loader – Hydrostat, 540 PTO, 1 SCV, 6ft Quick Attach Bucket, Few Scratches On Hood ~Powertrain Warranty Thru 7/7/2027 ~Manual
Engine
- Model: Kubota D1803-CR-E4
- Type: 4-cycle, liquid-cooled, 3-cylinder diesel
- Displacement: 111.4 cu in (1.826 L)
- Gross Power: 37.0 HP (27.6 kW) @ 2700 rpm
- Net Power: 35.0 HP (26.1 kW) @ 2700 rpm
- PTO Power: 29.5 HP (22.0 kW) @ 2700 rpm (gear models)
- Fuel Tank Capacity: 11.1 gallons (42 L)
Transmission
- Type: Hydrostatic (HST) with 3-range speed
- Speeds: Infinite (3-range) forward and reverse
- Travel Speed: 0-16.0 mph (0-25.7 km/h) forward
Dimensions
- Overall Length: 115.0 in (2920 mm)
- Overall Width: 59.8 in (1520 mm)
- Overall Height: 97.2 in (2470 mm)
- Wheelbase: 71.1 in (1805 mm)
- Ground Clearance: 13.5 in (343 mm)
- Weight: 3483 to 3880 lbs (1580 to 1760 kg)
Hydraulics
- Hydraulic Pump Capacity: 8.3 gpm (31.4 L/min)
- 3-Point Hitch: Category I
- Lift Capacity at 24 inches behind lift point: 2646 lbs (1200 kg)

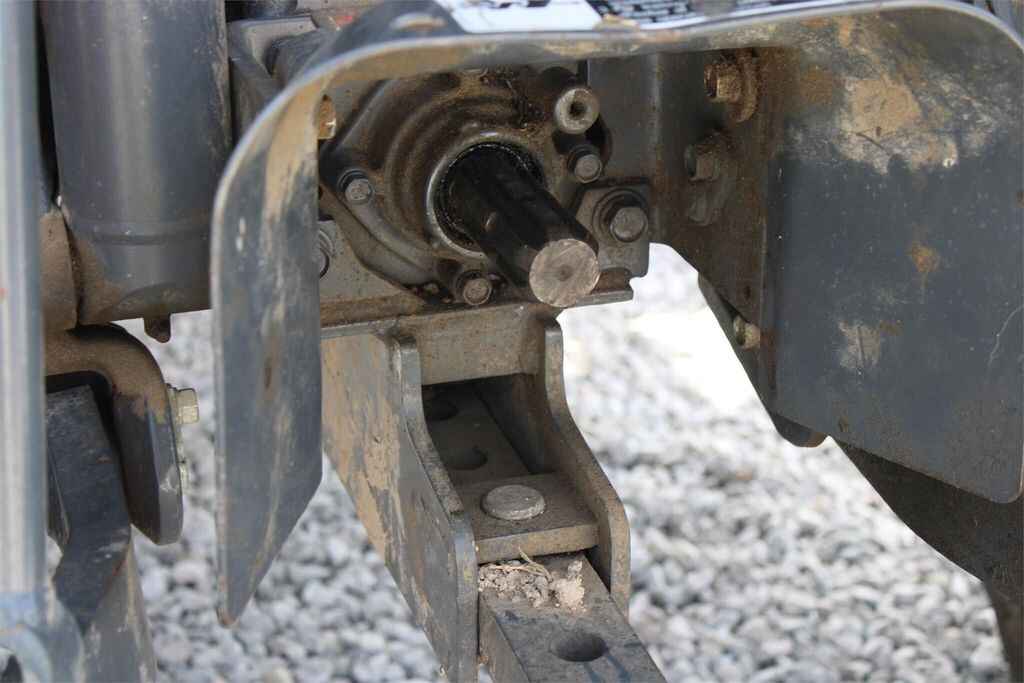

Power Take-Off (PTO)
- Rear PTO: Independent
- Rear PTO Speed: 540 rpm @ 2550 engine rpm
- Mid PTO (optional): 2000 rpm @ 2577 engine rpm
Tires
- Standard Front: 7.2-16
- Standard Rear: 12.4-24
- Optional Front: 10-16.5
- Optional Rear: 420/70-24
Features
- 4WD: Standard
- Steering: Hydrostatic power
- Brakes: Wet disc type
- ROPS: Two-post foldable
- Cab (optional): Grand Cab with air-conditioning
