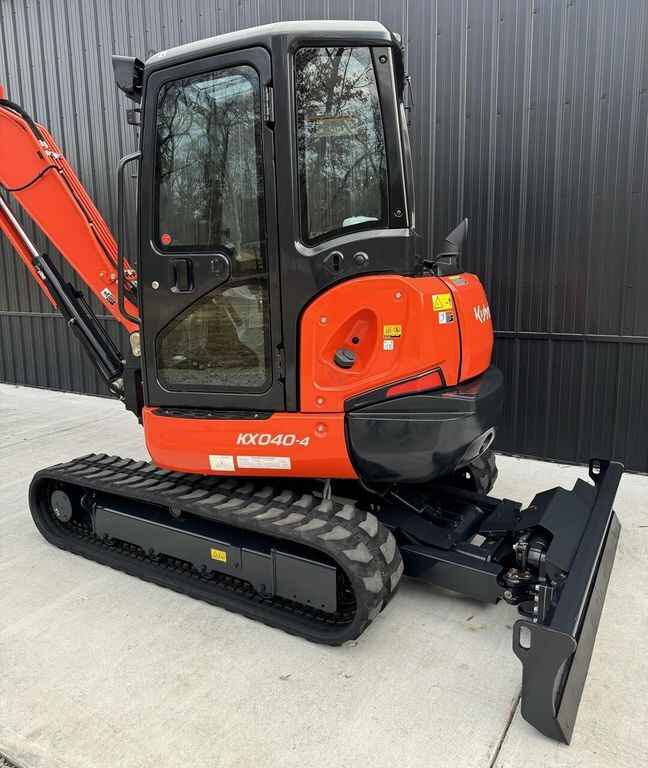

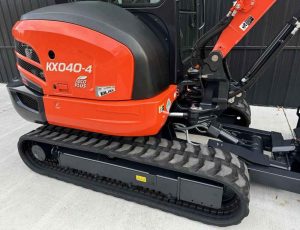

2021 KUBOTA KX040-4 CLEAN!
PRICE FIRM NO TAX OR FEES
6M/1500Hr FULL WARRANTY! Factory Emissions warranty through 10-5-26! SAVE on this one! Just fully cleaned, Serviced, greased & looked over. Photos just taken! Delivery available!
– ONLY 391 Hrs
– 6 WAY BLADE!
– HEAT/AC/RADIO
– Hydraulic Thumb
– Manual Quick Coupler
– 2 Speed
– 9,500 Lbs
– 40Hp
Machine is TIGHT & READY TO WORK
Engine:
- Model: Kubota D1803-CR-TE4
- Type: Water-cooled, diesel
- Gross Power: 40.4 hp (30.1 kW)
- Net Power: 38.9 hp (29.0 kW)
- Rated RPM: 2,200
- Displacement: 111.4 cu in (1,826 cc)
- Emissions Compliance: EPA Tier 4
Dimensions:
- Operating Weight: 9,195–9,855 lbs (4,170–4,470 kg)
- Overall Length: 16 ft 8.2 in (5,085 mm)
- Overall Width: 5 ft 6.9 in (1,700 mm)
- Overall Height: 8 ft 1.8 in (2,485 mm)
- Ground Clearance: 12.99 in (330 mm)
- Tail Swing Radius: 4 ft 3.2 in (1,300 mm)
Performance:
- Maximum Digging Depth: 11 ft 2.6 in (3,415 mm)
- Maximum Reach at Ground Level: 17 ft 9 in (5,410 mm)
- Maximum Dumping Height: 12 ft 9.5 in (3,900 mm)
- Bucket Digging Force: 9,535 lbf (4,325 kgf)
- Arm Digging Force: 4,112 lbf (1,865 kgf)
- Travel Speed: Low: 1.8 mph (2.9 km/h); High: 3.1 mph (5.0 km/h)
- Boom Swing Angle: Left: 70°; Right: 55°
Hydraulic System:
- Pump Capacity: 16.9 GPM (64 L/min)
- Auxiliary Hydraulic Flow: AUX1: 11.1 GPM (42 L/min); AUX2: 19.6 GPM (74 L/min)
- Hydraulic Reservoir Capacity: 9.8 gal (37 L)
- Hydraulic System Capacity: 17.2 gal (65 L)
Capacities:
- Fuel Tank: 24.4 gal (92.4 L)
Blade:
- Width: 5 ft 6.9 in (1,700 mm)
- Height: 15.75 in (400 mm)
- Max Lift Above Ground: 1 ft 3.7 in (400 mm)
- Max Drop Below Ground: 1 ft 1.8 in (350 mm)
- Angle Blade Swing Angle: 25° (left/right)
