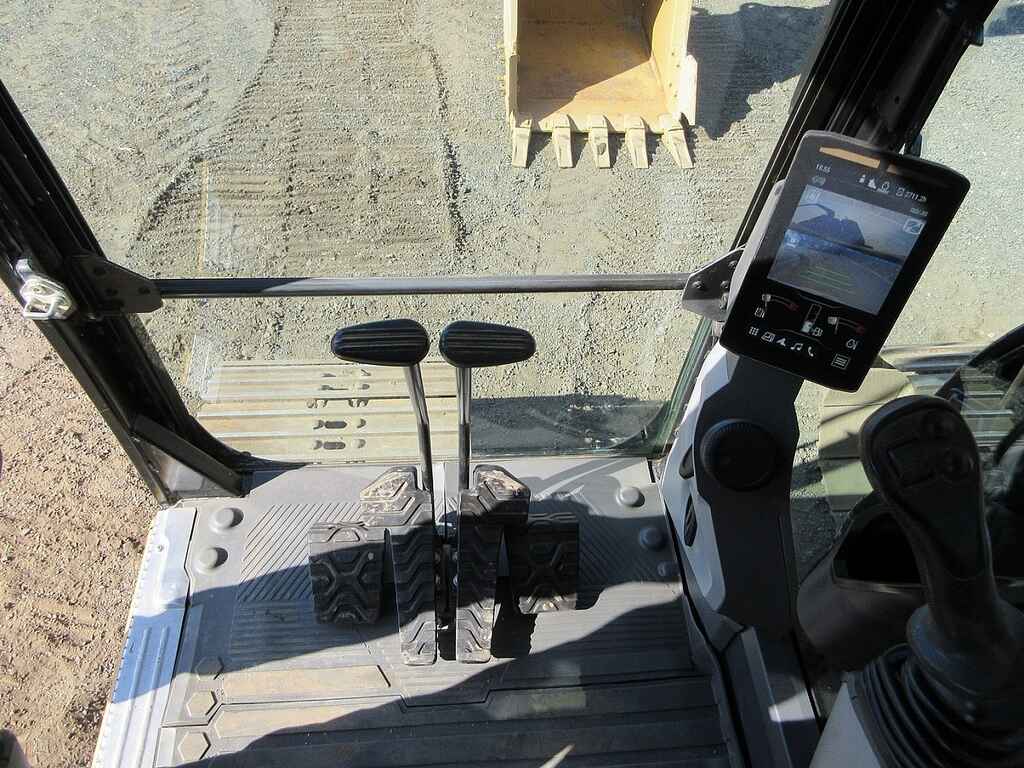

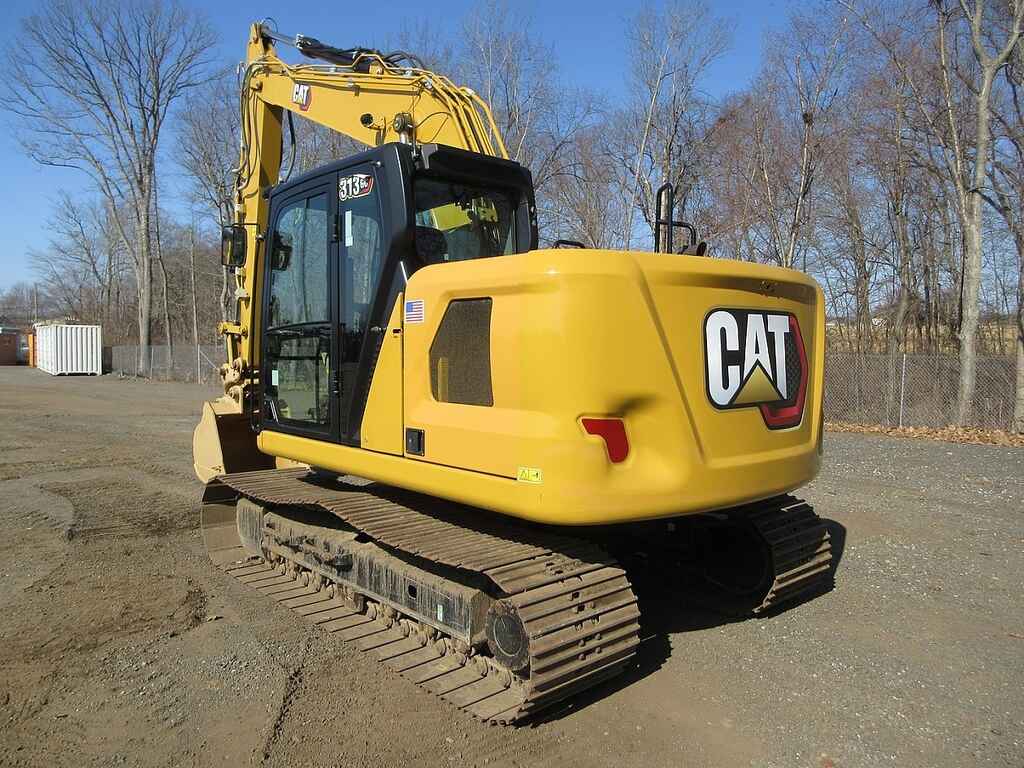

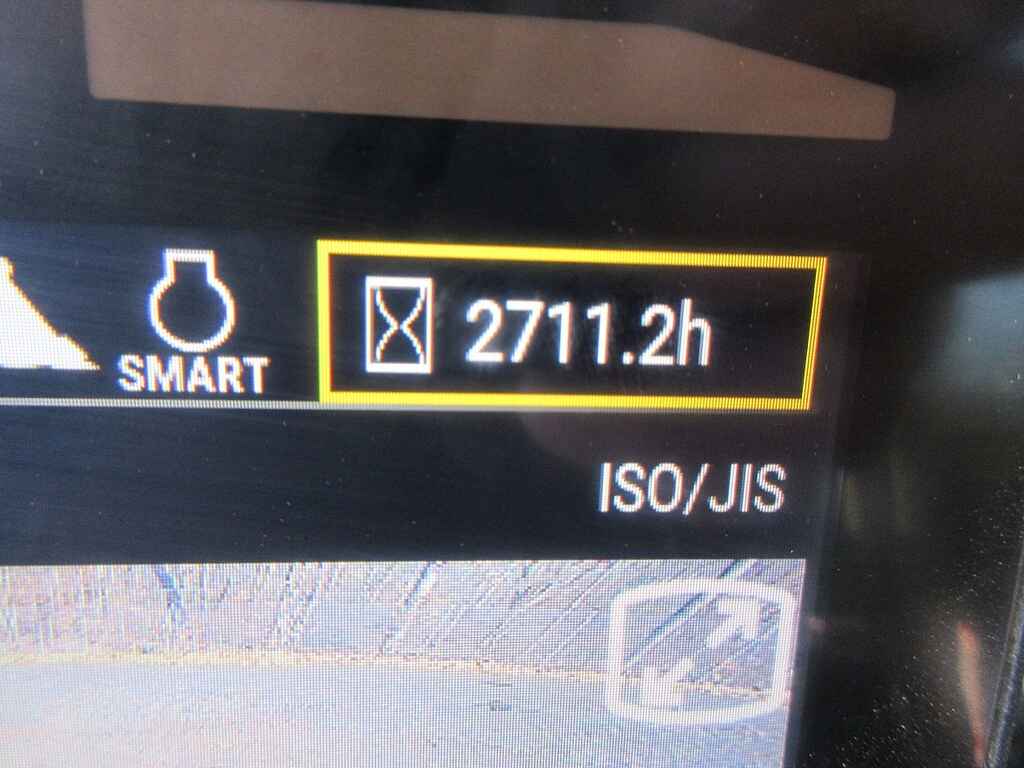

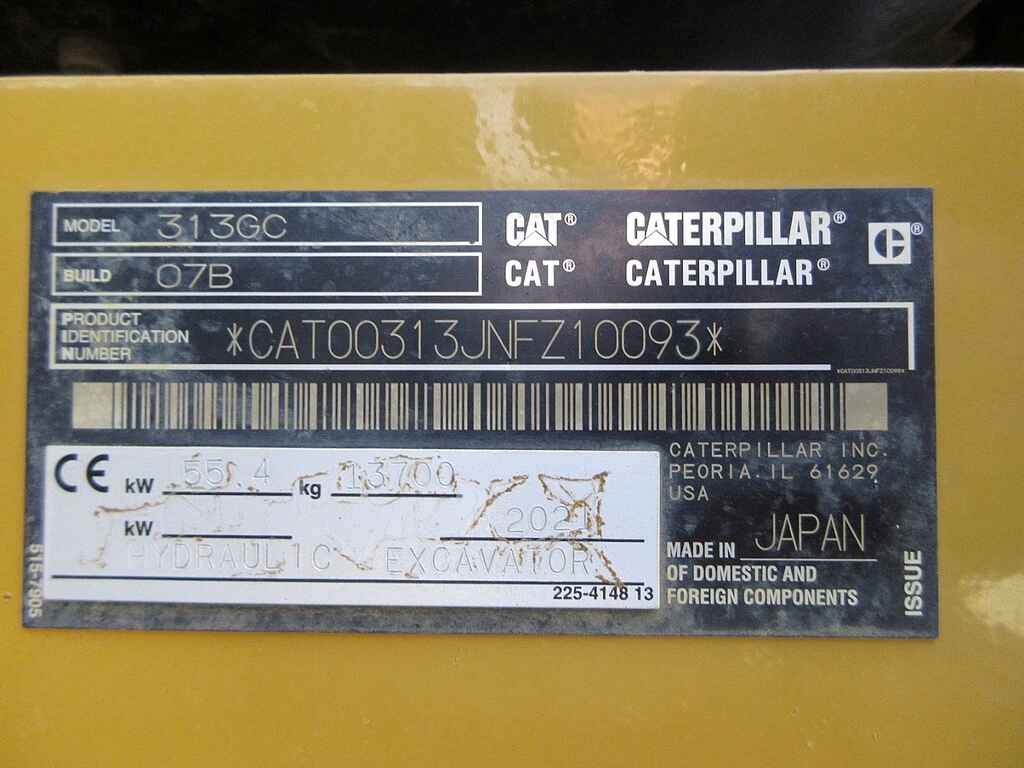

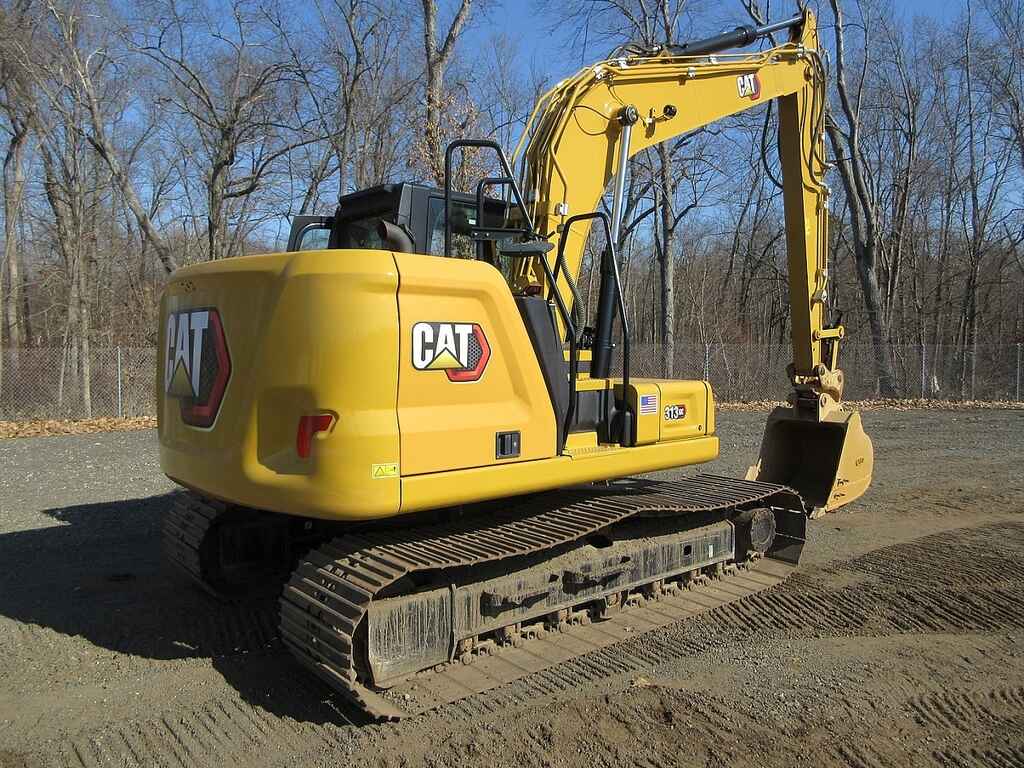

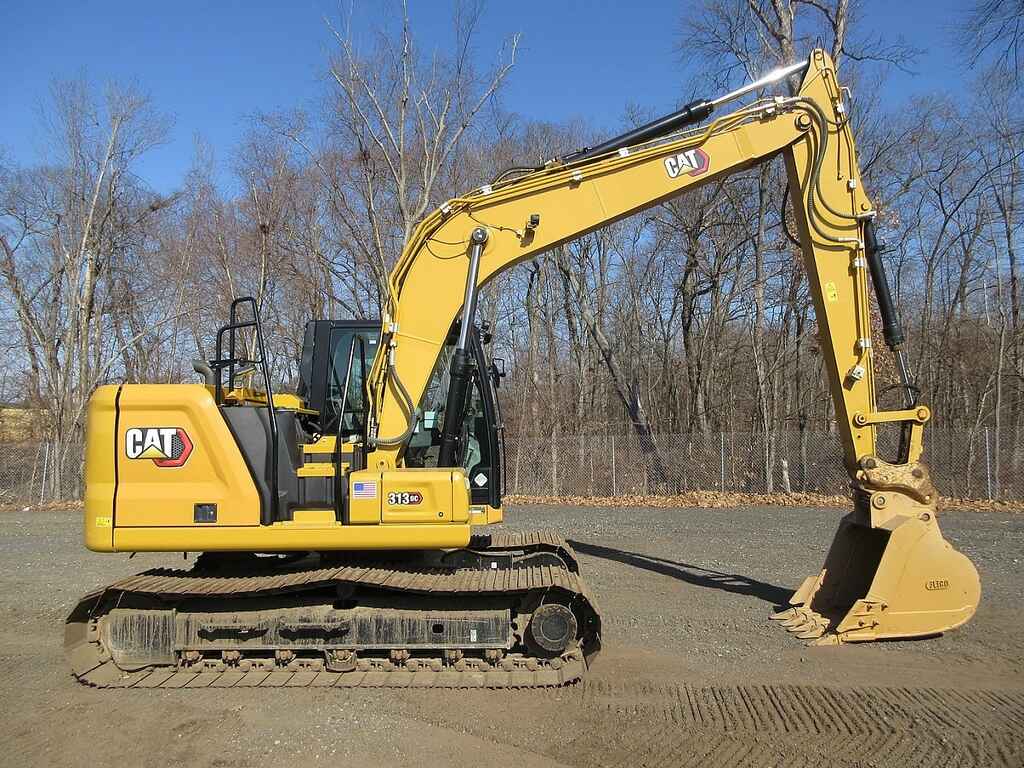

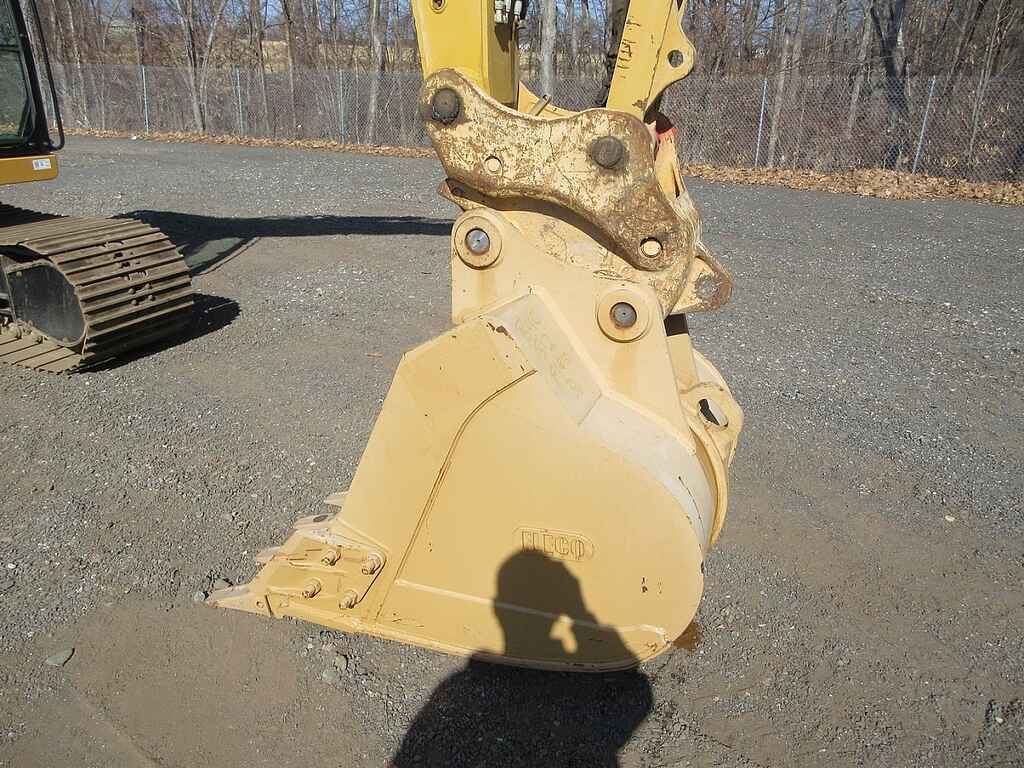

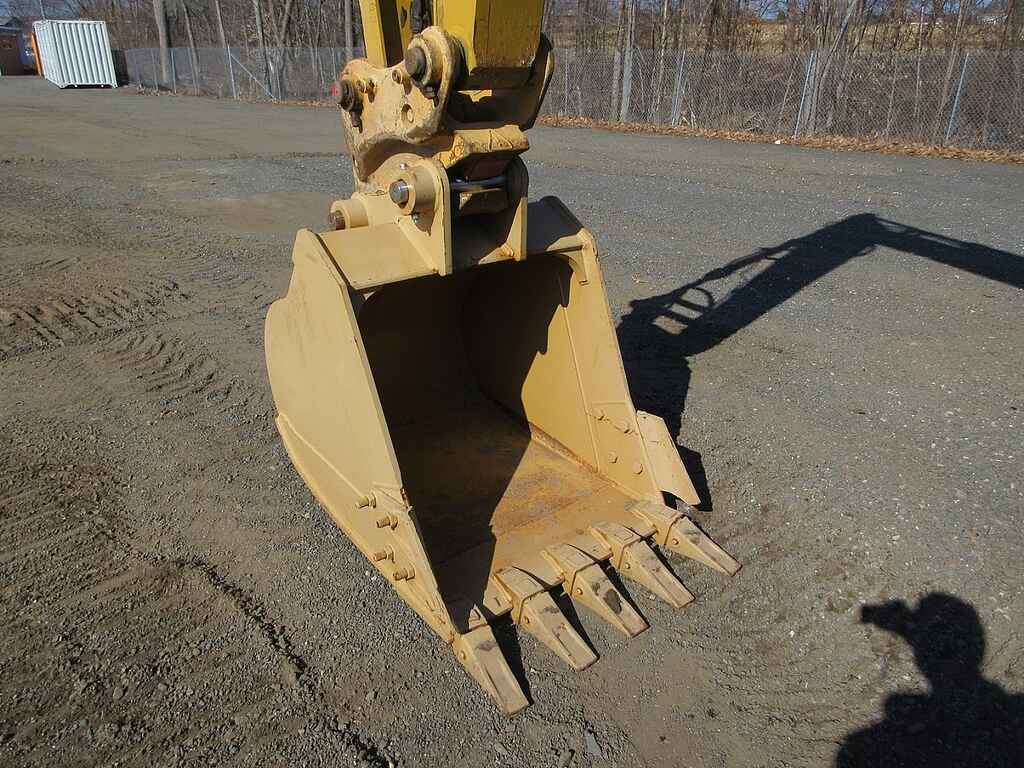

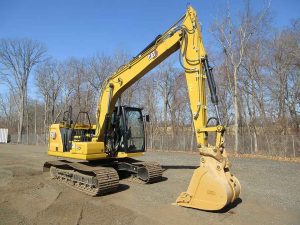

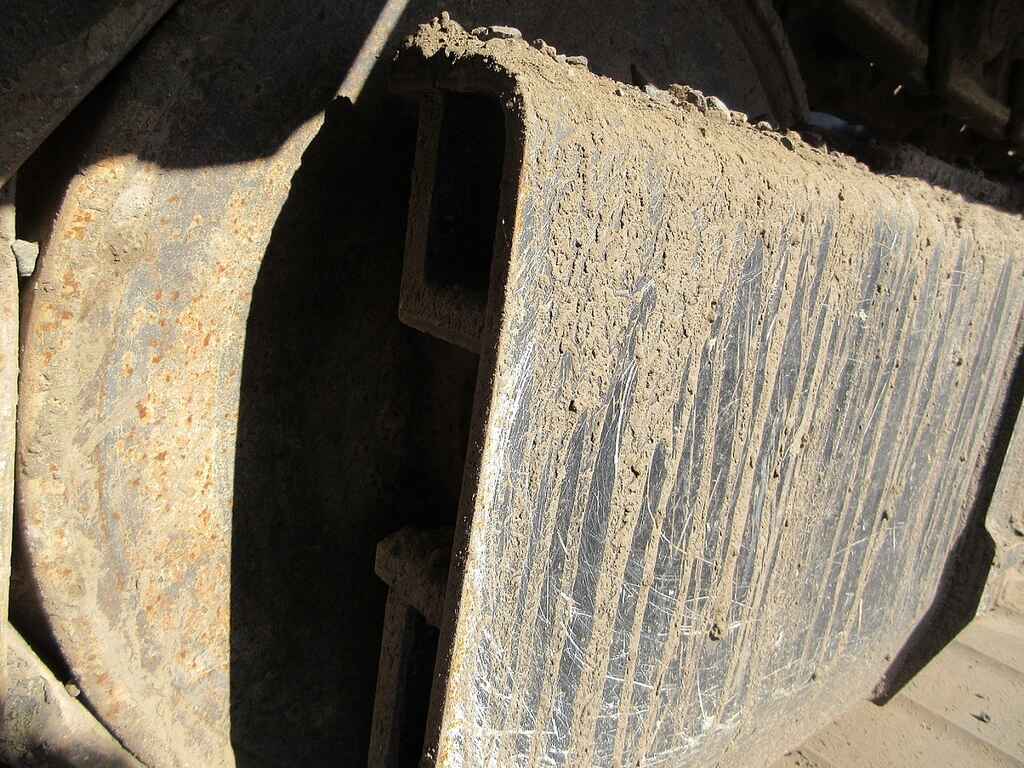

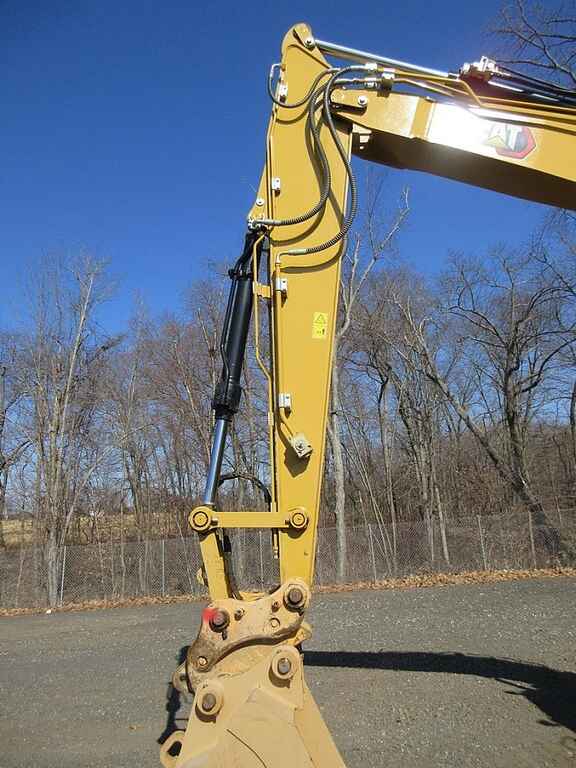

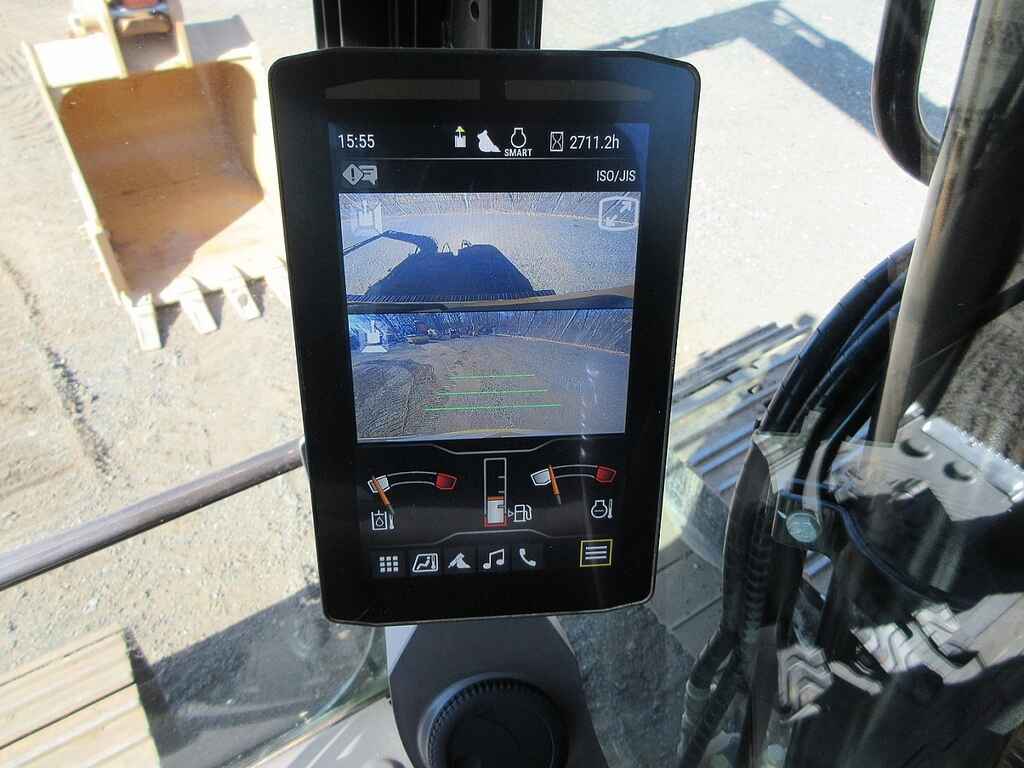

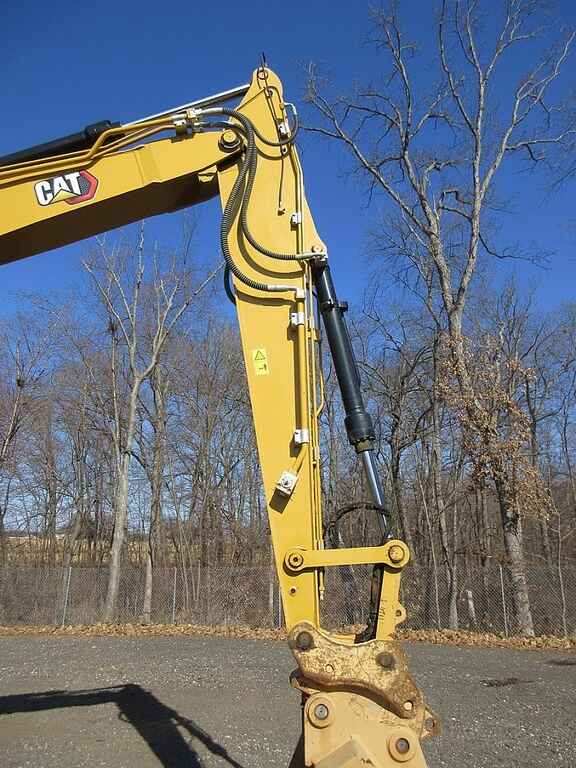

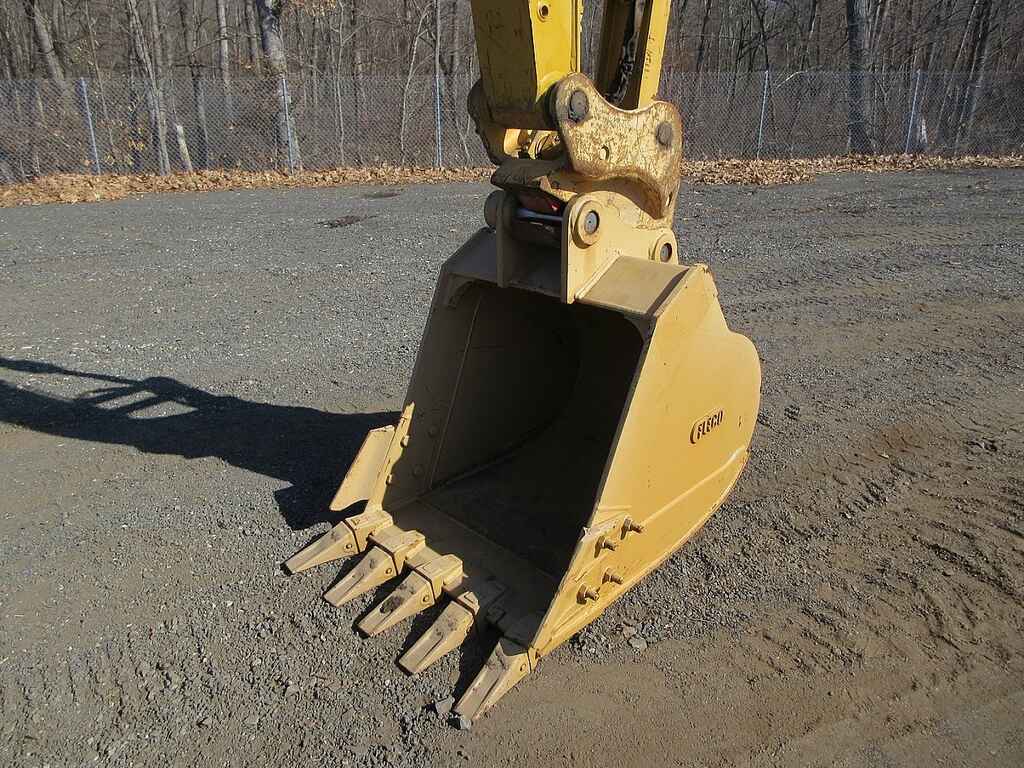

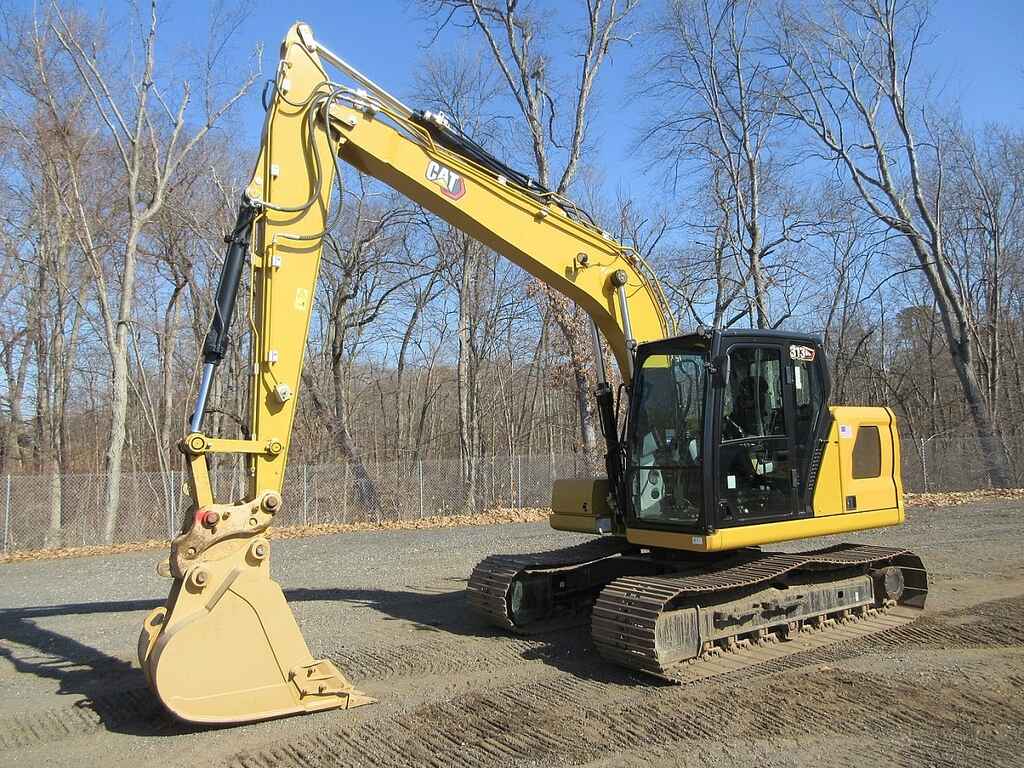

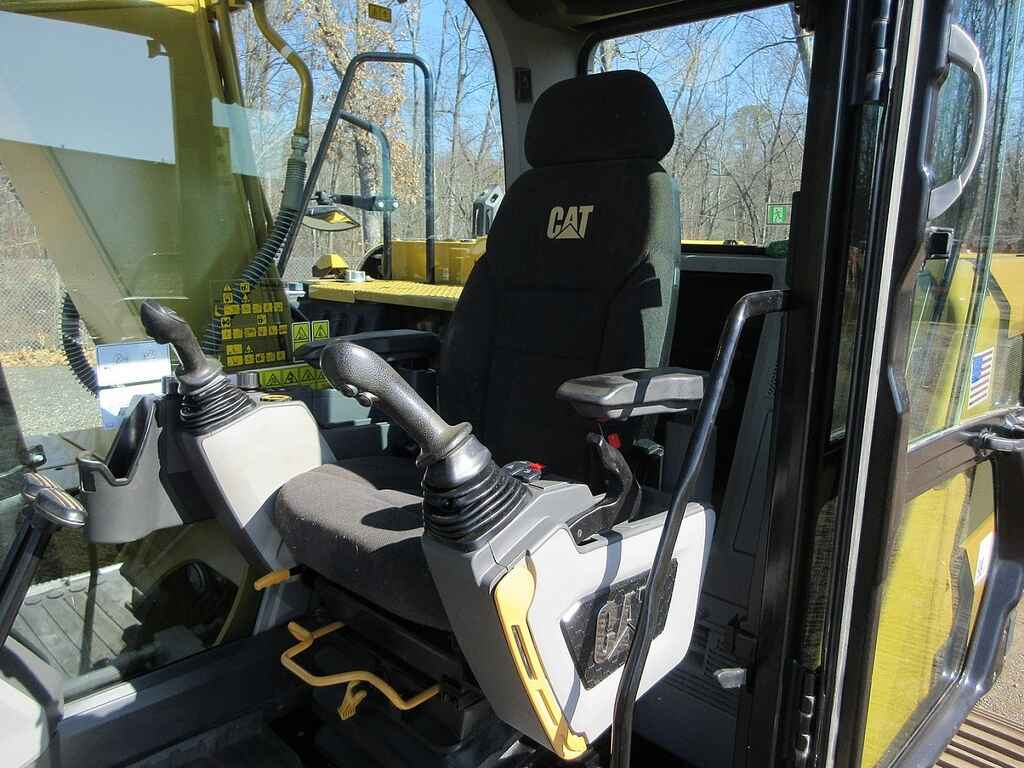

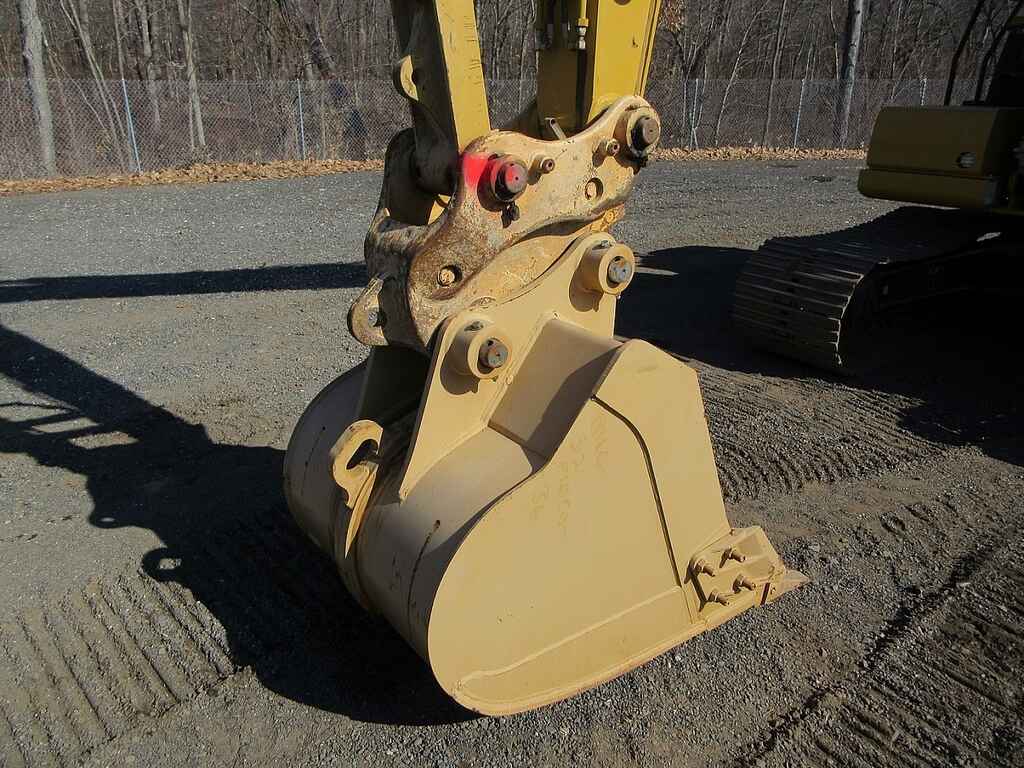

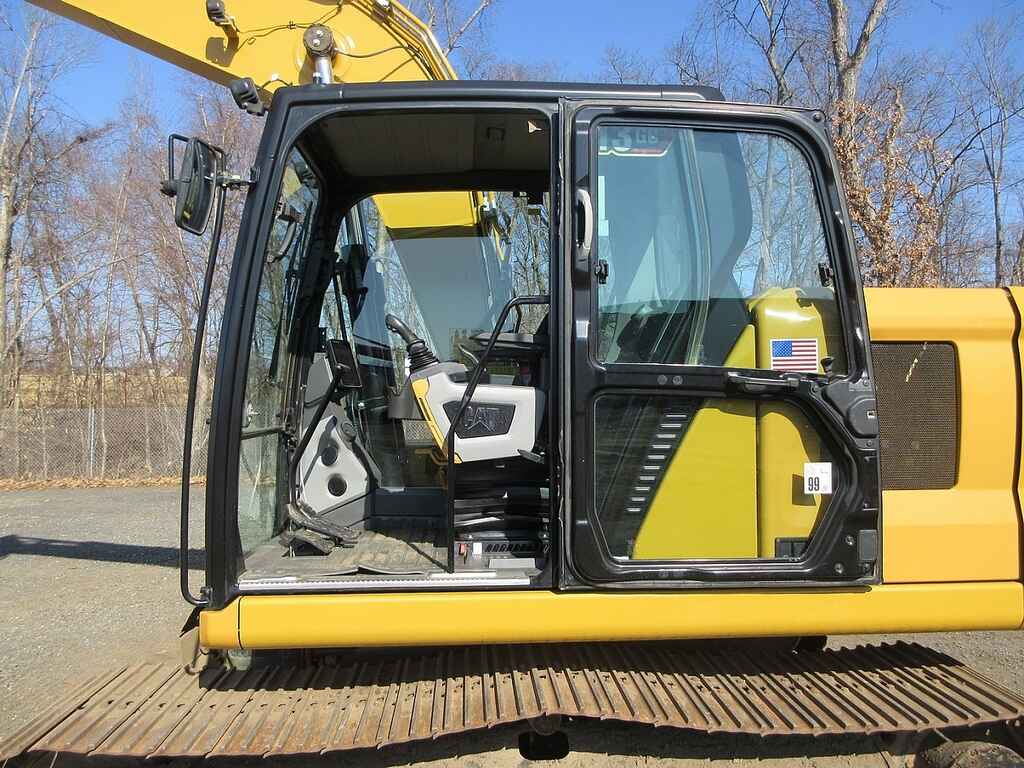

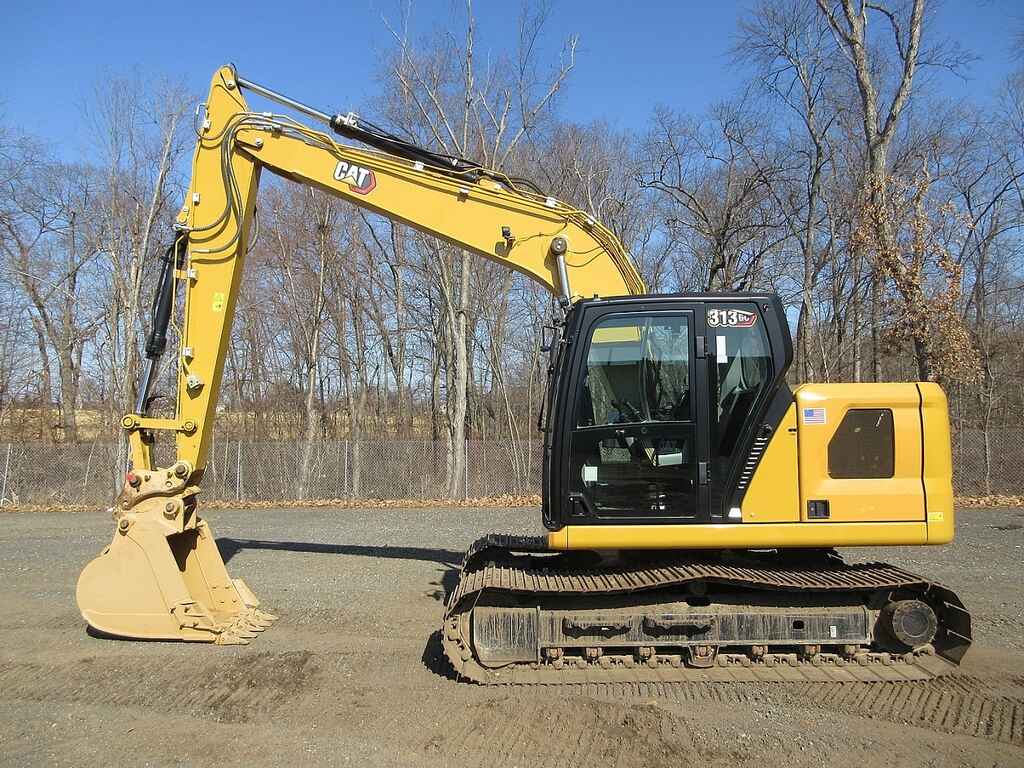

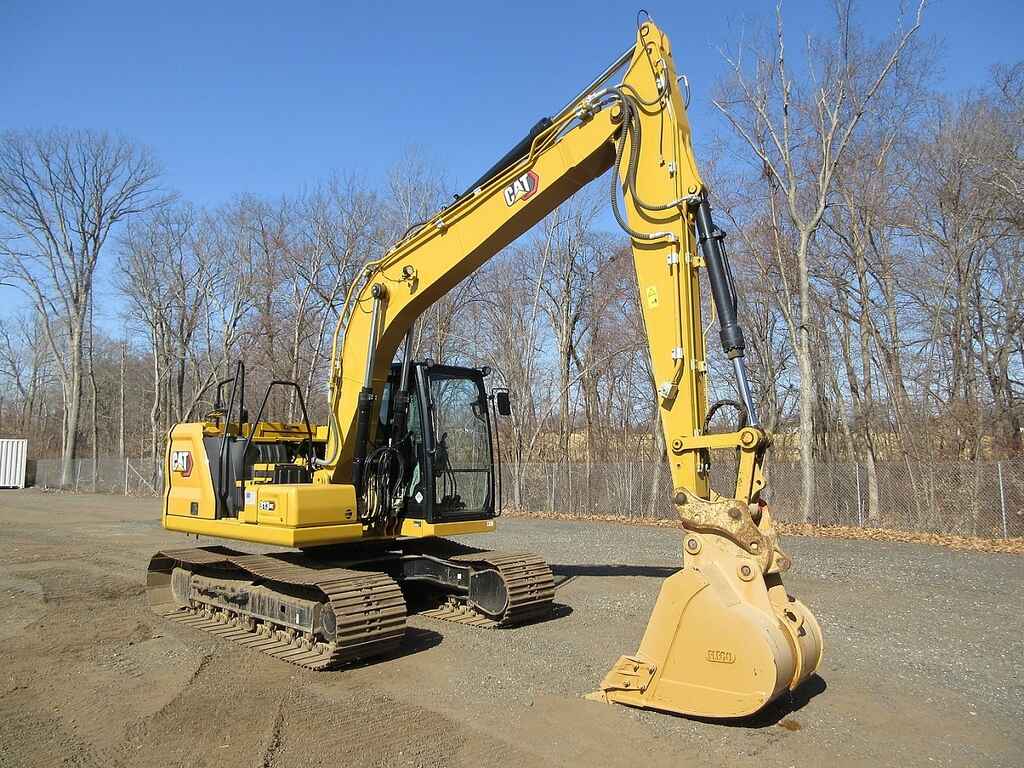

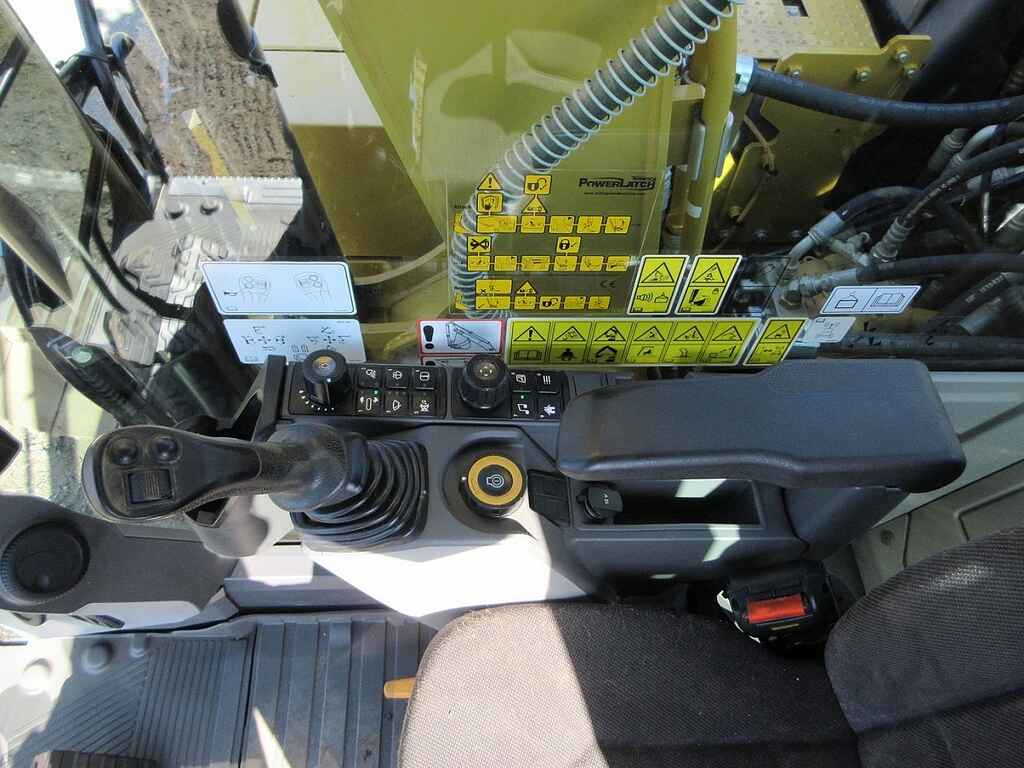

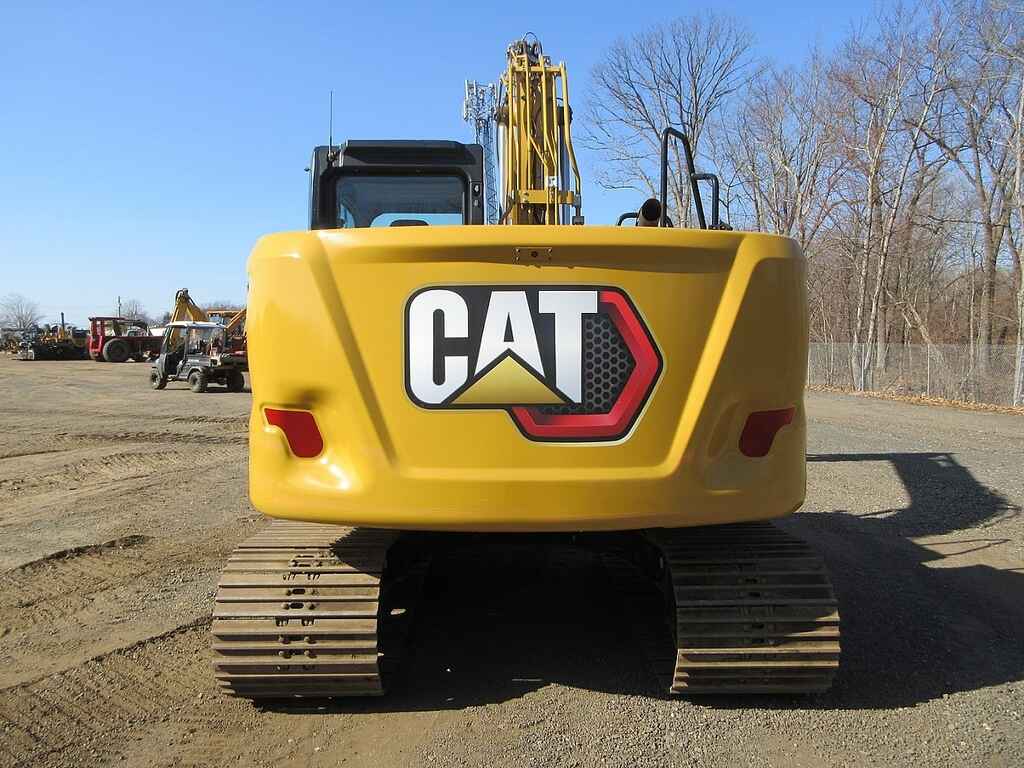

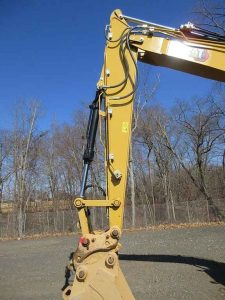

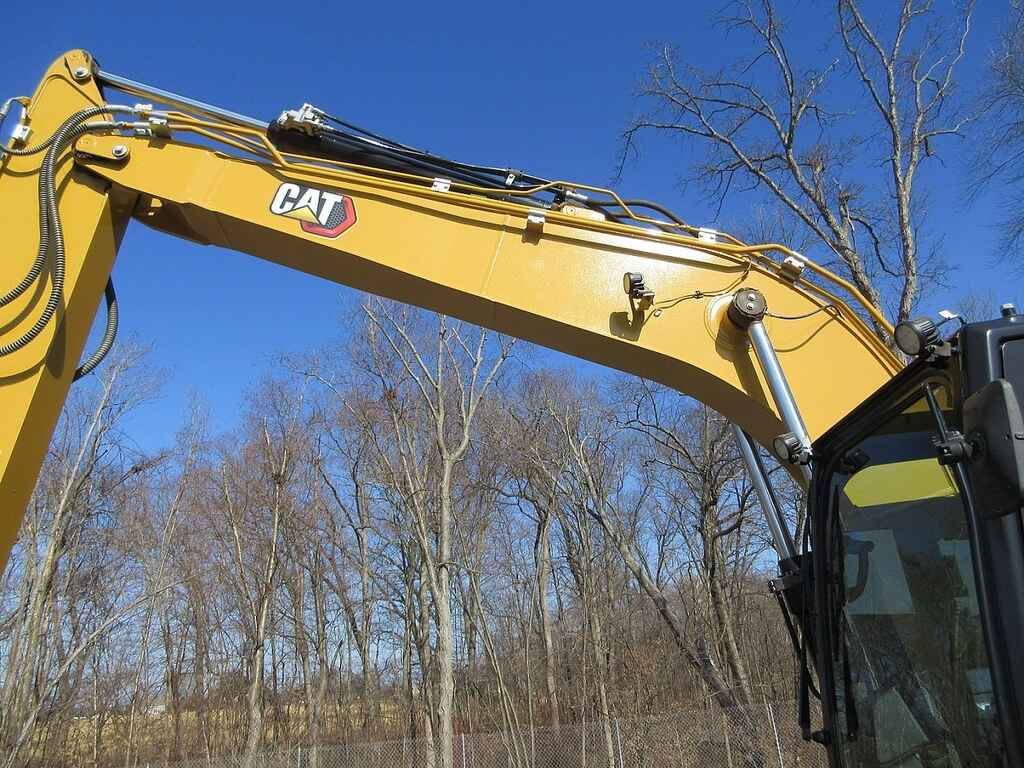

4 CYL CATERPILLAR TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, AUTO IDLE, 2 SPEED TRAVEL, KEYLESS START, SIDE AND REARVIEW CAMERAS, 28″ TRACK PADS, AUX HYD, 9′ 10″ STICK, HYD COUPLER, BUCKET WITH TEETH, METER READS 2711 HOURS, S/N CAT00313JNFZ10093
Machine Specifications
Dimensions
-
Ground Clearance: 1.45 ft
-
Height to Top of Cab: 9.06 ft
-
Length of Track on Ground: 12.31 ft
-
Tail Swing Radius: 7.16 ft
-
Removal Counterweight Clearance: 2.89 ft

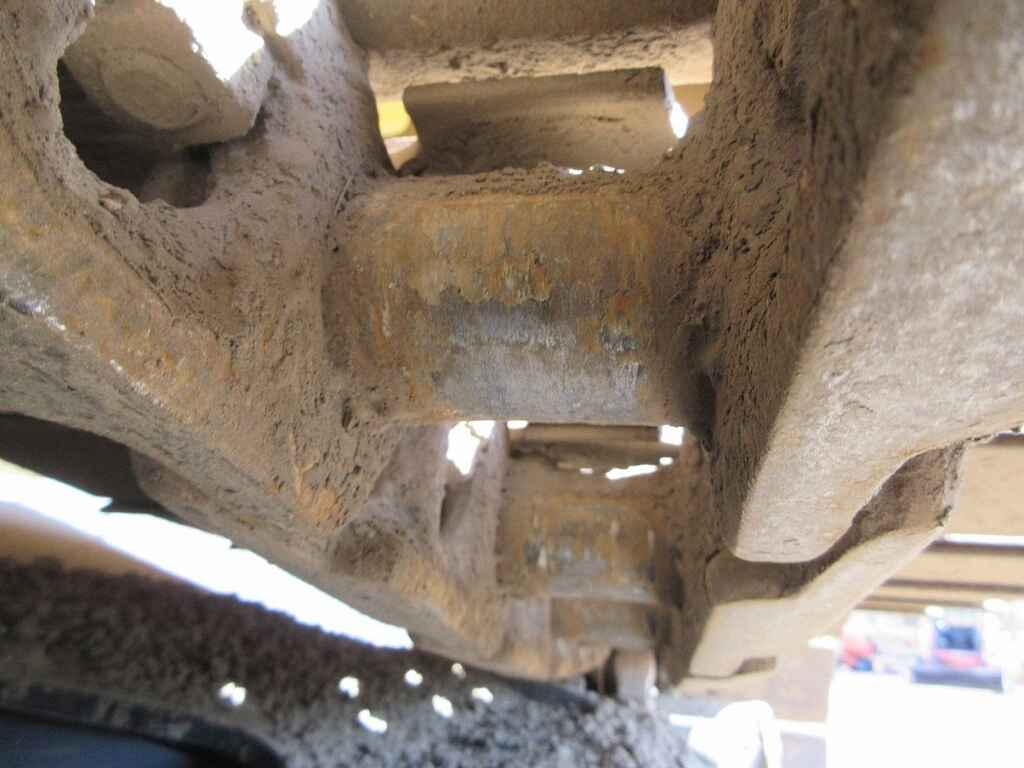

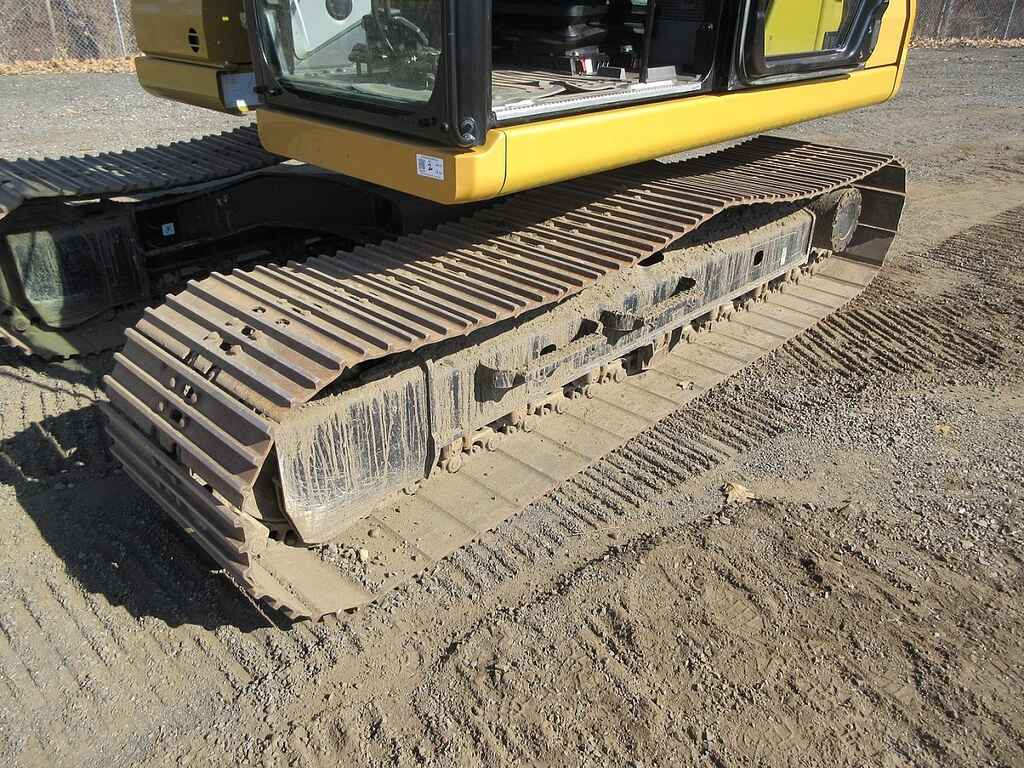

Undercarriage
-
Number of Carrier Rollers per Side: 1
-

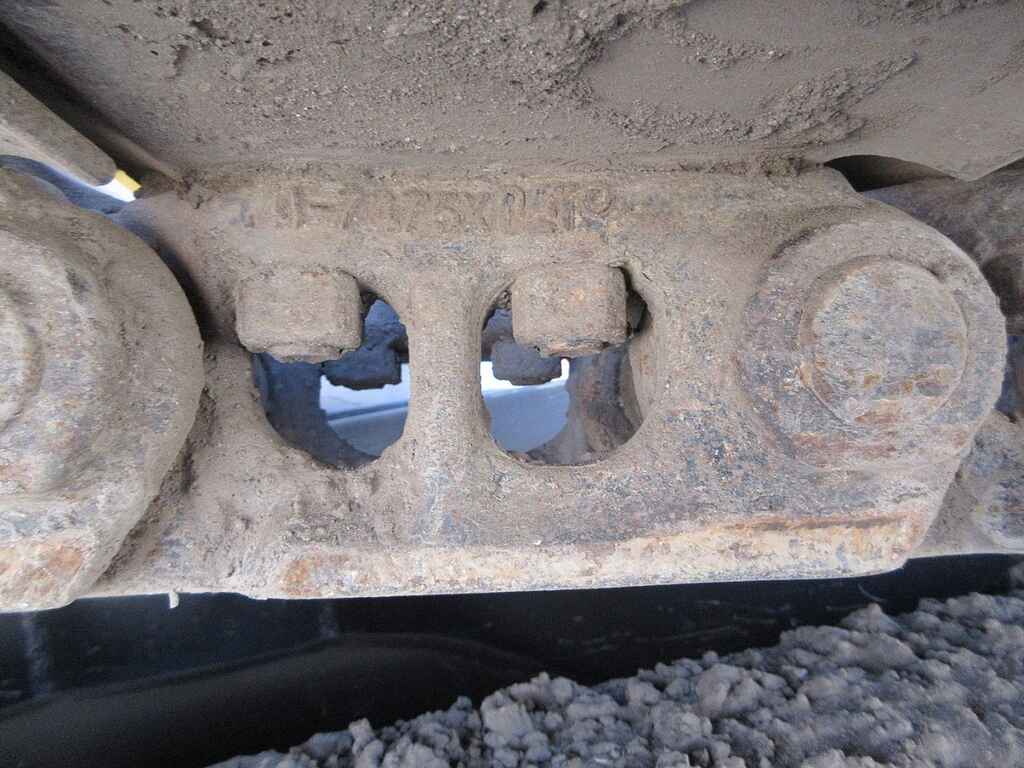

Number of Shoes per Side: 46
-

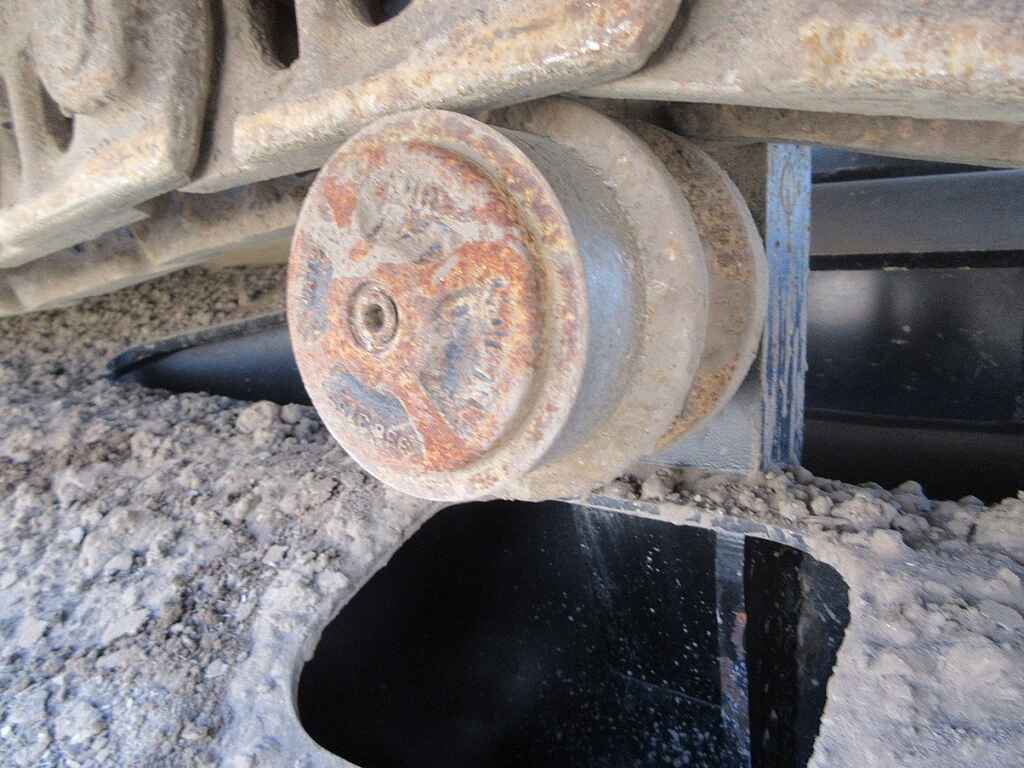

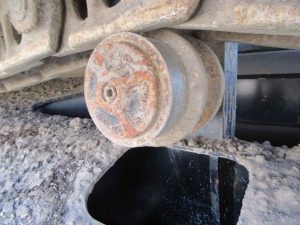

Number of Track Rollers per Side: 7
-
Max Travel Speed: 5.5 mph
-
Drawbar Pull: 24,706.51 lb

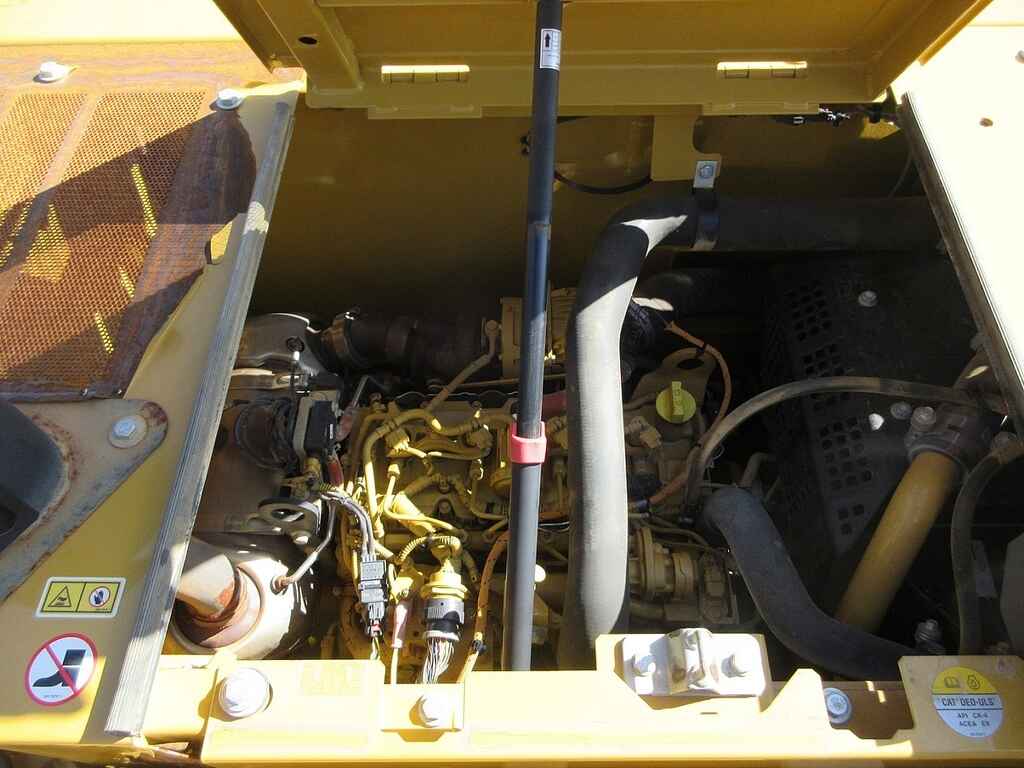

Engine
-
Engine Make: 2236
-
Engine Model: Cat C3.4B
-
Gross Power: 74 hp
-
Net Power: 70 hp
-
Displacement: 207 cu in
-
Bore: 3.9 in
-
Stroke: 4.4 in
-
Net Power (SAE J1349): 70 hp
-
Gross Power (SAE J1995): 74 hp
-
Flywheel Power: 70 hp
-
Engine RPM – Operation: 1700 rpm
-
Engine RPM – Travel: 1800 rpm
Operational
-
Operating Weight: 29,101.1 lb
-
Fuel Capacity: 66.1 gal
-
Cooling System Fluid Capacity: 4.8 gal
-
Hydraulic System Fluid Capacity: 43.4 gal
-
Engine Oil Capacity: 2.2 gal
-
Swing Drive Fluid Capacity: 0.8 gal

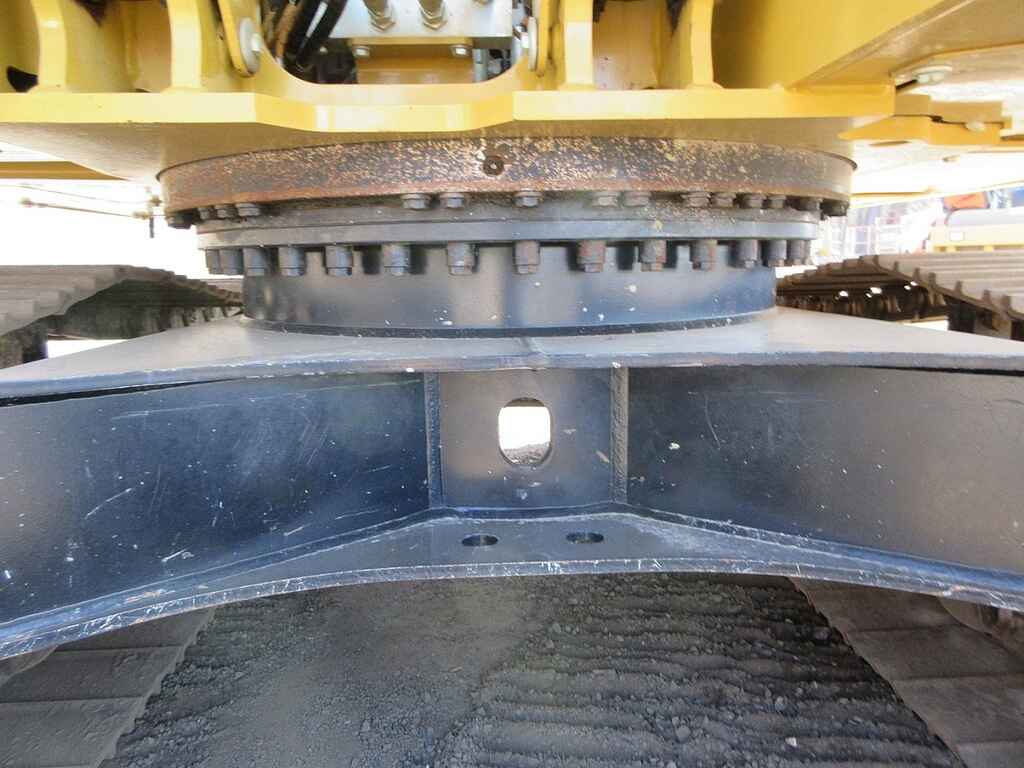

Swing Mechanism
-
Swing Torque: 22,791 lb-ft
-
Swing Speed: 11.7 rpm
Weights
-
Operating Weight: 29,300 lb
(Long Undercarriage, Reach Boom, R3.0 (9’10”) Stick, GD 0.69 yd³ Bucket, and 500 mm (20 in) Shoes) -
Maximum Operating Weight: 32,200 lb
-
Minimum Operating Weight: 29,300 lb
Blade
-
Blade Height: 25.2 in
-
Maximum Lowering Depth from Ground: 1.9 ft
-
Maximum Raising Height Above Ground: 3.3 ft
-
Approach Angle: 23.3 degrees
Hydraulic System
-
Pilot System – Max Pressure: 598 psi
-
Max Pressure – Travel: 4424 psi
-
Max Pressure – Swing: 3336 psi
-
Maximum Pressure – Equipment: 4424 psi
-
Main System – Max Flow – Total: 63.4 gal/min
-
Boom Cylinder Bore: 4 in
-
Boom Cylinder Stroke: 40 in
-
Stick Cylinder Bore: 5 in
-
Stick Cylinder Stroke: 47 in
-
Bucket Cylinder Bore: 4 in
-
Bucket Cylinder Stroke: 37 in
Service Refill Capacities
-
Cooling System: 4.7 gal
-
Hydraulic Tank: 23.9 gal
-
Hydraulic System (Including Tank): 43.3 gal
-
Engine Oil: 2.1 gal
-
Fuel Tank Capacity: 66 gal
-
Swing Drive: 0.8 gal
-
Final Drive: 0.8 gal
Sound Levels
-
Inside Cab (ISO 6396): 72 dB(A)
-
Exterior (ISO 6395): 99 dB(A)
Standards
-
Cab – ROPS: ISO 12117-2:2008
-
Brakes: ISO 10265
-
Cab – OPG (Operator Protective Guards): ISO 10262:1998 Level 2 / SAE J1356 MAR2013

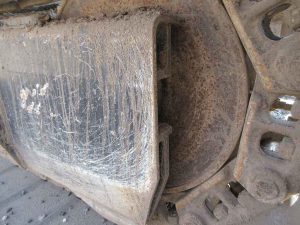

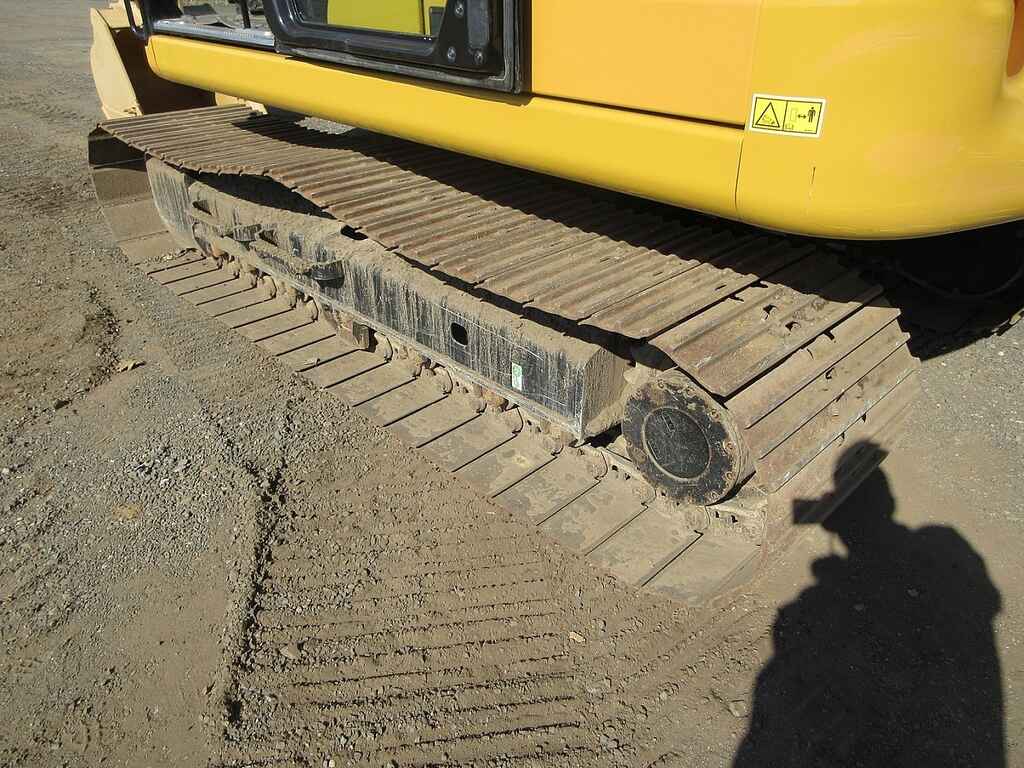

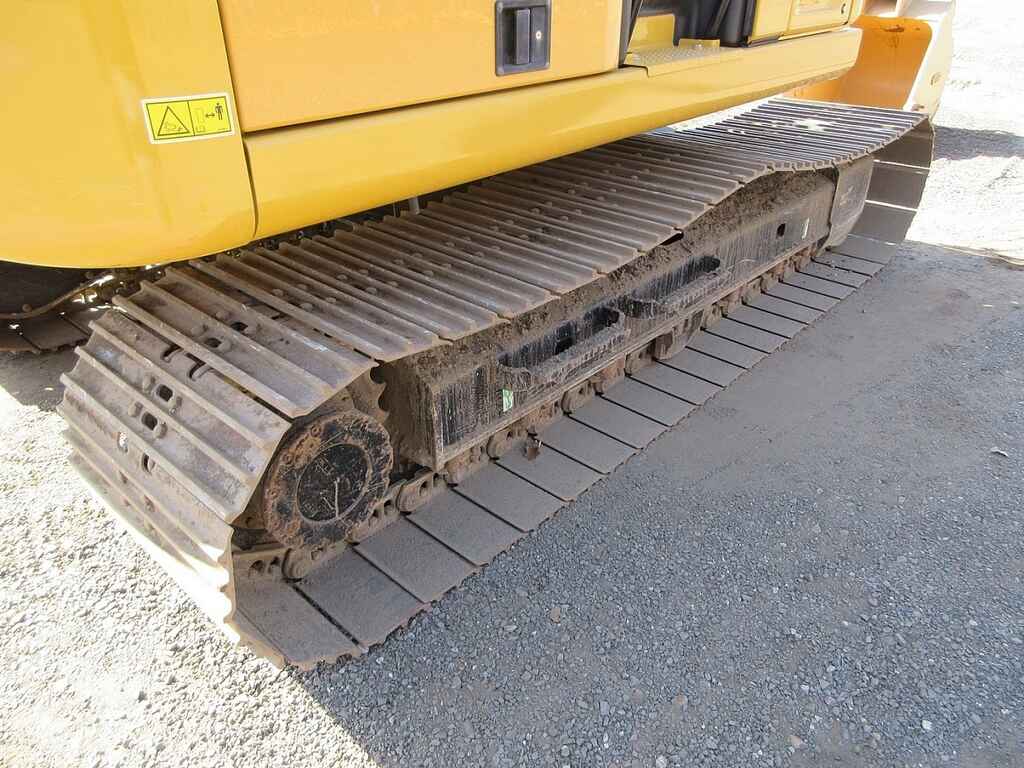

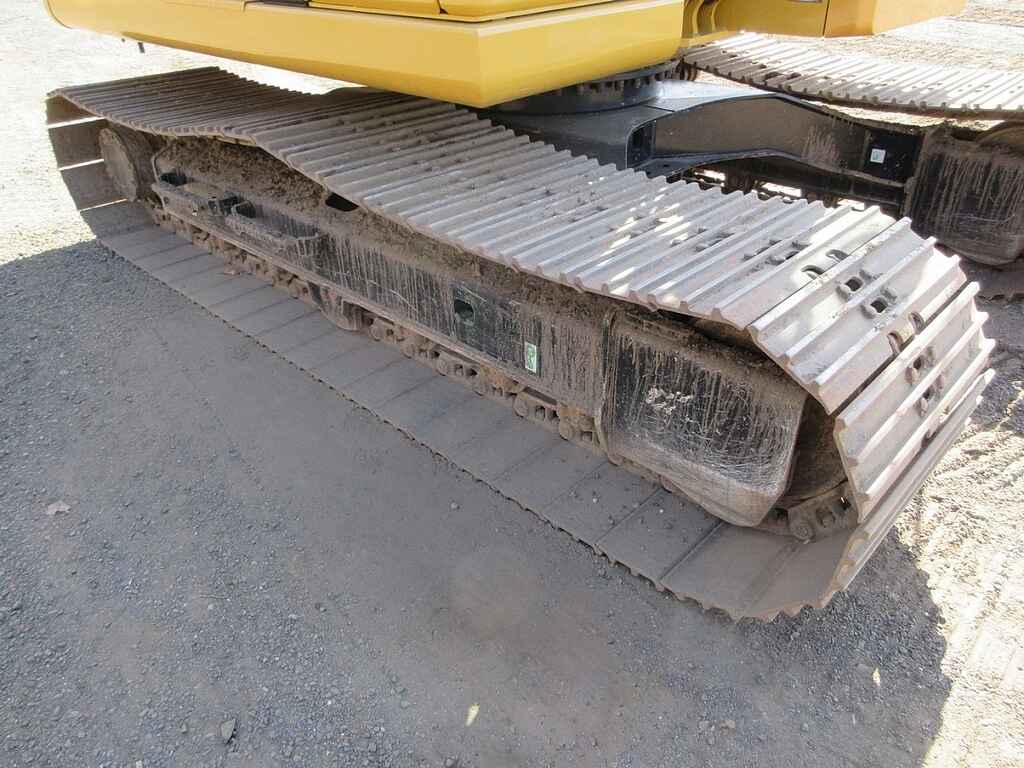

Track
-

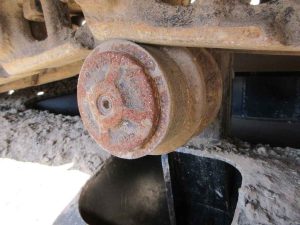

Number of Carrier Rollers (Each Side): 1 piece
-
Number of Track Rollers (Each Side – Long Undercarriage): 7 pieces
-
Number of Shoes (Each Side – Long Undercarriage): 46 pieces

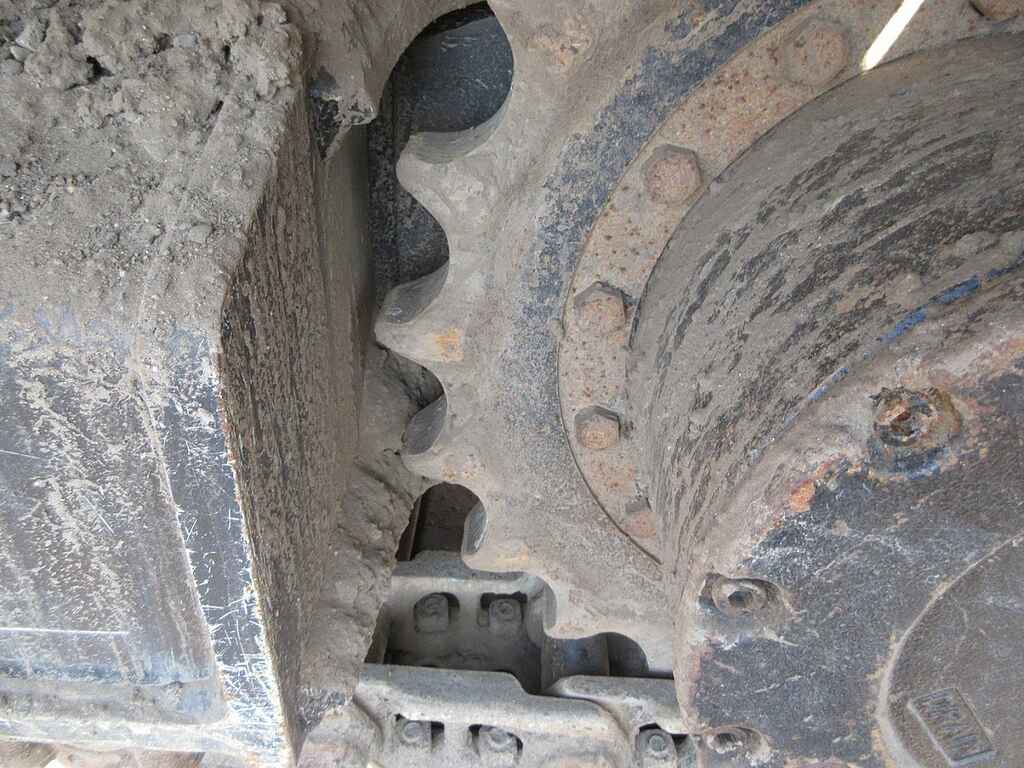

Drive
-
Maximum Travel Speed: 3.4 mph
-
Maximum Drawbar Pull: 24,706 lb
