PRICE FIRM NO TAX OR FEES
6M/1500Hr FULL Warranty! Buy with confidence! Machine was just fully cleaned, greased, serviced and looked over. Photos just taken. Delivery available!
– 2,548 hours

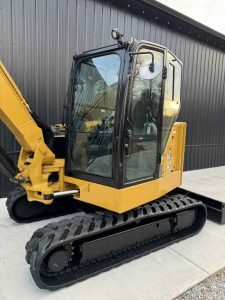

– Enclosed HEAT/AC/RADIO
– Rear Camera

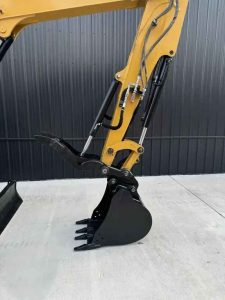

– Hydraulic Thumb
– Joystick Steer!
– Hydraulic Quick Coupler

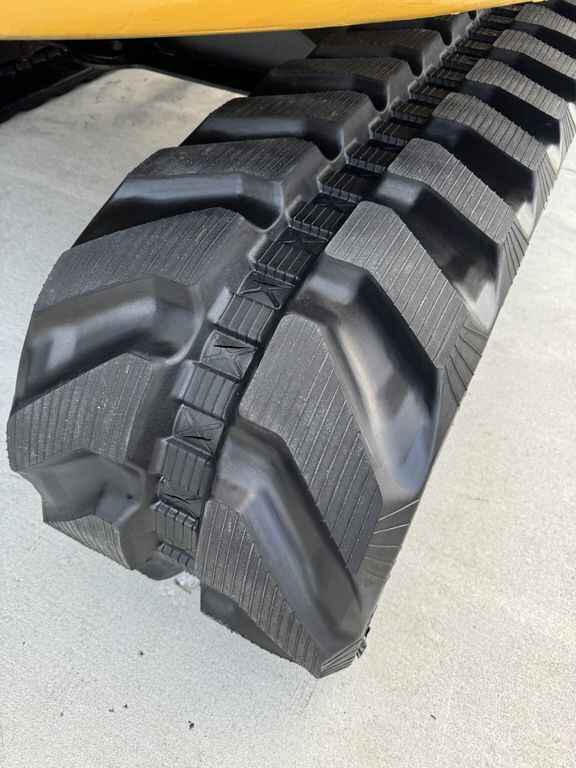

– BRAND NEW TRACKS!
– 2 speed
– 24” Tooth Bucket
– No leaks, No smoke, No issues
– 56Hp
– 16k Lbs
Machine READY TO WORK
Engine
Model: C3.3B (Stage V)
Gross Power: 74.3 hp (55.4 kW)
Net Power: 73.9 hp (55.1 kW)
Displacement: 202.1 in³ (3.3 L)
Fuel Capacity: 25.6 gal (97.0 L)
Weights
Operating Weight: 16,000 lbs (8,490 kg)
Max Travel Speed: 5.4 mph (8.7 km/h)
Performance
Dig Depth: 13 ft 4 in (4.07 m)
Max Reach at Ground Level: 21 ft 4 in (6.50 m)
Max Dump Height: 15 ft 5 in (4.70 m)
Bucket Breakout Force: 11,802 lbf (52.5 kN)
Stick Breakout Force: 8,548 lbf (38.0 kN)
Hydraulics
Hydraulic System Capacity: 35.4 gal (134 L)
Hydraulic System Pressure (Main): 5,070 psi (35.0 MPa)
Auxiliary Hydraulics (Standard Flow): 27.1 gal/min (102.4 L/min)
Dimensions
Overall Length: 20 ft 10 in (6.35 m)
Overall Width: 7 ft 6 in (2.30 m)
Height to Top of Cab: 8 ft 5 in (2.57 m)
Tail Swing Radius: 4 ft 5 in (1.34 m)
Ground Clearance: 1 ft 2 in (0.35 m)
Track System
Track Width: 18 in (450 mm)
Track Length: 8 ft 2 in (2.49 m)
Ground Pressure: 5.7 psi (39.2 kPa)
