-EROPS
-AC/Heat
-Backfill blade
-4ft. 11in. Stick
-Auxiliary hydraulics
-15.5in. TBG pads

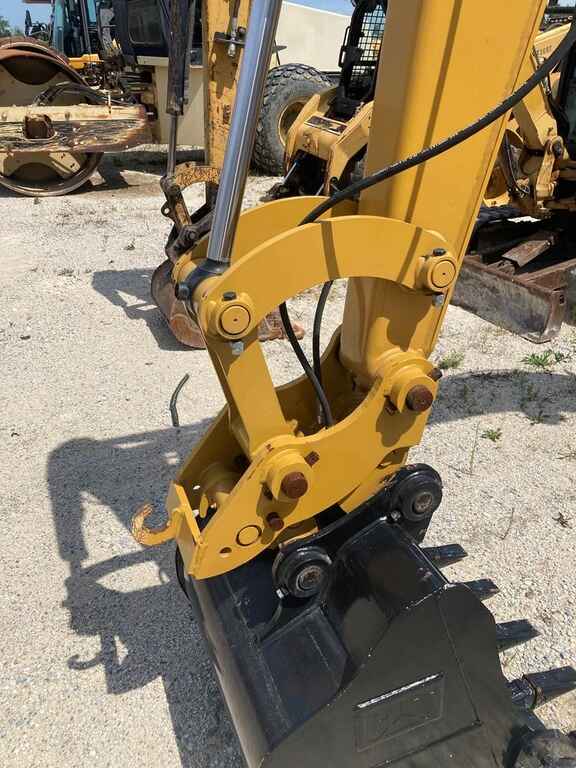

-Hydraulic quick coupler
-26in. Digging bucket
Engine
- Engine Model: Cat C2.4 DI
- Net Power: 31.1 kW (41.7 hp)
- Stroke: 102.4 mm (4.0 inches)
- Gross Power – 2,400 rpm – SAE J1995: 34.1 kW (45.7 hp)
- Net Power – 2,400 rpm – ISO 9249/SAE J1349: 31.1 kW (41.7 hp)
- Displacement: 2.4 L (146.5 cu in)
- Bore: 87 mm (3.4 inches)
Weights
- Operating Weight: 5400 kg (11,905 lbs)
- Operating Weight – With Cab: 5400 kg (11,905 lbs)
- Note: Weight includes counterweight, steel tracks, 0.22 m³ bucket, operator.
Dimensions
- Ground Clearance: 628 mm (24.7 inches)

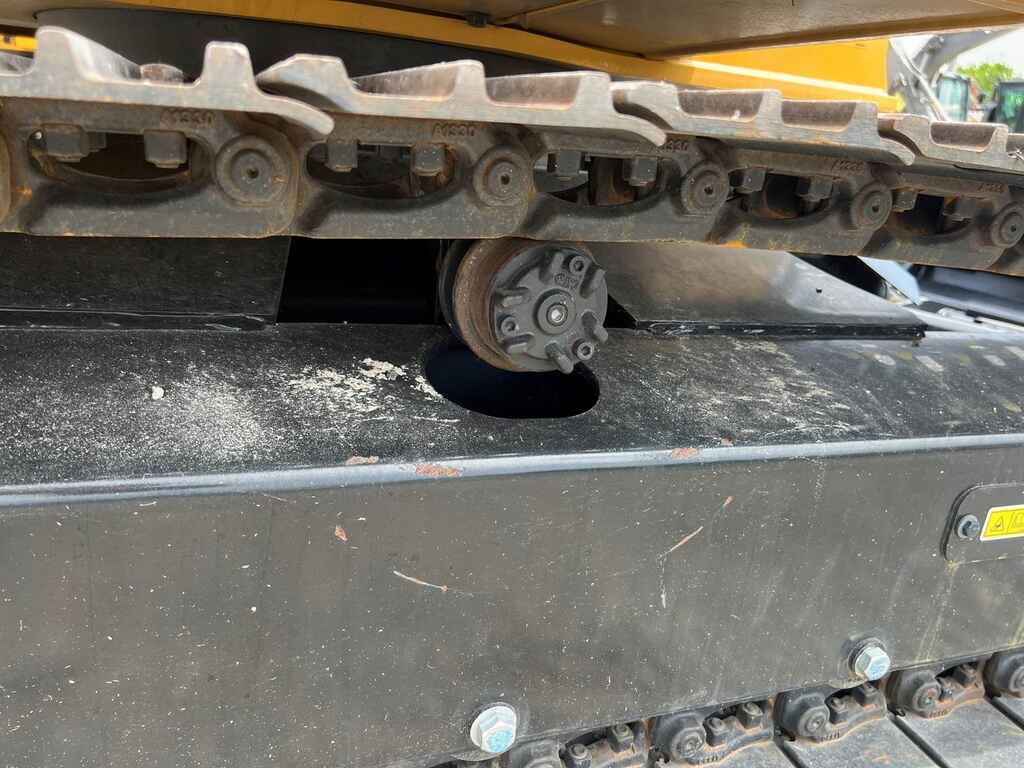

- Track Length: 2440 mm (96.1 inches)
- Shipping Height: 2540 mm (100 inches)
- Transport Width: 1950 mm (76.8 inches)
- Tail Swing Radius: 1580 mm (62.2 inches)
- Track Gauge: 1550 mm (61 inches)
- Length – Center of Rollers: 1920 mm (75.6 inches)
- Track Shoe Width: 400 mm (15.7 inches)
- Shipping Length: 5765 mm (226.4 inches)
Hydraulic System
- Operating Pressure – Equipment: 25000 kPa (3,626 psi)
- Digging Force – Bucket: 35 kN (7,869 lbf)
- Operating Pressure – Travel: 25000 kPa (3,626 psi)
- Pump Flow at 2,400 rpm: 140 l/min (37 GPM)
- Digging Force – Stick: 27.2 kN (6,121 lbf)
- Type (1): Load Sensing Hydraulics with Variable Displacement Piston Pump
- Type (2): Cat
- Operating Pressure – Swing: 21600 kPa (3,137 psi)
Swing System
- Swing Torque: 13.9 N·m (10,249 ft-lbf)
- Machine Swing Speed: 10.5 min-1 (10.5 RPM)
Blade
- Width: 1950 mm (76.8 inches)
- Height: 360 mm (14.2 inches)
- Dig Depth: 480 mm (18.9 inches)
- Lift Height: 365 mm (14.4 inches)
Service Refill Capacities
- Cooling System: 9.8 L (2.6 gal)
- Engine Oil: 9.5 L (2.5 gal)
- Hydraulic Tank: 58 L (15.3 gal)
- Fuel Tank: 78 L (20.6 gal)
- Hydraulic System: 85 L (22.5 gal)
Working Ranges
- Maximum Reach – Ground Line: 5830 mm (229.9 inches)
- Maximum Reach: 5955 mm (234.9 inches)
- Maximum Depth: 3720 mm (146.5 inches)
- Maximum Digging Height: 5460 mm (214.6 inches)
- Maximum Dump Height: 3835 mm (151.6 inches)
- Maximum Vertical Wall: 2210 mm (87.0 inches)
Front
- Boom Length: 3200 mm (126.0 inches)
- Stick Length: 1500 mm (59.1 inches)
Travel System
- Travel Speed – Low: 2.8 km/h (1.7 mph)
- Travel Speed – High: 4.3 km/h (2.7 mph)
- Gradeability – Maximum: 25°
- Maximum Traction Force – High Speed: 40.2 kN (9,035 lbf)
Bucket
- Bucket Width: 766 mm (30.2 inches)
- Bucket Capacity: 0.22 m³ (0.29 yd³)
