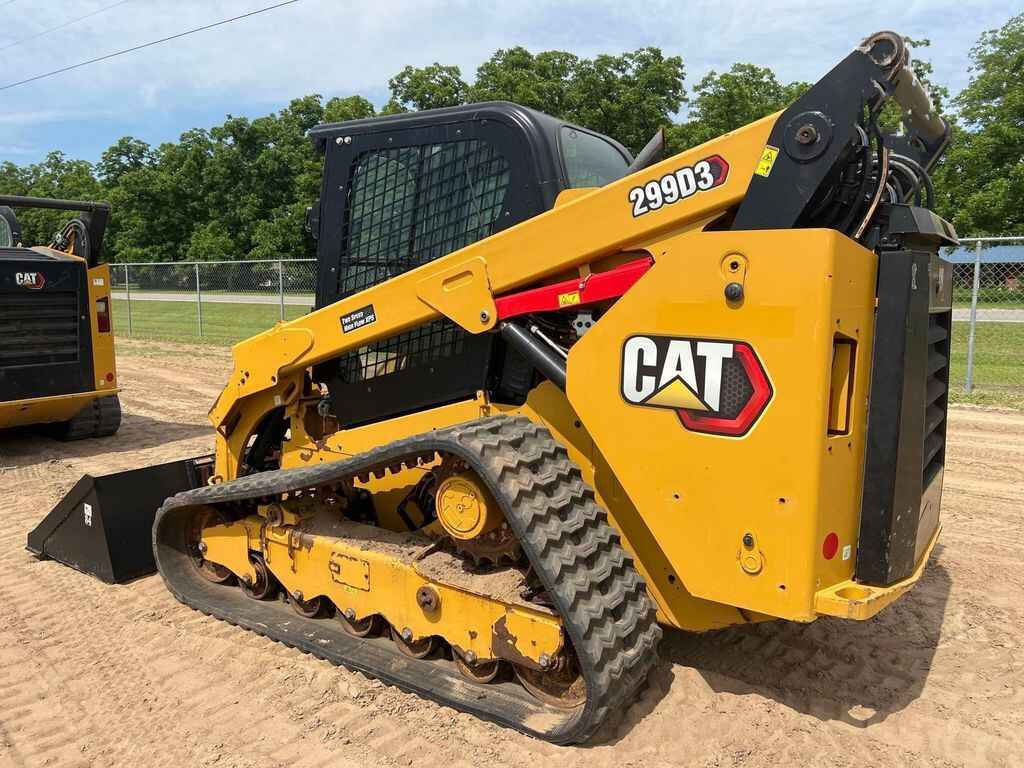

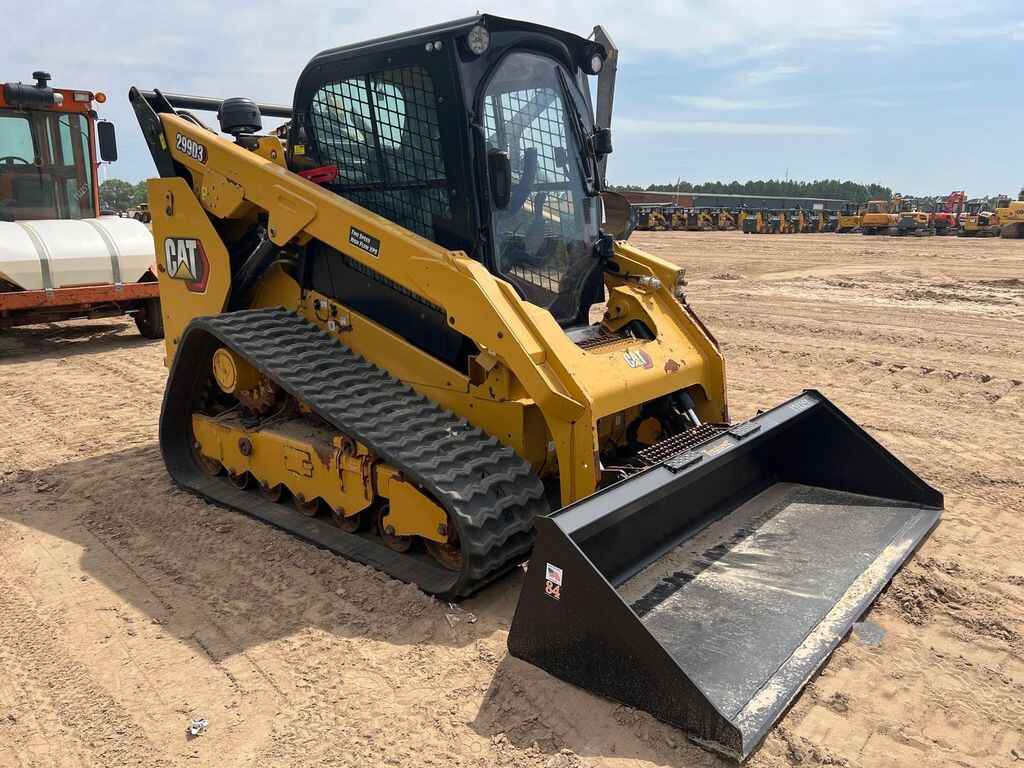

RUBBER TRACK, 2SPD, HIGH FLOW XPS, HYD QUICK ATTACH BUCKET, AUX VALVES, SN- CAT0299DPDY905378 (HRS SHOW – 3027)
Engine
- Model: Cat C3.8 DIT (turbo)
- Gross Power: 98 hp (73 kW)
- Net Power: 95 hp (71 kW)
- Displacement: 232 in³ (3.8 L)
Weights
- Operating Weight: 11,464 lbs (5,200 kg)
Performance
- Rated Operating Capacity (35% tipping load): 3,480 lbs (1,580 kg)
- Tipping Load: 9,945 lbs (4,511 kg)
- Breakout Force, Tilt Cylinder: 7,270 lbs (3,298 kg)
- Ground Contact Area: 2,475 in² (1.597 m²)
- Ground Pressure: 4.6 psi (31.7 kPa)
Hydraulics
- Standard Flow: 23 gal/min (86 L/min)
- High Flow (optional): 30.5 gal/min (115.5 L/min)
- System Relief Pressure: 3,335 psi (23,000 kPa)
Dimensions
- Length with Bucket on Ground: 146.2 in (3,715 mm)
- Width over Tracks: 78.0 in (1,981 mm)
- Height to Top of Cab: 83.1 in (2,111 mm)
- Ground Clearance: 9.6 in (244 mm)
- Departure Angle: 31°
- Maximum Dump Angle: 52°
- Bucket Pin Height at Maximum Lift: 124.0 in (3,150 mm)
Features
- Vertical Lift Design: Provides extended reach and lift height for quick and easy truck loading.

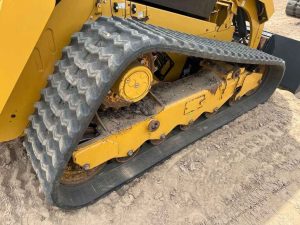

- Suspended Undercarriage System: Offers superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.
- Sealed and Pressurized Cab: Ensures a cleaner and quieter operating environment with excellent work tool visibility.

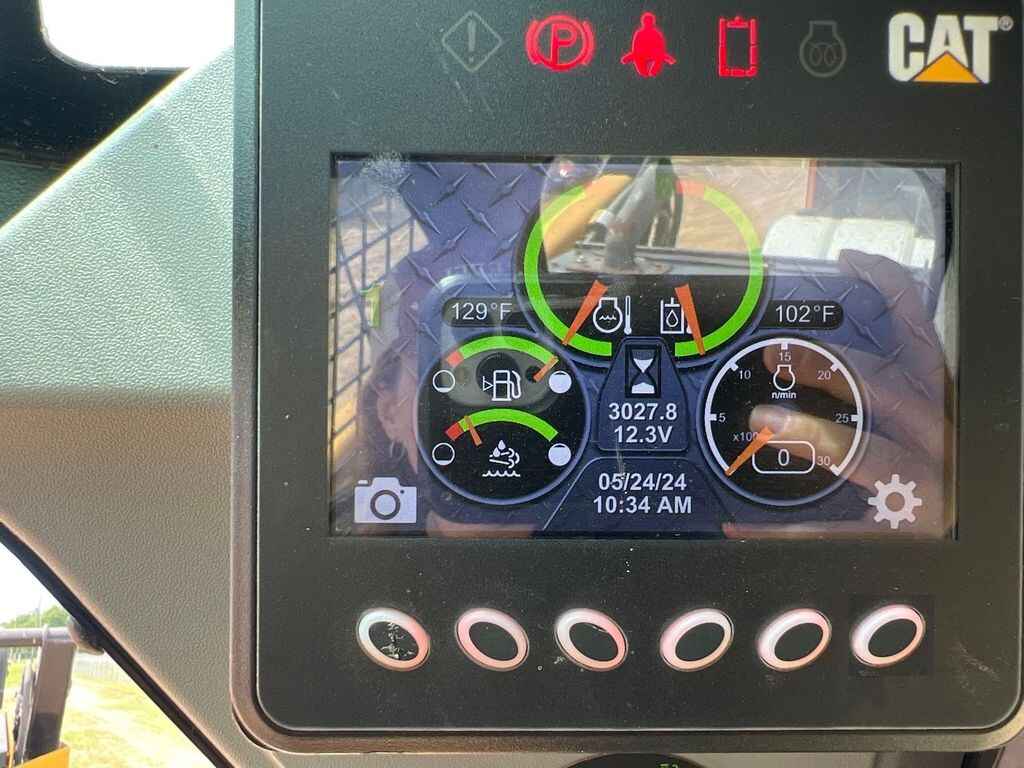

- Advanced Display: Provides on-screen adjustments for implement response, hystat response, and creep control, along with multi-language functionality and a rearview camera.
