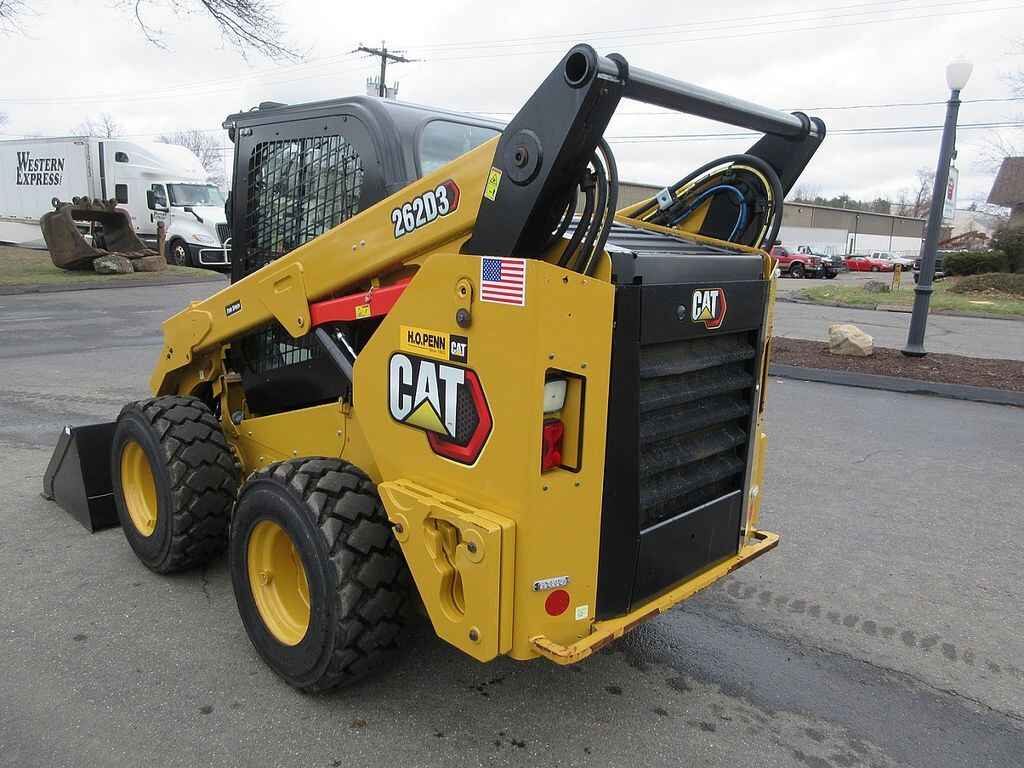

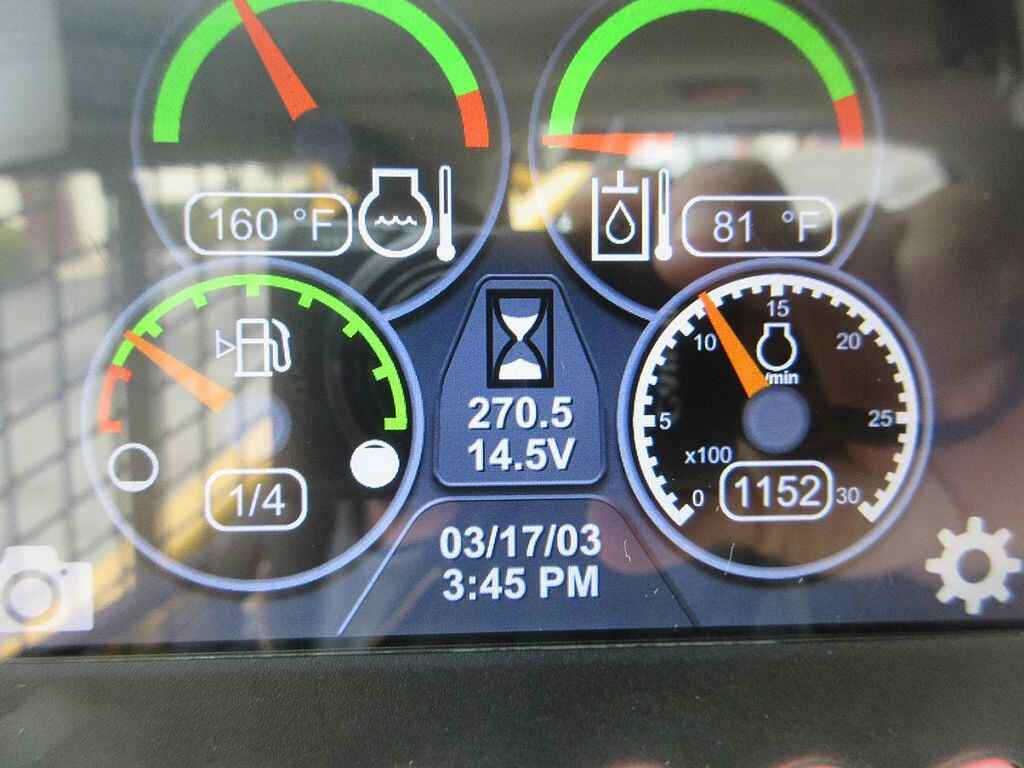

Caterpillar C3.3B 4 cyl turbo diesel, cab with heat, A/C, stereo, ride control, rearview camera, 2 speed travel, aux hyd, aux electrical connector, hyd coupler, GP bucket, meter reads 270 hours, S/N CAT0262DEZB202104, EXCELLENT CONDITION.
Engine:
- Model: Cat® C3.3B DIT (turbo)
- Gross Power (SAE J1995): 74.3 hp (55.4 kW)
- Net Power (SAE 1349): 71.8 hp (53.5 kW)
- Displacement: 203 in³ (3.3 L)
- Bore: 3.7 in (94 mm)
- Stroke: 4.7 in (120 mm)
Operating Specifications:
- Rated Operating Capacity: 2,700 lb (1,225 kg)
- Tipping Load: 5,400 lb (2,450 kg)
- Breakout Force (Tilt Cylinder): 7,355 lb
- Operating Weight: 8,296 lb (3,763 kg)
Dimensions:
- Length with Bucket: 12.2 ft (3,715 mm)
- Length without Bucket: 9.8 ft (2,985 mm)
- Height to Top of Cab: 6.9 ft (2,110 mm)
- Wheelbase: 4.1 ft (1,255 mm)
- Ground Clearance: 8.9 in (227 mm)
- Width over Tires: 66 in (1,676 mm)
- Bucket Pin Height at Maximum Lift: 10.4 ft (3,170 mm)
- Reach at Maximum Lift and Dump: 30.9 in (785 mm)
- Clearance at Maximum Lift and Dump: 7.8 ft (2,380 mm)
Hydraulic System:
- Standard Flow:
- Loader Hydraulic Flow: 23 gal/min (86 L/min)
- Loader Hydraulic Pressure: 3,335 psi (230 bar)
- High Flow XPS:
- Maximum Loader Hydraulic Flow: 32 gal/min (121 L/min)
- Maximum Loader Hydraulic Pressure: 4,061 psi (280 bar)
Service Refill Capacities:
- Fuel Tank: 24.8 gal (94 L)
- Cooling System: 3.7 gal (14 L)
- Hydraulic System (including tank): 13.7 gal (52 L)
- Hydraulic Tank: 10.3 gal (39 L)
- Engine Crankcase: 3.0 gal (11 L)
Cab:
- ROPS: ISO 3471:2008
- FOPS: ISO 3449:2005 Level I
- FOPS Level II (optional): ISO 3449:2005 Level II
