CATERPILLAR C3.3B 4 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, 2 SPEED TRAVEL, REARVIEW CAMERA, HIGH FLOW AUX HYD, AUX ELECTRICAL CONNECTOR, HYD COUPLER, GP BUCKET WITH BOCE, METER READS 2854 HOURS, S/N CAT0262DEZB203270

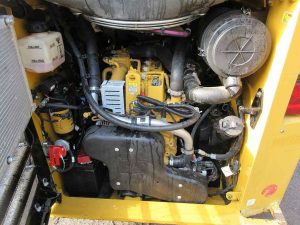

Engine
- Model: Cat C3.3B DIT (turbo)
- Gross Power: 74.3 hp (55.4 kW)
- Net Power: 72.9 hp (54.4 kW)
- Displacement: 203 in³ (3.3 L)
- Fuel Capacity: 27.7 gal (105 L)
Weights
- Operating Weight: 8,296 lbs (3,763 kg)
Performance
- Rated Operating Capacity: 2,700 lbs (1,225 kg)
- Tipping Load: 5,400 lbs (2,455 kg)
- Breakout Force – Tilt Cylinder: 7,355 lbs (3,336 kg)
- Travel Speed (1-speed): 7.7 mph (12.4 km/h)
- Travel Speed (2-speed option): 11 mph (17.7 km/h)
Hydraulics
- Standard Flow: 23 gal/min (86 L/min)
- High Flow XPS: 32 gal/min (121 L/min)
- System Relief Pressure: 3,335 psi (23 MPa)
- High Flow XPS Pressure: 4,060 psi (28 MPa)
Dimensions
- Length with Bucket on Ground: 146.2 in (3,714 mm)
- Length without Bucket: 117.9 in (2,995 mm)
- Height to Top of Cab: 83.1 in (2,110 mm)
- Width over Tires: 66 in (1,676 mm)
- Wheelbase: 49.2 in (1,249 mm)
- Ground Clearance: 8.9 in (226 mm)
- Departure Angle: 26°
- Maximum Overall Height: 157.8 in (4,008 mm)
- Bucket Pin Height at Maximum Lift: 124.9 in (3,172 mm)
- Reach at Maximum Lift and Dump: 30.9 in (786 mm)
- Clearance at Maximum Lift and Dump: 93.7 in (2,380 mm)
Features
- Cab: Sealed and pressurized with optional air conditioning
- Controls: Seat-mounted adjustable joystick controls
- Hydraulic System: Electronic Torque Management system
- Ride Control: Speed Sensitive Ride Control system
- Display: Advanced Display with rearview camera
