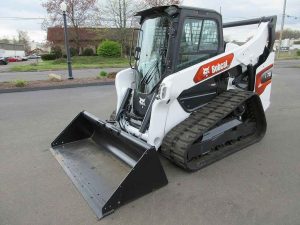

4 cyl Bobcat turbo diesel, cab with heat, A/C, stereo, 2 speed travel, keyless start, Selectable Joystick Controls, rearview camera, High Flow aux hyd, aux electrical connector, Power Bob-Tach, GP bucket, meter reads 3245 hours, S/N B4CE13854
Engine:
- Engine Model: Bobcat 4-Cylinder Diesel
- Gross Power: 99 hp (73.9 kW)
- Net Power: 95 hp (70.8 kW)
- Engine Displacement: 3.4 L (207 cu in)
- Engine Type: 4-Cylinder, Diesel
- Rated Engine Speed: 2,800 rpm
- Fuel Tank Capacity: 24.5 gal (93 L)
- Cooling System Capacity: 5.6 gal (21 L)
- Hydraulic Tank Capacity: 19.3 gal (73 L)
Dimensions:
- Operating Weight: 9,680 lbs (4,390 kg)
- Length (with bucket): 10.4 ft (3,150 mm)
- Width (with bucket): 6.2 ft (1,890 mm)
- Height to Top of Cab: 6.7 ft (2,048 mm)
- Ground Clearance: 9.1 in (231 mm)
- Wheelbase: 3.4 ft (1,045 mm)
- Length Without Bucket: 8.5 ft (2,590 mm)
- Height to Bucket Pin: 10.8 ft (3,290 mm)
- Rear Overhang: 4.6 ft (1,402 mm)
Performance:
- Rated Operating Capacity (ROC): 3,500 lbs (1,588 kg)
- Tipping Load: 7,000 lbs (3,175 kg)
- Lift Height: 10.4 ft (3,164 mm)
- Max Reach at Full Lift Height: 2.6 ft (788 mm)
- Max Dump Height: 8.8 ft (2,680 mm)
- Dump Angle: 40°
- Bucket Rollback (at ground): 30°
- Rollback at Maximum Lift Height: 101°
- Travel Speed (Low): 4.9 mph (7.9 km/h)
- Travel Speed (High): 7.4 mph (11.9 km/h)
- Drawbar Pull: 7,500 lbs (3,402 kg)
- Hydraulic Flow: 27.4 gal/min (104 L/min)
- Hydraulic Pressure: 3,500 psi (24,130 kPa)
Hydraulic System:
- Auxiliary Hydraulic Flow (Standard): 27.4 gal/min (104 L/min)
- Auxiliary Hydraulic Pressure: 3,500 psi (24,130 kPa)
- Lift Cylinder Bore: 3 in (76 mm)
- Tilt Cylinder Bore: 3 in (76 mm)
Undercarriage:
- Track Size: 15 in (381 mm)
- Ground Pressure: 5.3 psi (36.5 kPa)
- Track Width: 15 in (381 mm)
- Ground Clearance: 9.1 in (231 mm)
Capacities:
- Fuel Tank Capacity: 24.5 gal (93 L)
- Hydraulic Reservoir Capacity: 19.3 gal (73 L)
- Hydraulic System Fluid Capacity: 27.4 gal (104 L)
- Engine Oil Capacity: 7.4 qt (7 L)
Cab Features:
- ROPS: ISO 3471:2008
- FOPS: ISO 3449:2005 Level II
- Operator Cab: Standard
- Heating System: Optional
- Air Conditioning: Optional
- Joystick Controls: Standard
- Seats: Adjustable
- Cab Mounting: Isolated
Brakes and Safety:
- Brakes: Hydraulic wet disc brakes
- Parking Brake: Automatic
- Safety Features:
- Backup alarm
- Seat belt interlock
- Roll-over protection (ROPS)
Additional Features:
- Lift Arm Path: Vertical
- Auxiliary Hydraulics: Standard
- Engine Shutdown: Optional
- Machine Control System: Optional
