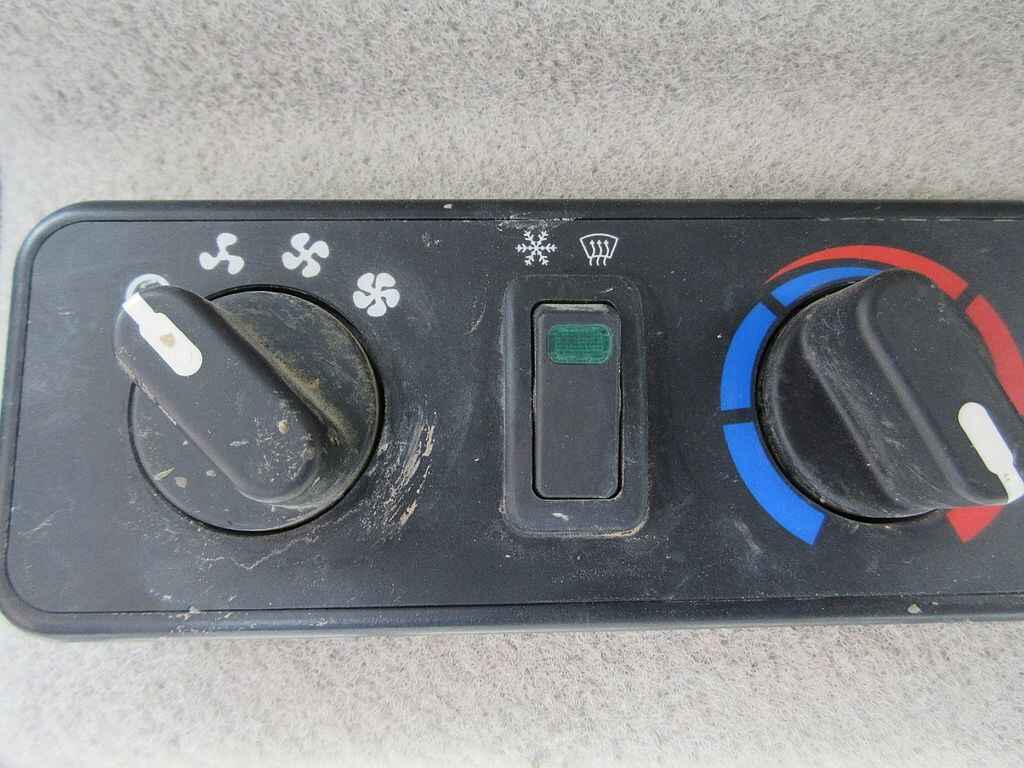

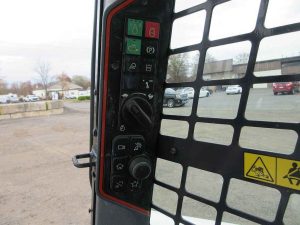

4 cyl Bobcat turbo diesel, cab with heat, A/C, stereo, 2 speed travel, keyless start, Selectable Joystick Controls, rearview camera, aux hyd, aux electrical connector, Power Bob-Tach, GP bucket, meter reads 1244 hours, S/N B4SB18397
Engine
- Model: T66
- Emissions Tier (EPA): Tier 4
- Engine Cooling: Liquid
- Engine Fuel: Diesel
- Horsepower: 74 hp (55.4 kW)
- Turbocharged Engine: Yes
Performance
- Rated Operating Capacity (ISO): 2,450 lb (1,111 kg)
- Operating Capacity (50% of Tip): 3,500 lb (1,588 kg)
- Tipping Load: 7,000 lb (3,175 kg)
- Operating Weight: 8,840 lb (4,008 kg)
- Travel Speed: 7.2 mph (11.5 km/h)
- Travel Speed (2-speed option): 10.2 mph (16.4 km/h)
- Ground Pressure (Rubber): 5.8 psi (39.9 kPa)
Hydraulic System
- System Relief @ Quick Couplers: 3,500 psi (24,130 kPa)
- Auxiliary Standard Flow: 17.6 gal/min (66.6 L/min)
- Auxiliary High Flow: 26.9 gal/min (101.6 L/min)
Capacities
- Fuel Tank: 28.3 gal (107.5 L)
- Hydraulic Tank: 14.8 gal (56 L)
Dimensions
- Length: 134.9 in (3,428 mm)
- Length without Attachment: 107 in (2,718 mm)
- Length with Standard Bucket: 134.9 in (3,428 mm)
- Width: 67 in (1,702 mm)
- Width (with bucket): 68 in (1,727 mm)
- Height with Operator Cab: 80.5 in (2,047 mm)
- Height to Bucket Hinge Pin: 120 in (3,048 mm)
- Reach at Maximum Height: 36.7 in (932 mm)
- Turning Radius: 81.5 in (2,070 mm)
- Length of Track on Ground: 54.3 in (1,380 mm)
- Track Width: 12.6 in (320 mm)
- Track Width (Optional): 15.7 in (399 mm)
Features
- 5-Link Torsion Suspension Undercarriage: Optional
- Joystick Control: Optional
- Air Conditioning: Optional
- Backup Alarm: Standard
- BICS System (Interlock): Standard
- Cab Heater: Optional
- Operating Lights: Standard
- Suspension Seat: Standard
- Two-Speed Travel: Optional
- Deluxe Instrumentation: Optional
- Engine Shutdown: Standard
- Hydraulic Bucket Positioning: Optional
- High Flow Option: Optional
- Auxiliary Hydraulics: Standard
- Bob-Tach Attachment System: Standard
- Power Bob-Tach: Optional
- ACS (Switchable Controls): Not Applicable
- Ride Control: Optional
- Horn: Standard
- Cab Enclosure: Optional
- Adjustable Seat: Standard
- Sound Option: Optional
- Rear Window: Standard
- Top Window: Standard
- Seat Belt: Standard 2-Point Lap Belt, Optional 3-Point Shoulder Belt on Two-Speed Models
- Spark Arrestor Muffler: DOC
- Lift-Arm Support: Standard
