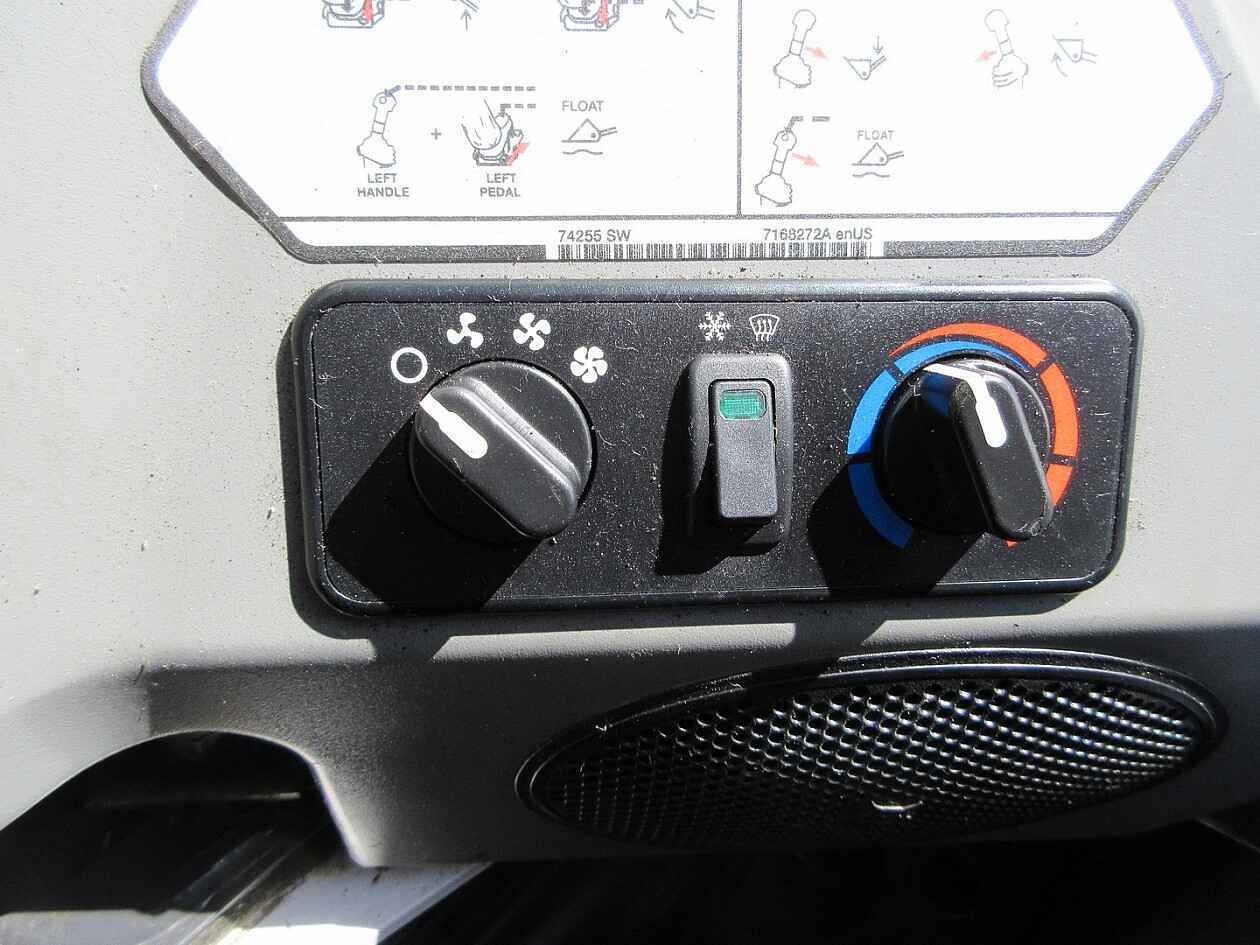

4 cyl Bobcat turbo diesel, cab with heat, A/C, stereo, 2 speed travel, keyless start, aux hyd, ride control, Power Bob-Tach, GP bucket, meter reads 1406 hours, S/N AT5A17233
Please note: Photos and videos of our machines are taken at different times. Some variation in appearance is normal due to cleaning or use during operation.
Engine
- Model: Bobcat Turbocharged Diesel Engine
- Net Power: 92 hp
- Gross Power: 94 hp
- Displacement: 3.4 L (207 cu in)
- Net Torque: 276 ft-lb
- Fuel Capacity: 93.7 L (24.8 gal)
Weights
- Operating Weight (with Cab): 3,814 kg (8,410 lbs)
- Operating Weight (with Canopy): 3,675 kg (8,100 lbs)
Performance
- Rated Operating Capacity (ROC): 1,558 kg (3,450 lbs)
- Max Dump Height: 2,665 mm (105 in)
- Max Reach at Ground Level: 915 mm (36 in)
- Maximum Travel Speed: 12.3 km/h (7.6 mph)
- Tipping Load: 3,116 kg (6,900 lbs)
- Bucket Breakout Force: 3,500 lbs
- Emissions Compliance: Tier 4 Final compliant
Hydraulics
- Main System – Maximum Flow: 23.0 gal/min
- Hydraulic System Pressure (Standard): 3,500 psi
- Auxiliary Hydraulics: Yes, available with high-flow options
Dimensions
- Overall Length: 3,613 mm (142.3 in) without attachment
- Overall Width: 1,850 mm (73 in)
- Height to Top of Cab: 2,086 mm (82.1 in)
- Tail Swing Radius: N/A (This machine is designed without an overhang tail swing)
- Ground Clearance: 206 mm (8.1 in)
Tires/Wheels
- Standard Tire Size: 12-16.5
- Wheelbase: 1,278 mm (50.3 in)
