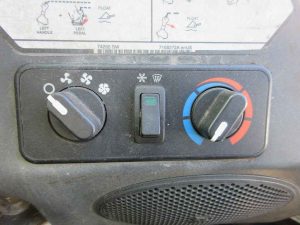

4 cyl Bobcat turbo diesel, cab with heat, A/C, aux hyd, GP bucket, meter reads 924 hours, S/N B3BT19096
Engine:
- Engine Model: Bobcat 4-Cylinder Diesel
- Gross Power: 74.3 hp (55.4 kW)
- Net Power: 70 hp (52.2 kW)
- Engine Displacement: 2.4 L (146 cu in)
- Engine Type: 4-Cylinder, Diesel
- Rated Engine Speed: 2,700 rpm
- Fuel Tank Capacity: 23.8 gal (90 L)
- Cooling System Capacity: 4.8 gal (18.1 L)
- Hydraulic Tank Capacity: 15.3 gal (58 L)
Dimensions:
- Operating Weight: 7,767 lbs (3,525 kg)
- Length (with bucket): 10.7 ft (3,260 mm)
- Width (with bucket): 5.6 ft (1,710 mm)
- Height to Top of Cab: 6.5 ft (1,981 mm)
- Ground Clearance: 7.5 in (191 mm)
- Wheelbase: 3.2 ft (975 mm)
- Length Without Bucket: 8.6 ft (2,620 mm)
- Height to Bucket Pin: 10.8 ft (3,295 mm)
- Rear Overhang: 4.5 ft (1,372 mm)
Performance:
- Rated Operating Capacity (ROC): 2,700 lbs (1,225 kg)
- Tipping Load: 5,400 lbs (2,448 kg)
- Lift Height: 10.9 ft (3,324 mm)
- Max Reach at Full Lift Height: 2.8 ft (853 mm)
- Max Dump Height: 8.3 ft (2,530 mm)
- Dump Angle: 40°
- Bucket Rollback (at ground): 30°
- Rollback at Maximum Lift Height: 101°
- Travel Speed (Low): 4.6 mph (7.4 km/h)
- Travel Speed (High): 7.5 mph (12.1 km/h)
- Drawbar Pull: 5,195 lbs (2,355 kg)
- Hydraulic Flow: 24.3 gal/min (92 L/min)
- Hydraulic Pressure: 3,300 psi (22,950 kPa)
Hydraulic System:
- Auxiliary Hydraulic Flow (Standard): 24.3 gal/min (92 L/min)
- Auxiliary Hydraulic Pressure: 3,300 psi (22,950 kPa)
- Lift Cylinder Bore: 2.5 in (64 mm)
- Tilt Cylinder Bore: 2.5 in (64 mm)
Undercarriage:
- Tire Size: 12-16.5
- Track Type: Pneumatic tires (standard)
- Ground Pressure: 5.9 psi (40.7 kPa)
- Number of Tires: 4
- Tire Width: 12 in (305 mm)
- Ground Clearance: 7.5 in (191 mm)
Capacities:
- Fuel Tank Capacity: 23.8 gal (90 L)
- Hydraulic Reservoir Capacity: 15.3 gal (58 L)
- Hydraulic System Fluid Capacity: 24.3 gal (92 L)
- Engine Oil Capacity: 6.5 qt (6.1 L)
Cab Features:
- ROPS: ISO 3471:2008
- FOPS: ISO 3449:2005 Level II
- Operator Cab: Standard
- Heating System: Optional
- Air Conditioning: Optional
- Joystick Controls: Standard
- Seats: Adjustable
- Cab Mounting: Isolated
Brakes and Safety:
- Brakes: Hydraulic wet disc brakes
- Parking Brake: Automatic
- Safety Features:
- Backup alarm
- Seat belt interlock
- Roll-over protection (ROPS)
Additional Features:
- Lift Arm Path: Vertical
- Auxiliary Hydraulics: Standard
- Engine Shutdown: Optional
- Machine Control System: Optional
