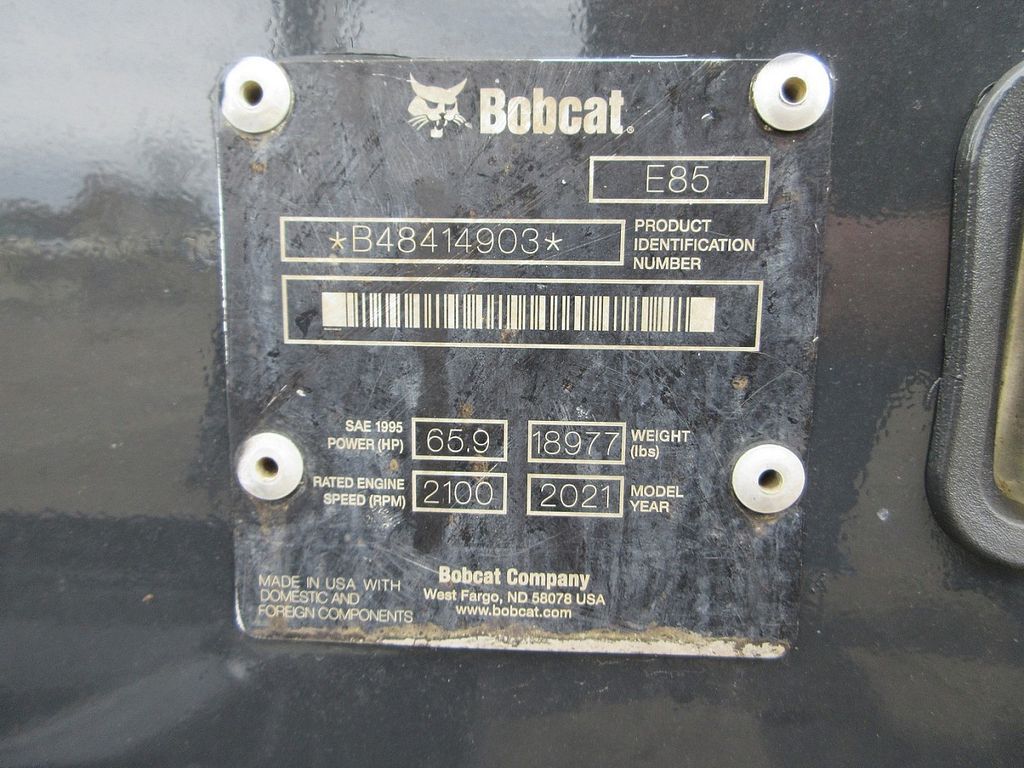

4 cyl Bobcat turbo diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, keyless start, backfill blade, swing boom, aux hyd, hyd thumb, 7′ 4″ stick, plumbed for hyd coupler, bucket with teeth, meter reads 1327 hours, S/N B48414903
Engine
- Model: Yanmar 4TNV98C-VDB8
- Gross Power: 65.9 hp (49.2 kW)
- Net Power: 59.4 hp (44.3 kW)
- Displacement: 201.4 in³ (3.3 L)
- Fuel Capacity: 30.6 gal (116 L)
Weights
- Operating Weight: 18,977 lbs (8,608 kg)
Performance
- Maximum Digging Depth: 15.5 ft (4.7 m)
- Maximum Reach at Ground Level: 23.6 ft (7.2 m)
- Bucket Digging Force: 16,269 lbf (7,380 kgf)
- Arm Digging Force: 8,253 lbf (3,744 kgf)
- Travel Speed (Low): 1.7 mph (2.7 km/h)
- Travel Speed (High): 2.9 mph (4.7 km/h)
Hydraulics
- Standard Flow: 25.1 gal/min (95 L/min)
- System Relief Pressure: 3,045 psi (21 MPa)
Dimensions
- Overall Length: 20.5 ft (6.25 m)
- Overall Width: 6.5 ft (2.0 m)
- Overall Height: 8.37 ft (2.55 m)
- Tail Swing Radius: 4.5 ft (1.37 m)
- Ground Clearance: 1.2 ft (0.37 m)
Features
- Tail Swing Type: Minimal
- Engine Emissions: Tier 4
- Operator Cab: Enclosed with optional HVAC
- Auxiliary Hydraulics: Standard
- Control System: Selectable Control Pattern
