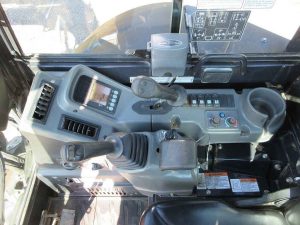

4 CYL YANMAR DIESEL, CAB WITH HEAT, A/C, STEREO, AUTO IDLE, 2 SPEED TRAVEL, ANGLE BACKFILL BLADE, SWING BOOM, AUX HYD, HYD THUMB, 4′ 10″ STICK, HYD COUPLER, BUCKET WITH TEETH, METER READS 1691 HOURS, S/N 61462, EXCELLENT CONDITION.
Engine
- Model: Yanmar 4TNV88C-PBV
- Gross Power: 39 hp (29.1 kW)
- Displacement: 133.6 in³ (2.19 L)
- Fuel Capacity: 17.4 gal (66 L)
Weights
- Operating Weight (Rubber Tracks, Canopy): 10,417 lbs (4,725 kg)
- Operating Weight (Steel Tracks, Canopy): 10,703 lbs (4,855 kg)
- Operating Weight (Rubber Tracks, Cabin): 10,792 lbs (4,895 kg)
- Operating Weight (Steel Tracks, Cabin): 11,078 lbs (5,025 kg)
Performance
- Maximum Digging Depth: 12 ft 3 in (3.734 m)
- Maximum Reach at Ground Level: 18 ft 8 in (5.74 m)
- Bucket Digging Force: 6,497 lbf (28.9 kN)
- Arm Digging Force: 4,676 lbf (20.8 kN)
- Travel Speed (High/Low): 2.9 mph (4.7 km/h) / 1.5 mph (2.4 km/h)
- Swing Speed: 10 rpm
Hydraulics
- Pump Capacity: 11.2 + 11.2 + 9.7 + 2.8 GPM (42.4 + 42.4 + 36.7 + 10.6 L/min)
- Main Relief Set Pressure: 3,553 x 2 + 3,133 + 566 psi (24.5 x 2 + 21.6 + 3.9 MPa)
Dimensions
- Overall Length: 17 ft 5 in (5.32 m)
- Overall Width: 6 ft 5 in (1.94 m)
- Overall Height: 8 ft 4 in (2.54 m)
- Ground Clearance: 1 ft 2 in (0.35 m)
- Tail Swing Radius: 3 ft 2 in (0.97 m)
Features
- True Zero Tail Swing: Yes
- Auto Deceleration: Standard
- ECO Mode: Standard
- Hydraulic Quick Coupler: Standard
- SmartAssist Remote: Standard
- Cab with HVAC: Optional
