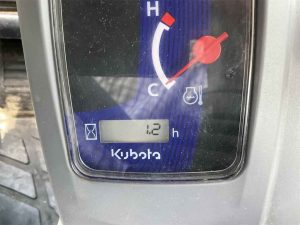

Looking for a reliable and powerful skid steer loader? Our 2020 Kubota SVL 75-2 is ready to tackle your toughest jobs with ease. This machine features an enclosed ROPS for operator comfort and safety, a quick attach coupler for fast and efficient attachment changes, and a two-speed transmission to boost productivity on the job site. With only 500 hours of use, it’s practically new and fully equipped with hydraulic auxiliary capabilities.
Don’t miss out on this excellent machinery! Contact us today for more details.
Engine
- Model: Kubota V3307-CR-TE4
- Gross Power: 74.3 hp (55.4 kW)
- Net Power: 68.8 hp (51.3 kW)
- Displacement: 203.3 in³ (3.3 L)
- Fuel Capacity: 24.6 gal (93 L)
Weights
- Operating Weight: 9,039 lbs (4,100 kg)
Performance
- Rated Operating Capacity (35% of tipping load): 2,300 lbs (1,043 kg)
- Tipping Load: 6,570 lbs (2,980 kg)
- Bucket Breakout Force: 6,204 lbs (2,814 kg)
- Lift Arm Breakout Force: 4,766 lbs (2,162 kg)
- Travel Speed (Low): 4.7 mph (7.5 km/h)
- Travel Speed (High): 7.1 mph (11.5 km/h)
Hydraulics
- Standard Flow: 17.4 gal/min (66 L/min)
- High Flow (optional): 29.3 gal/min (110.9 L/min)
- Auxiliary Hydraulic Pressure: 3,185 psi (22 MPa)
Dimensions
- Overall Length (with bucket): 140.8 in (3,576 mm)
- Overall Width (standard track): 65.9 in (1,675 mm)
- Overall Height: 82.0 in (2,083 mm)
- Height to Bucket Hinge Pin: 119.1 in (3,025 mm)
- Dump Reach at Maximum Height: 41.7 in (1,060 mm)
- Ground Clearance: 11.7 in (296 mm)
Features

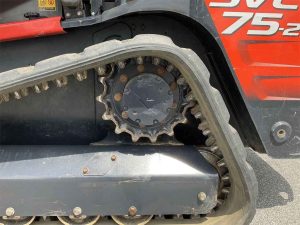

- Track Width (standard): 12.6 in (320 mm)
- Track Width (wide): 15.0 in (380 mm)
- Ground Pressure (standard track): 4.7 psi (32.4 kPa)
- Ground Pressure (wide track): 4.0 psi (27.6 kPa)
- Operator Cab: Open or Enclosed with optional HVAC
- Controls: Pilot-operated joystick controls
