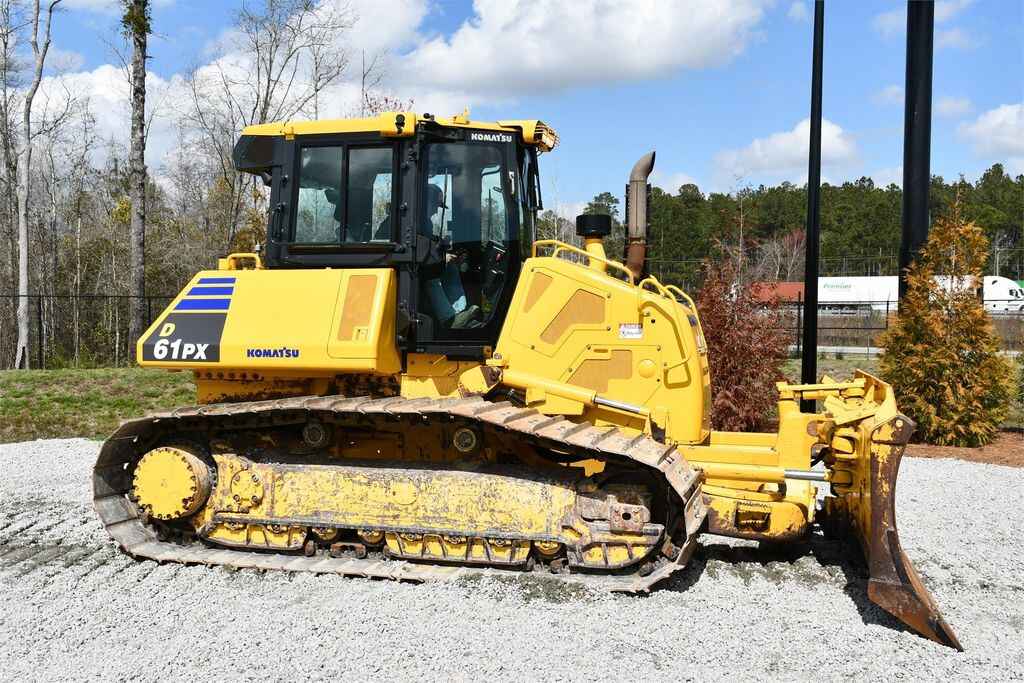

Cab, A/C, meter reads 3816 hours, 6-way blade.
Engine
- Model: Komatsu SAA6D107E-3
- Type: 4-cycle, water-cooled, direct injection
- Aspiration: Variable Geometry Turbocharged, air-to-air aftercooled, cooled EGR
- Number of Cylinders: 6
- Bore x Stroke: 4.21 x 4.88 in (107 x 124 mm)
- Piston Displacement: 408 in³ (6.7 L)
- Net Horsepower: 168 HP (125 kW) @ 2,200 rpm
- Emissions: EPA Tier 4 Final certified
Operating Weight
- Operating Weight: 42,902 lbs (19,460 kg)
Transmission
- Type: Hydrostatic Transmission (HST)
- Travel Speed (Forward): 0-5.6 mph (0-9.0 km/h)
- Travel Speed (Reverse): 0-5.6 mph (0-9.0 km/h)
Undercarriage
- Track Gauge: 7 ft 3 in (2,210 mm)
- Track Shoe Width: 36 in (915 mm)
- Ground Contact Area: 5,760 in² (3.72 m²)
- Ground Pressure: 7.4 psi (51 kPa)
Blade
- Type: Power Angle Tilt (PAT) with adjustable blade pitch
- Blade Capacity: 4.98 yd³ (3.81 m³)
- Blade Width: 12 ft 7 in (3,840 mm)
- Blade Height: 3 ft 10 in (1,165 mm)
Dimensions
- Overall Length (with Blade): 17 ft 11 in (5,460 mm)
- Overall Width (with Blade): 12 ft 7 in (3,840 mm)
- Overall Height: 10 ft 4 in (3,150 mm)
- Ground Clearance: 1 ft 3 in (385 mm)
Features
- Parallel Link Undercarriage System (PLUS): Designed for extended undercarriage life
- Super-Slant Nose Design: Provides excellent blade visibility
- Hydrostatic Steering System: Allows for smooth and powerful turns
- Operator Cab: Integrated ROPS with ergonomic design and low-effort palm command control system
