PRICE FIRM NO TAX OR FEES
(This machine new is around 150k!)
SAVE ON THIS ONE! 1,000 Hour service will be performed before sale. ALL ORIGINAL PAINT & Decals! Delivery Available!
– ONLY 940 hours
– 1 owner machine
– All Original Paint & Decals
– 18” & 36” Tooth Buckets
– Hydraulic Thumb
– 2 Speed
– Metal Tracks
– HEAT/AC/RADIO
– 1,000 Hour Full service
– 18k lbs
– And more!
Machine is READY TO WORK!

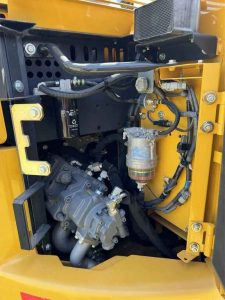

Engine
- Model: Yanmar 4TNV98C
- Emission Rating: EPA Final Tier 4/EU Stage IV
- Net Power: 56.9 hp (42.4 kW) at 2,000 rpm
- Displacement: 201.4 cu in. (3.3 L)
- Number of Cylinders: 4
Dimensions
- Transport Length: 20 ft 11 in. (6.37 m)
- Transport Height: 8 ft 10 in. (2.69 m)
- Overall Width: 7 ft 7 in. (2.32 m)
- Tail Swing Radius: 4 ft 3 in. (1.29 m)
- Ground Clearance: 1 ft 2 in. (0.36 m)
- Track Gauge: 6 ft 1 in. (1.87 m)
- Track Shoe Width: 17.7 in. (450 mm)
Operating Specifications
- Operating Weight: 17,952 lbs (8,143 kg)
- Max Digging Depth: 15 ft 1 in. (4.61 m)
- Max Reach at Ground Level: 22 ft 2 in. (6.76 m)
- Max Dump Height: 18 ft 1 in. (5.51 m)
- Bucket Digging Force: 10,476 lbf (46.6 kN)
- Arm Digging Force: 6,902 lbf (30.7 kN)
Hydraulic System
- Main Pumps: 3 variable-displacement axial-piston pumps
- Maximum Flow: 38.1 gal/min (144 L/min)
- System Pressure: 3,771 psi (26,000 kPa)
Travel System
- Travel Speed – Low: 1.9 mph (3.1 km/h)
- Travel Speed – High: 3.1 mph (5.0 km/h)
- Drawbar Pull: 14,658 lbf (65.2 kN)
Fuel and Fluid Capacities
- Fuel Tank: 35.7 gal (135 L)
- Hydraulic Tank: 14.8 gal (56 L)
