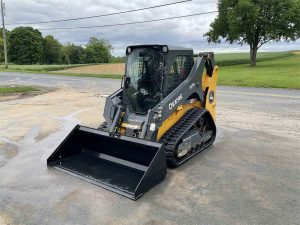

2020 DEERE 317G Track Skid Steer Loader CAB WITH HEAT & AC!!!! ONLY 480 HOURS!!! Joystick Controls!!!! Power Quick Attach!!!! )
Please note: Photos and videos of our machines are taken at different times. Some variation in appearance is normal due to cleaning or use during operation.
Engine
- Model: Yanmar 4TNV86CHT
- Gross Power: 65 hp (48.5 kW)
- Net Power: 61 hp (45.6 kW)
- Displacement: 128.1 in³ (2.1 L)
- Rated Speed: 2,600 rpm
- Emission Rating: EPA Final Tier 4/EU Stage IV
Dimensions
- Length without Bucket: 103.5 in (2,630 mm)
- Length with Bucket: 127.5 in (3,240 mm)
- Width without Bucket: 65 in (1,650 mm)
- Height to Top of Cab: 78.3 in (1,990 mm)
- Ground Clearance: 8.3 in (210 mm)
- Track Width: 12.6 in (320 mm)
- Track Gauge: 52.4 in (1,330 mm)
Performance
- Rated Operating Capacity: 2,125 lbs (965 kg)
- Tipping Load: 6,076 lbs (2,756 kg)
- Breakout Force – Bucket: 5,980 lbs (2,715 kg)
- Breakout Force – Lift: 4,990 lbs (2,265 kg)
- Travel Speed: 7.1 mph (11.4 km/h)
- Ground Pressure: 5.5 psi (0.38 kPa)
Hydraulic System
- Standard Pump Flow: 17 gpm (63.3 L/min)
- Optional High-Flow: 25 gpm (95 L/min)
- System Pressure: 3,450 psi (23.8 MPa)
Capacities
- Fuel Tank: 19.0 gal (71.9 L)
- Hydraulic Reservoir: 6.1 gal (23.0 L)
Features
- Lift Geometry: Vertical
- Operator Station: ROPS/FOPS with optional HVAC
- Controls: Electrohydraulic (EH) ISO-pattern joystick controls
- Auxiliary Hydraulics: Standard with optional high-flow
- Quick-Tatch™ System: Hydraulic coupler for attachments
