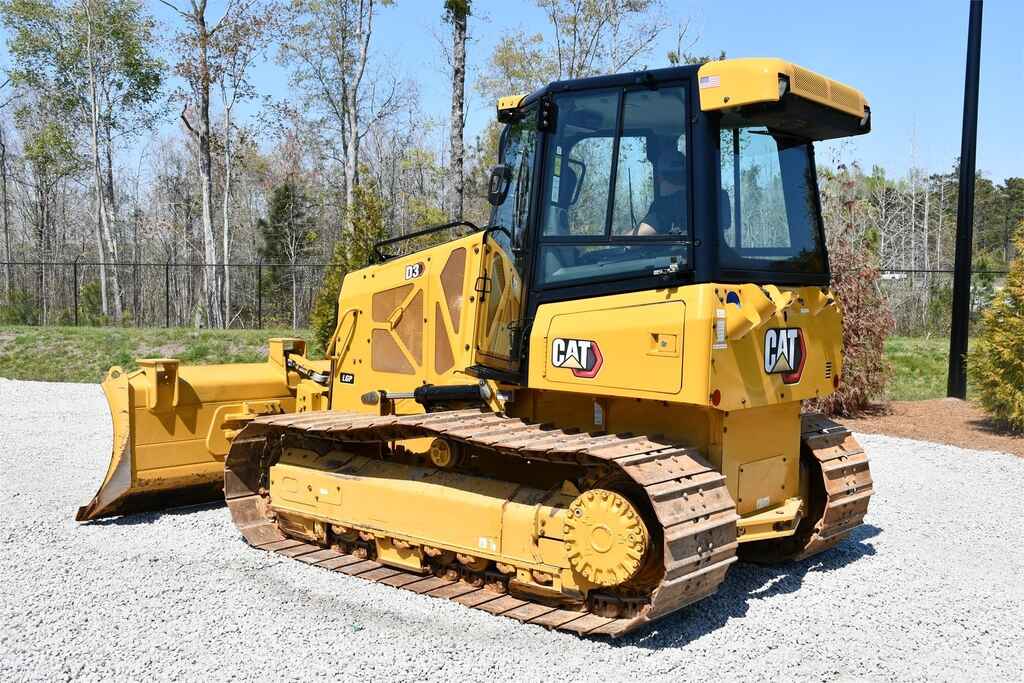

Next Gen Dozer features EROPS, Heat/AC, AM/FM Radio, Rear View Camera, ARO Ready, Rear Screens, Side Screens, Strong Running 104 HP Caterpillar C3.6 Turbo Engine, Good CAT undercarriage with 80% + tread life remaining.
Engine
- Model: Cat® C3.6
- Net Power: 104 hp (77.6 kW)
- Displacement: 220 in³ (3.6 L)
- Emissions: U.S. EPA Tier 4 Final / EU Stage V
Weights
- Operating Weight: 21,369 lbs (9,693 kg)
- Operating Weight with 762 mm (30 in) Shoes: 21,810 lbs (9,893 kg)
Dimensions
- Track Gauge: 67.9 in (1,725 mm)
- Width Over Tracks: 94.9 in (2,410 mm)
- Ground Clearance: 13 in (332 mm)
- Length of Track on Ground: 91 in (2,311 mm)
- Overall Length with Blade: 169.6 in (4,309 mm)

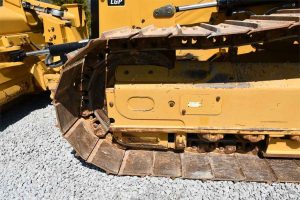

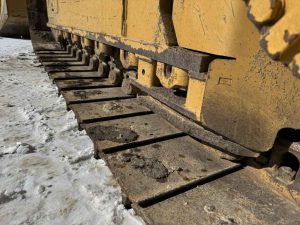

Undercarriage
- Shoe Width: 26 in (660 mm)
- Shoe Width with 762 mm (30 in) Shoes: 30 in (762 mm)
- Number of Shoes per Side: 40
- Number of Track Rollers per Side: 7
- Ground Pressure: 4.5 psi (31.2 kPa)
- Ground Pressure with 762 mm (30 in) Shoes: 3.9 psi (27.2 kPa)
Hydraulic System
- Pump Output: 17.2 gal/min (65 L/min)
- Relief Valve Setting: 2,988 psi (20,600 kPa)
Blade
- Blade Width: 126.7 in (3,220 mm)
- Blade Height: 39.8 in (1,010 mm)
- Blade Capacity (SAE): 3.06 yd³ (2.34 m³)
- Maximum Tilt: 17.7 in (450 mm)
- Maximum Angle (either side): 25°
- Blade Lift Height: 30.2 in (767 mm)
- Blade Digging Depth: 23.2 in (590 mm)
Service Refill Capacities
- Fuel Tank: 51.5 gal (195 L)
- DEF Tank: 4.9 gal (19 L)
- Cooling System: 5 gal (19 L)
- Engine Crankcase: 2.8 gal (10.5 L)
- Final Drives (each): 2.6 gal (10 L)
- Transmission/Hydraulic Tank: 23.8 gal (90 L)
