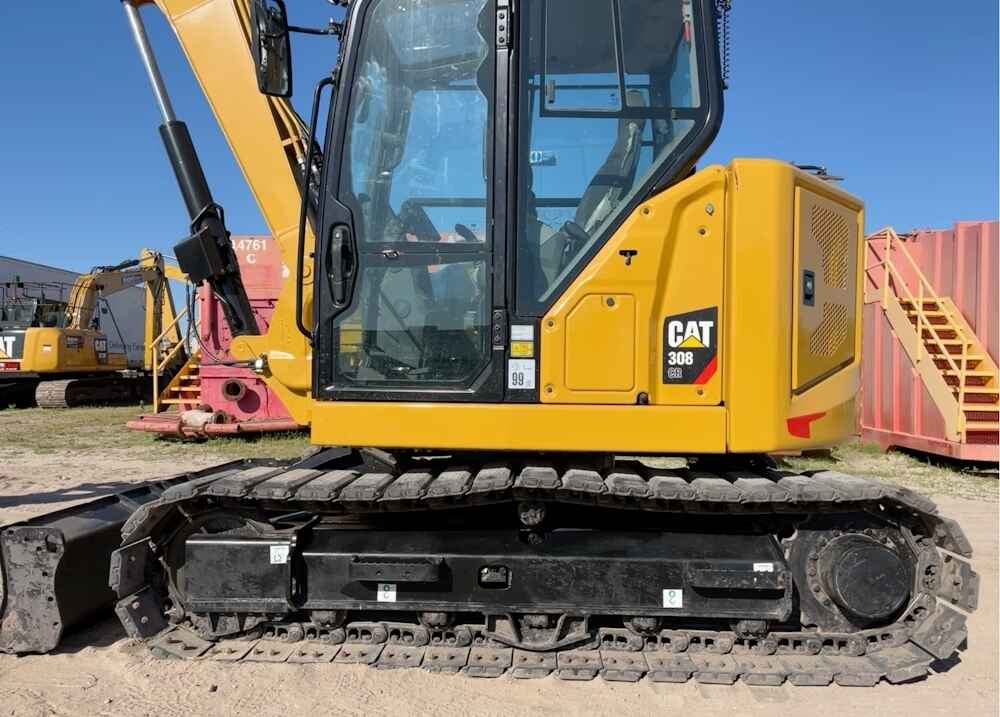

2020 Caterpillar 308 CR Hydraulic Excavator Cab Aux Hydraulics Rubber
Make: Caterpillar
Model: 308 CR
Year: 2020
Serial Number: GW801106

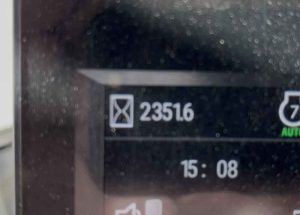

Hours: 2352
Transport Dimensions: 259″ L x 97″ W x 100″ H
Transport Weight: 20,678 lbs
Engine
- Model: Cat C3.3B
- Net Power: 69.5 hp (51.8 kW)
- Displacement: 203 in³ (3.3 L)
- Bore: 3.7 in (94 mm)
- Stroke: 4.7 in (120 mm)
Weights
- Operating Weight: 20,077 lbs (9,105 kg)
Performance
- Maximum Digging Depth: 15 ft 2.8 in (4,643 mm)
- Maximum Reach at Ground Level: 24 ft 5.7 in (7,458 mm)
- Bucket Digging Force: 13,496 lbf (60 kN)
- Stick Digging Force: 9,509 lbf (42.3 kN)
- Travel Speed (High): 3.2 mph (5.2 km/h)
- Travel Speed (Low): 1.9 mph (3.1 km/h)
Hydraulics
- Main System – Maximum Flow: 44 gal/min (167 L/min)
- Maximum Auxiliary Circuit – Primary: 35 gal/min (132 L/min)
- Maximum Auxiliary Circuit – Secondary: 9 gal/min (35 L/min)
- System Pressure – Equipment: 4,134 psi (28.5 MPa)
- System Pressure – Travel: 4,134 psi (28.5 MPa)
- System Pressure – Swing: 3,626 psi (25 MPa)
Dimensions
- Overall Length: 21 ft 6 in (6,550 mm)
- Overall Width: 7 ft 6.6 in (2,300 mm)
- Overall Height: 8 ft 3.3 in (2,520 mm)
- Tail Swing Radius: 5 ft 4.8 in (1,645 mm)
- Ground Clearance: 1 ft 1.7 in (350 mm)
Features
- Stick Steer Travel Mode: Yes
- Sealed and Pressurized Cab: Yes
- Air Conditioning System: Improved
- Adjustable Wrist Rests: Yes
- Suspension Seat: Yes
- Back-Up Camera: Yes
- Courtesy Work Lights: Yes
- Fluorescent Retractable Seat Belt: Yes
