2020 CAT 306E2 excavator- CAT C2.4 turbo engine
– 42 HP

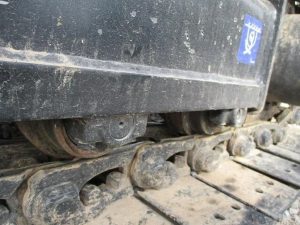

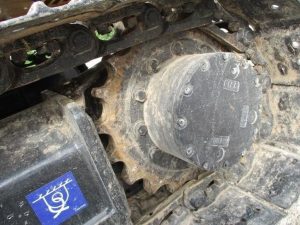

– 16″ tracks
– 13,500 lb. machine
– hydraulic thumb

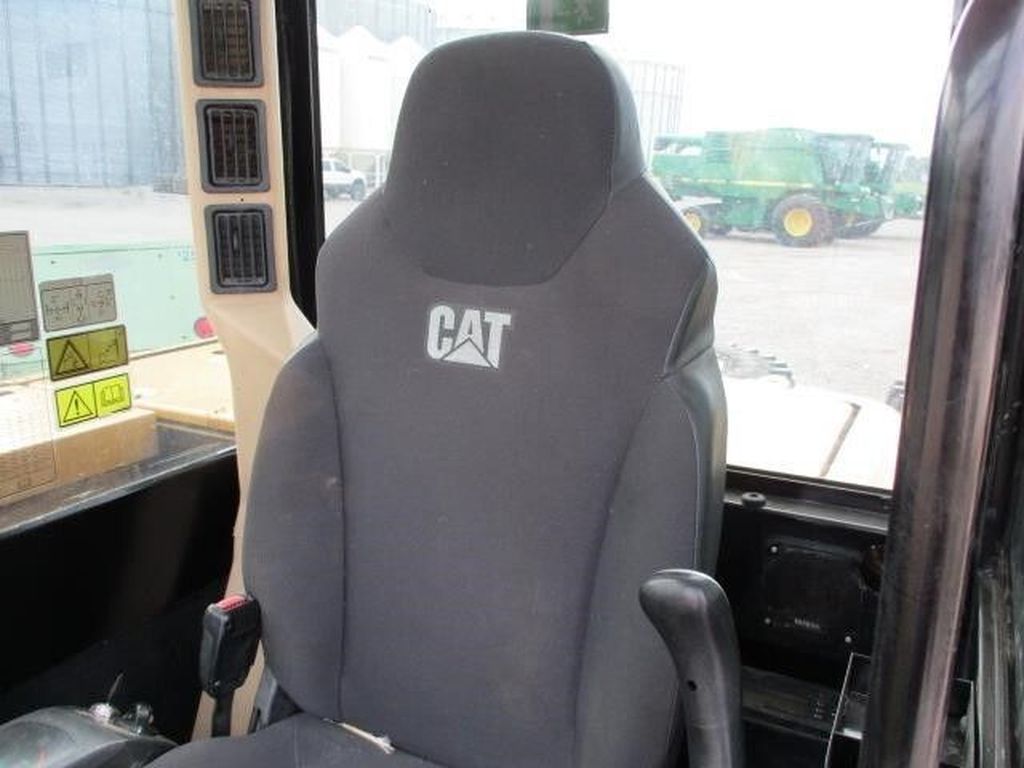

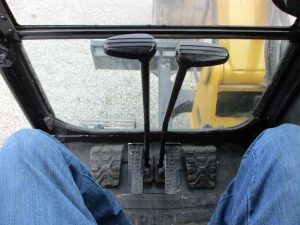

– cab
– heat
– air conditioning
– shows 323 hours
Engine
- Model: Cat C2.4 Turbo
- Net Power: 46.5 hp (34.7 kW)
- Gross Power: 48.9 hp (36.5 kW)
- Displacement: 146.5 in³ (2.4 L)
Weights
- Operating Weight: 12,787 lbs (5,800 kg)
Performance
- Maximum Digging Depth: 12 ft 7 in (3,870 mm)
- Maximum Reach at Ground Level: 19 ft 6 in (5,970 mm)
- Bucket Digging Force: 8,768 lbf (39 kN)
- Stick Digging Force: 6,295 lbf (28 kN)
- Travel Speed (High): 2.7 mph (4.3 km/h)
- Travel Speed (Low): 1.7 mph (2.8 km/h)
Hydraulics
- Main System Maximum Flow: 37 gal/min (140 L/min)
- Operating Pressure (Equipment): 3,626 psi (25,000 kPa)
- Operating Pressure (Swing): 3,133 psi (21,600 kPa)
- Operating Pressure (Travel): 3,626 psi (25,000 kPa)
Dimensions
- Overall Length: 19 ft (5,785 mm)
- Overall Width: 6 ft 4 in (1,950 mm)
- Overall Height: 8 ft 3 in (2,540 mm)
- Ground Clearance: 2 ft 1 in (628 mm)
- Tail Swing Radius: 5 ft 2 in (1,580 mm)
- Track Length: 8 ft (2,440 mm)
- Track Shoe Width: 1 ft 4 in (400 mm)
Service Refill Capacities
- Fuel Tank: 20.6 gal (78 L)
- Hydraulic System: 22.5 gal (85 L)
- Hydraulic Tank: 15.3 gal (58 L)
- Engine Oil: 2.5 gal (9.5 L)
- Cooling System: 2.2 gal (8.3 L)
