PRICE FIRM NO TAX OR FEES
6M/1500Hr FULL Warranty!
Excellent condition and LIGHTLY used. Just completely cleaned, greased, & looked over. Photos just taken. Delivery Available!
– 1,451 LIGHTLY Used Hours

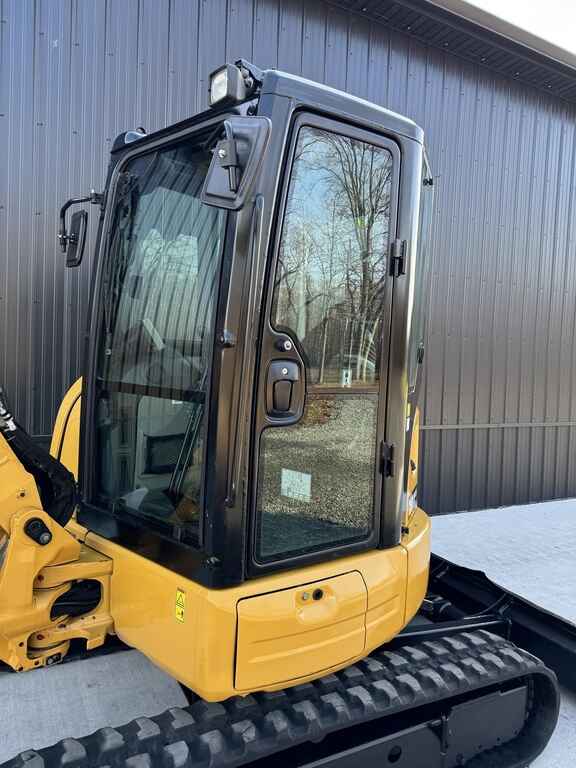

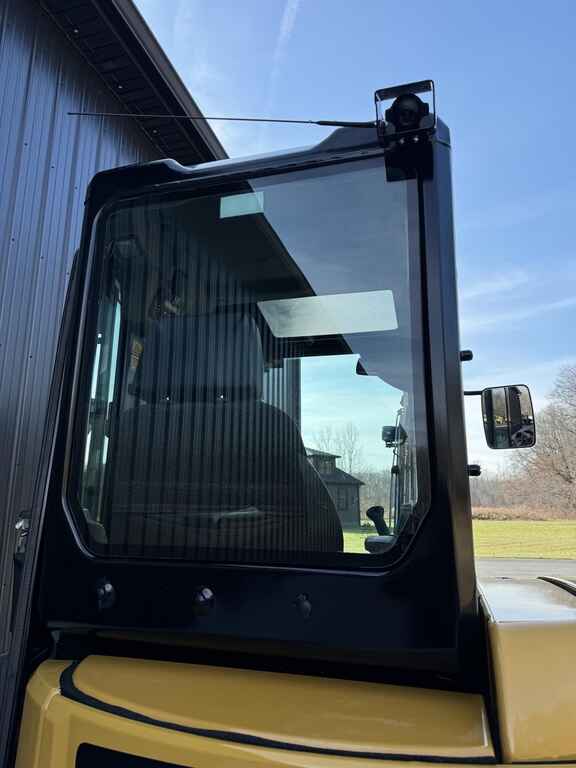

– Enclosed HEAT/AC/RADIO
– Hydraulic Coupler
– 24” Tooth Bucket
– Hydraulic Thumb
– Rear Camera
– 8,200 Lbs
– 25 HP
– NO LEAKS
– NO ISSUES
MACHINE IS TIGHT & READY TO WORK
Swing System
- Machine Swing Speed: 10 rpm
- Swing – Right: 50 degrees
Engine
- Gross Power: 24.8 hp
- Net Power: 23.5 hp
- Displacement: 104 cu in
- Bore: 3.4 in
- Stroke: 3.6 in
- Net Power – ISO 9249: 23.5 hp
- Engine Model: Cat C1.7
- Rated Net Power – ISO 9249: 23.5 hp
- Note: Cat C1.7 engine meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards.
Operational
- Operating Weight: 8209 lb
- Note: Weight includes rubber tracks, bucket, operator, full fuel, and auxiliary lines.
- Operating Weight – With Cab: 8209 lb
- Operating Weight – With Canopy: 7803 lb
Blade
- Height: 13 in
- Width: 5.9 ft
- Lift Height: 16 in

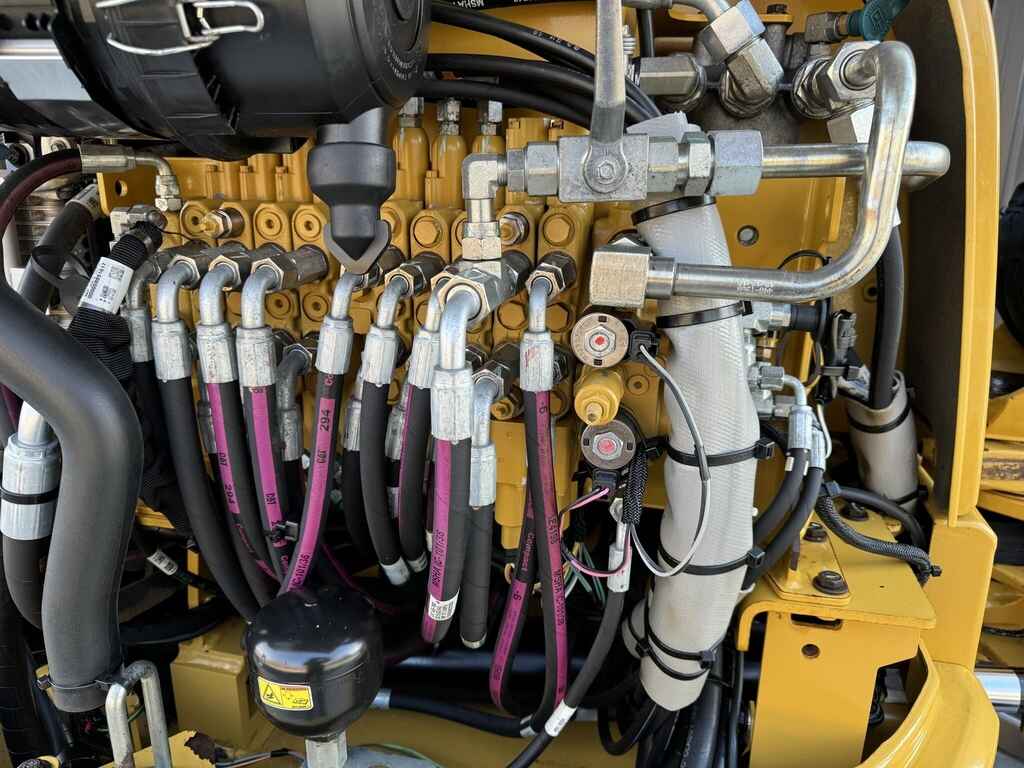

Hydraulic System
- Pump Flow: 26.4 gal/min
- Note: Load sensing hydraulics with variable displacement piston pump.
- Operating Pressure – Swing: 3132 psi
- Operating Pressure – Equipment: 3553 psi
- Operating Pressure – Travel: 3553 psi
- Auxiliary Circuit – Primary: 18.5 gal/min
- Auxiliary Circuit – Secondary: 6.6 gal/min
Digging Force
- Digging Force – Stick – Standard: 4249 lb
- Digging Force – Stick – Long: 3799 lb
- Digging Force – Bucket: 7419 lb
Operating Specifications
- Maximum Dig Depth: 125 in
Service Refill Capacities
- Cooling System: 1.5 gal
- Fuel Tank: 12.2 gal
- Hydraulic Tank: 11.2 gal
- Hydraulic System: 17.2 gal
- Engine Oil: 1.8 gal
Travel System
- Maximum Traction Force – High Speed: 3822 lb
- Maximum Traction Force – Low Speed: 6992 lb
- Travel Speed – High: 2.9 mph
- Travel Speed – Low: 2 mph
- Ground Pressure: 4.6 psi
