2020 CAT 259D3 Track Skid Steer Loader ( Cab with Heat & AC!! Hydraulic Coupler!! Two (2) Speed Travel!! High Flow Auxiliary Hydraulics!!
– 74 HP Engine
– Cab with Heat & AC
– Heated Air Ride Seat

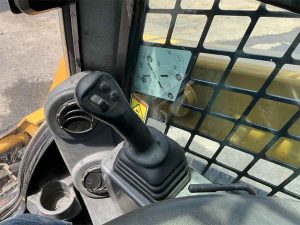

– Joystick Controls
– Hydraulic Bucket Coupler
– Two (2) Speed Travel
– High Flow Auxiliary Hydrualics
– Electric Tool Control Connection
– 3,740 Hours
– This skid steer was a trade-in from a large paving company. We were told that it had quite a few idle hours on it. We sampled the engine oil at time of oil change when it arrived and sent it to the CAT lab for testing. The results were fine and wear levels were normal. The paint is ALL ORIGINAL with the exception of the undercarriage frame rails which we touched up with paint…..Good looking track skid steer!!!!
Engine
- Model: Cat C3.3B DIT (turbo)
- Gross Power: 74.3 hp (55.4 kW)
- Net Power: 73.2 hp (54.6 kW)
- Displacement: 203 in³ (3.3 L)
- Peak Torque: 195 lb-ft (265 N·m) at 1,500 rpm
- Fuel Capacity: 27.7 gal (105 L)
Weights
- Operating Weight: 8,987 lbs (4,076 kg)
Performance
- Rated Operating Capacity (35% tipping load): 2,010 lbs (915 kg)
- Rated Operating Capacity (50% tipping load): 2,900 lbs (1,315 kg)
- Tipping Load: 5,800 lbs (2,630 kg)
- Breakout Force (Tilt Cylinder): 5,035 lbs (22.4 kN)
- Travel Speed (Low Range): 5.9 mph (9.5 km/h)
- Travel Speed (High Range): 8.5 mph (13.7 km/h)
Hydraulics
- Standard Flow: 20 gal/min (76 L/min)
- High Flow (optional): 30 gal/min (114 L/min)
- System Relief Pressure: 3,335 psi (23 MPa)
Dimensions
- Length with Bucket: 137.3 in (3,487 mm)
- Length without Bucket: 108.9 in (2,766 mm)
- Width over Tracks: 66 in (1,676 mm)
- Height to Top of Cab: 83.1 in (2,111 mm)
- Ground Clearance: 8.9 in (226 mm)
- Track Length on Ground: 59 in (1,499 mm)
- Track Width: 12.6 in (320 mm)
- Bucket Pin Height at Maximum Lift: 121 in (3,073 mm)
- Dump Height: 89.9 in (2,283 mm)
- Dump Reach: 23.9 in (607 mm)
Features
- Vertical Lift Design: Provides extended reach and lift height for quick and easy truck loading.
- Suspended Undercarriage: Standard system offers superior traction, flotation, stability, and speed.
- Cab: Sealed and pressurized for a cleaner and quieter operating environment with excellent work tool visibility.
- Controls: Seat-mounted adjustable joystick controls for operator comfort.
- Intelligent Leveling System: Features such as dual-direction self-level, work tool return to dig, and work tool positioner.
- Advanced Display (optional): Provides on-screen adjustments for implement response, hystat response, and creep control.
