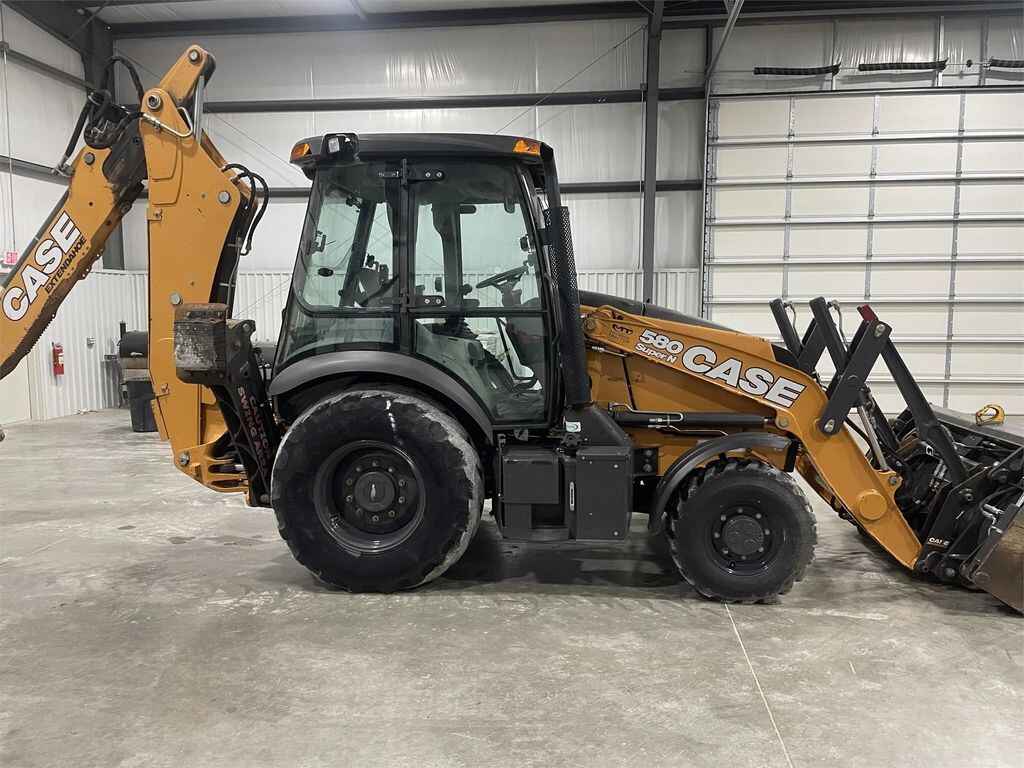

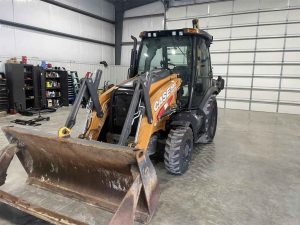

2020 Case Super N extenda-hoe 4×4 pilot controls 4 in 1 bucket nice machine
Engine
- Model: FPT F5BFL413B
- Gross Power: 97 hp (72 kW)
- Net Power: 95 hp (71 kW)
- Displacement: 207.5 in³ (3.4 L)
- Fuel Capacity: 34.9 gal (132 L)
Weights
- Operating Weight (2WD): 16,239 lbs (7,366 kg)
- Operating Weight (4WD): 17,226 lbs (7,814 kg)
Performance
- Backhoe Dig Depth (Standard): 14 ft 6 in (4.4 m)
- Backhoe Dig Depth (Extendahoe): 18 ft (5.5 m)
- Loader Lift Capacity to Full Height: 8,425 lbs (3,822 kg)
- Bucket Breakout Force: 11,450 lbs (5,194 kg)
- Travel Speed (4th Gear Forward): 24 mph (38.8 km/h)
Hydraulics
- Pump Flow Capacity: 40 gal/min (151 L/min)
- System Relief Pressure: 3,450 psi (23.8 MPa)
Dimensions
- Transport Length: 23 ft 4 in (7.11 m)
- Transport Width: 7 ft 1.5 in (2.17 m)
- Transport Height: 10 ft 8 in (3.25 m)
- Wheelbase: 7 ft 1 in (2.15 m)
- Ground Clearance: 1 ft (0.3 m)
