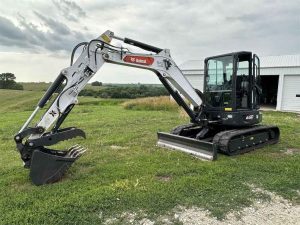

Turbo Diesel, Long Arm, Hyd Clamp, Hydraulic Exchange, Rear Camera, Front blade that angels up to 25 degrees left and right, Bobcat® depth check system is efficient and easy to use, the system delivers accurate dig depth measurement for precise digging performance. LOW HOURS, SUPER CLEAN AND EXTREMLEY WELL CARED FOR MACHINE.
Dimensions
- Max Cutting Height (Boom/Stick Option Hex 1): 12.7 ft
- Max Reach Along Ground: 19.5 ft
- Max Digging Depth: 11.6 ft
- Boom Swing – Left: 75°
- Boom Swing – Right: 50°
- Height to Top of Cab: 8.31 ft
- Length: 218.7 in
- Overall Transport Length: 218.7 in
- Width: 6.44 ft

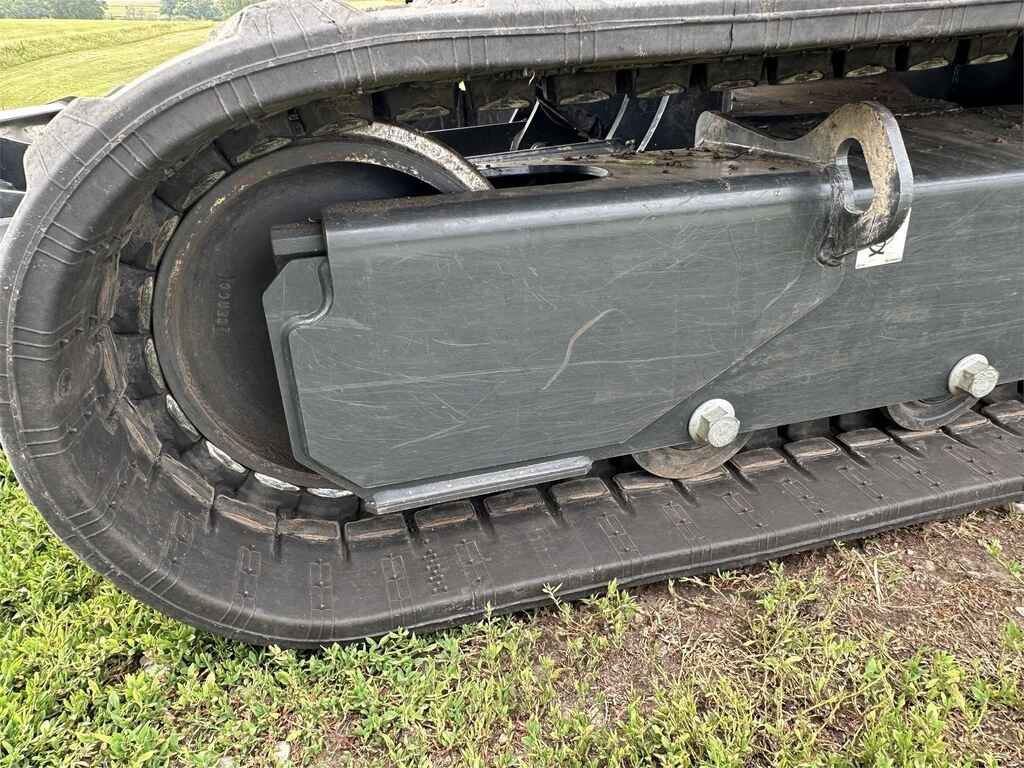

Undercarriage
- Max Travel Speed: 3.1 mph
- Min Travel Speed: 1.9 mph

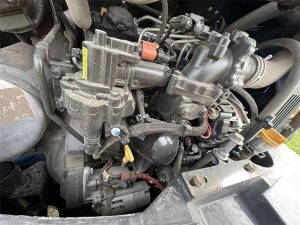

Engine
- Fuel: Diesel
- Net Power: 49.8 hp
- Power Measured @: 2200 rpm
- Aspiration: Tier 4
Operational
- Operating Weight: 10,677 lb
- Fuel Capacity: 21.1 gal
Buckets
- Bucket Digging Force – SAE: 8,977 lb
- Arm Digging Force: 6,744 lb
Hydraulic System
- Standard Pressure: 3,045 psi
- Pump Flow Capacity: 20 gal/min
Lift
- Lift Radius: 118 in
- Max Lift Capacity: 6,034 lb
