PRICE FIRM NO TAX OR FEES
6Month/1500Hr Full Warranty!
VERY CLEAN & WELL KEPT! Just Fully cleaned, serviced, greased & Looked over!
– 465 LIGHTLY USED Hours
– All original Yellow paint!
– Enclosed HEAT/AC

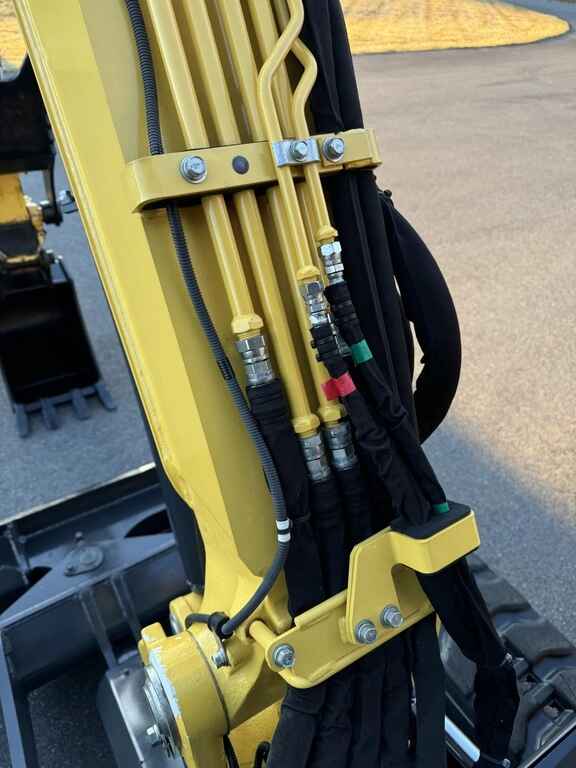

– Auxiliary Hydraulics
– Hydraulic Thumb
– Hydraulic Pin Grabber Coupler

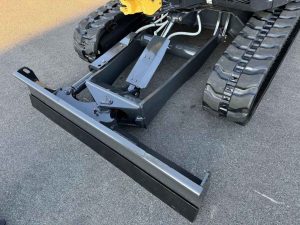

– Hydraulic Angle Backfill Blade
– 12”, 24” & 36” Buckets
– 2 speed
– 10,500 lbs
Machine is TIGHT & READY TO WORK!
Engine
- Model: Yanmar 4TNV88C-PBV
- Gross Power: 39 hp (29.1 kW)
- Displacement: 133.6 in³ (2.19 L)
- Fuel Capacity: 17.4 gal (66 L)
Weights
- Operating Weight (Rubber Tracks, Canopy): 10,417 lbs (4,725 kg)
- Operating Weight (Steel Tracks, Canopy): 10,703 lbs (4,855 kg)
- Operating Weight (Rubber Tracks, Cabin): 10,792 lbs (4,895 kg)
- Operating Weight (Steel Tracks, Cabin): 11,078 lbs (5,025 kg)
Performance
- Maximum Digging Depth: 12 ft 3 in (3.734 m)
- Maximum Reach at Ground Level: 18 ft 8 in (5.74 m)
- Bucket Digging Force: 6,497 lbf (28.9 kN)
- Arm Digging Force: 4,676 lbf (20.8 kN)
- Travel Speed (High/Low): 2.9 mph (4.7 km/h) / 1.5 mph (2.4 km/h)
- Swing Speed: 10 rpm
Hydraulics
- Pump Capacity: 11.2 + 11.2 + 9.7 + 2.8 GPM (42.4 + 42.4 + 36.7 + 10.6 L/min)
- Main Relief Set Pressure: 3,553 x 2 + 3,133 + 566 psi (24.5 x 2 + 21.6 + 3.9 MPa)
Dimensions
- Overall Length: 17 ft 5 in (5.32 m)
- Overall Width: 6 ft 5 in (1.94 m)
- Overall Height: 8 ft 4 in (2.54 m)
- Ground Clearance: 1 ft 2 in (0.35 m)
- Tail Swing Radius: 3 ft 2 in (0.97 m)
Features
- True Zero Tail Swing: Yes
- Auto Deceleration: Standard
- ECO Mode: Standard
- Hydraulic Quick Coupler: Standard
- SmartAssist Remote: Standard
- Cab with HVAC: Optional
