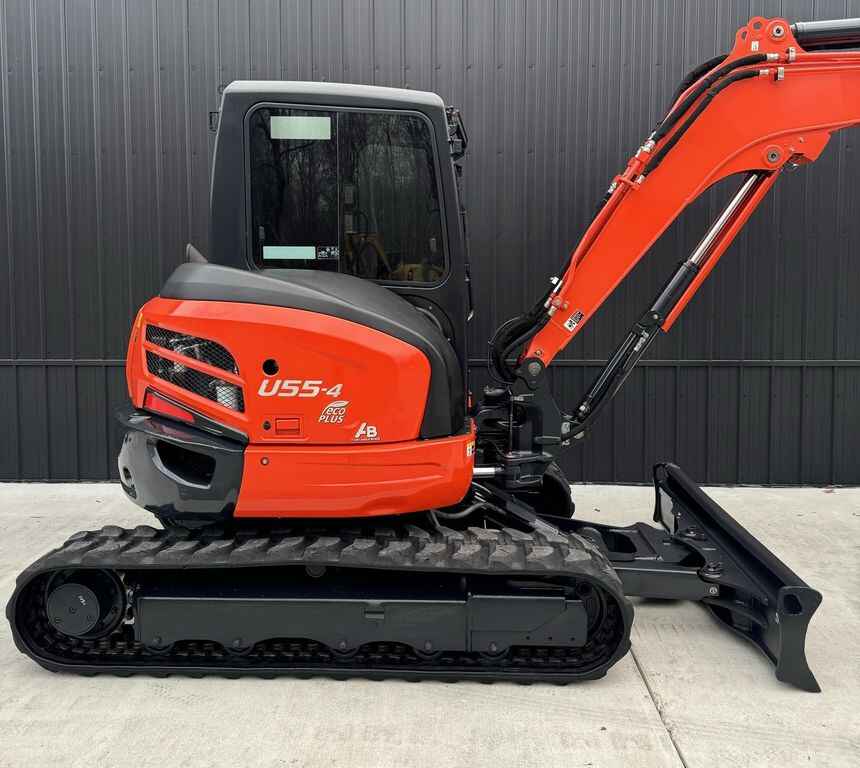

2019 KUBOTA U55-4 Excavator
PRICE FIRM NO TAX OR FEES
6MONTH/1500Hr Full Warranty!
Just serviced, greased, fully cleaned & looked over. Delivery Available!
– 1,430 Well Kept Hours

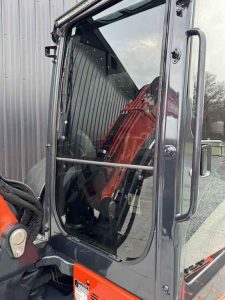

– Enclosed HEAT/AC/RADIO
– Tight Tail Swing
– Hydraulic Thumb
– Quick coupler
– 24” Tooth Bucket & 36” Grading
– Angle Blade
– 2 speed
– 12,800 Lbs
– 48Hp
Machine is READY TO WORK
Engine:
- Engine Model: Kubota V2403-CR-TE4
- Engine Type: 4-Cylinder, Turbocharged, Intercooled Diesel
- Gross Power: 48.6 hp (36.3 kW)
- Net Power: 45.6 hp (34.0 kW)
- Displacement: 2.4 L (146.4 cu in)
- Rated Speed: 2,200 rpm
- Bore x Stroke: 3.5 x 4.4 in (88 x 112 mm)
- Fuel Tank Capacity: 21.1 gal (80 L)
- Cooling System Capacity: 5.5 gal (21 L)
- Engine Oil Capacity: 2.9 gal (11 L)
Dimensions:
- Operating Weight: 12,335 lbs (5,595 kg)
- Overall Length: 18.5 ft (5,640 mm)
- Overall Width: 7.5 ft (2,290 mm)
- Overall Height: 8.0 ft (2,450 mm)
- Height to Top of Cab: 8.0 ft (2,450 mm)
- Track Length: 7.6 ft (2,320 mm)
- Track Width: 2.2 ft (670 mm)
- Tail Swing Radius: 5.0 ft (1,530 mm)
- Ground Clearance: 12.5 in (320 mm)
- Track Gauge: 5.4 ft (1,640 mm)
- Wheelbase: 5.9 ft (1,800 mm)
Performance:
- Max Digging Depth: 12.1 ft (3,690 mm)
- Max Reach (at Ground Level): 18.7 ft (5,690 mm)
- Max Vertical Digging Depth: 8.0 ft (2,430 mm)
- Max Dump Height: 9.4 ft (2,860 mm)
- Bucket Breakout Force: 9,670 lbf (43 kN)
- Arm Breakout Force: 7,260 lbf (32.3 kN)
- Max Digging Radius: 19.3 ft (5,870 mm)
Hydraulic System:
- Hydraulic Pump Flow: 23.8 gal/min (90 L/min)
- Auxiliary Hydraulic Flow: 17.9 gal/min (68 L/min)
- Hydraulic Pressure: 3,065 psi (21,100 kPa)
- Hydraulic Tank Capacity: 9.9 gal (37.5 L)
Undercarriage:
- Track Type: Rubber (standard) or steel (optional)
- Track Gauge: 5.4 ft (1,640 mm)
- Track Width: 2.2 ft (670 mm)
Cab Features:
- ROPS: ISO 3471:2008 (Rollover Protective Structure)
- FOPS: ISO 3449:2005 Level II (Falling Object Protective Structure)
- Operator Station: Spacious, ergonomic, with air conditioning and adjustable seat
- Heater and Air Conditioning: Optional
- Control: Joystick controls, easy-to-reach levers, and pedals
- Operator Presence System: Standard
Brakes and Safety:
- Brakes: Hydraulic wet disc brakes
- Parking Brake: Automatically engaged when the engine is stopped
- Safety Features:
- ROPS (Rollover Protective Structure)
- FOPS (Falling Object Protective Structure)
- Travel alarm
- Back-up alarm
- Safety interlocks for hydraulic and operational functions
Electrical System:
- Alternator: 50A
- Battery: 12V, 600 CCA
- Lights: LED front and rear lights
- Horn: Standard
Operating Specifications:
- Max Travel Speed: 3.1 mph (5 km/h)
- Max Traction Force: 7,800 lbf (34.6 kN)
- Maximum Climbing Angle: 30 degrees
- Swing Speed: 10.8 rpm
- Swing Radius: 6.5 ft (2,000 mm)
Weights and Capacities:
- Operating Weight: 12,335 lbs (5,595 kg)
- Bucket Capacity: 0.21 – 0.4 yd³ (0.16 – 0.31 m³)
- Fuel Tank Capacity: 21.1 gal (80 L)
- Hydraulic Tank Capacity: 9.9 gal (37.5 L)
Optional Attachments:
- Buckets: General-purpose, heavy-duty, and trenching buckets (various sizes)
- Hydraulic Thumb
- Auger, hydraulic breaker, and other attachments available
