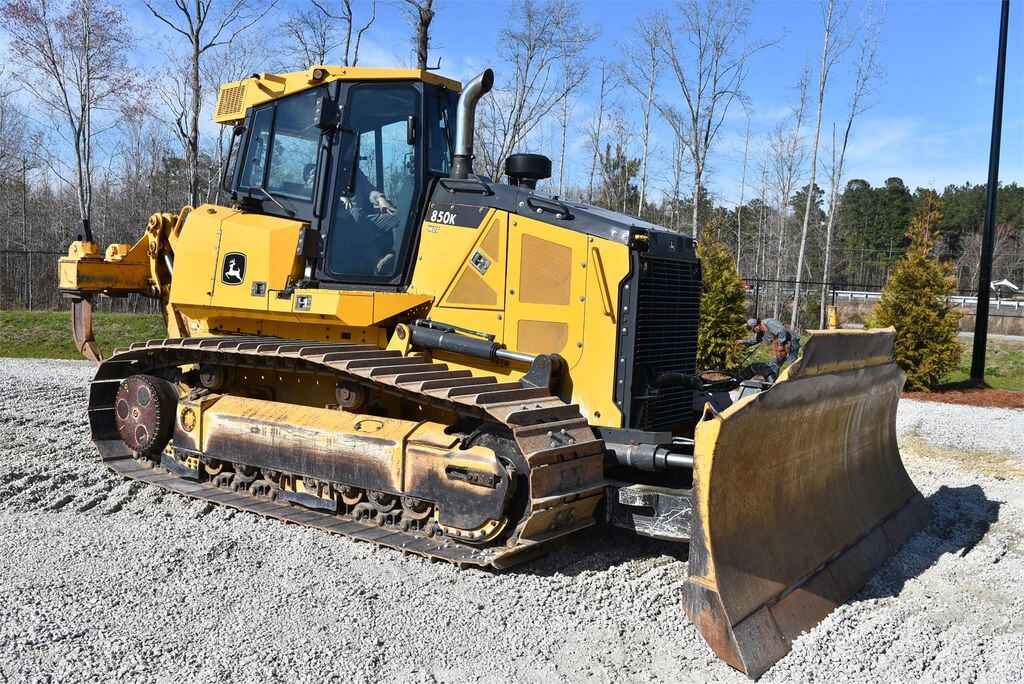

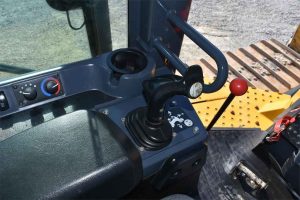

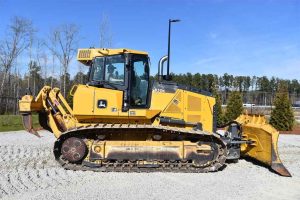

Cab,A/C, meter reads 4103 hours, 6-way blade, multi-shank ripper.

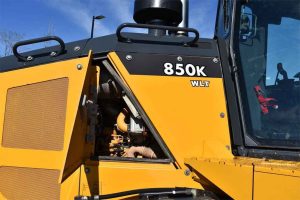

Engine
- Model: John Deere PowerTech PSS 6068
- Net Power: 205 hp (153 kW) @ 1,800 rpm
- Displacement: 415 in³ (6.8 L)
- Emission Rating: EPA Final Tier 4/EU Stage IV
Operating Weight
- Standard Configuration: 42,558 lbs (19,304 kg)
- LGP Configuration: 48,005 lbs (21,775 kg)
Dimensions
- Overall Length (with Blade): 17 ft 8 in (5.38 m)
- Width Over Tracks: 6 ft 2 in (1.88 m)
- Height to Top of Cab: 10 ft 7 in (3.23 m)
- Ground Clearance: 1 ft 4.8 in (0.43 m)
Performance
- Maximum Speed – Forward: 6 mph (9.7 km/h)
- Maximum Speed – Reverse: 6 mph (9.7 km/h)
- Drawbar Pull: 80,000 lbs (355.9 kN)
Undercarriage
- Track Gauge: 6 ft 2 in (1.88 m)
- Track on Ground: 9 ft 1 in (2.77 m)
- Ground Pressure (Standard): 8.2 psi (56.5 kPa)
- Ground Pressure (LGP): 5.8 psi (40.0 kPa)

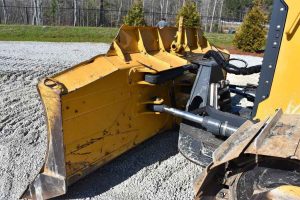

Blade
- Blade Width: 10 ft 8 in (3.25 m)
- Blade Height: 4 ft 2 in (1.27 m)
- Blade Capacity: 5.6 yd³ (4.3 m³)
- Maximum Tilt: 2 ft 6 in (0.76 m)
Hydraulic System
- Pump Flow: 43.1 gal/min (163 L/min)
- System Pressure: 3,625 psi (25.0 MPa)
Fuel Tank
- Capacity: 97.3 gal (368 L)
