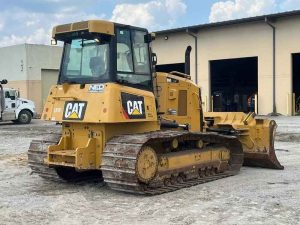

2019 Caterpillar D6K2 LGP Crawler Dozer Tractor A/C Cab 12’ PAT Blade
Engine
- Model: Cat® C4.4 ACERT™ with twin turbo
- Emissions: U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4
- Net Power (Rated): 130 hp (97 kW)
- Displacement: 268.5 in³ (4.4 L)
Weights
- Operating Weight: 30,664 lbs (13,909 kg)
Performance
- Transmission Type: Hydrostatic
- Travel Speed (Forward/Reverse): 0-6.2 mph (0-10 km/h)
- Drawbar Pull: 50,000 lbf (222.4 kN)

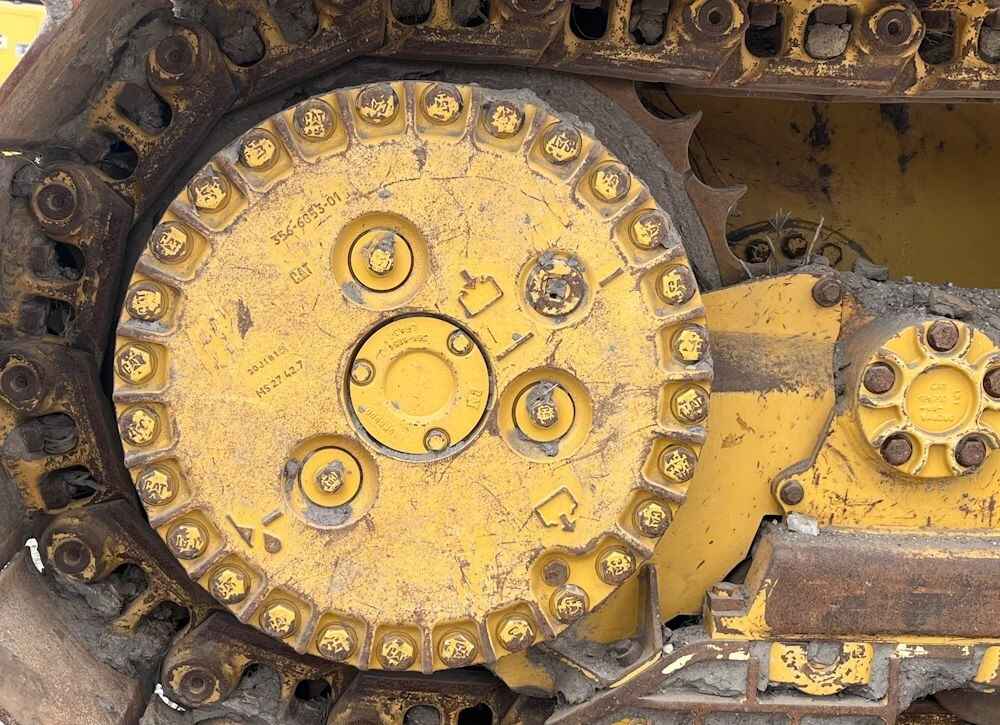

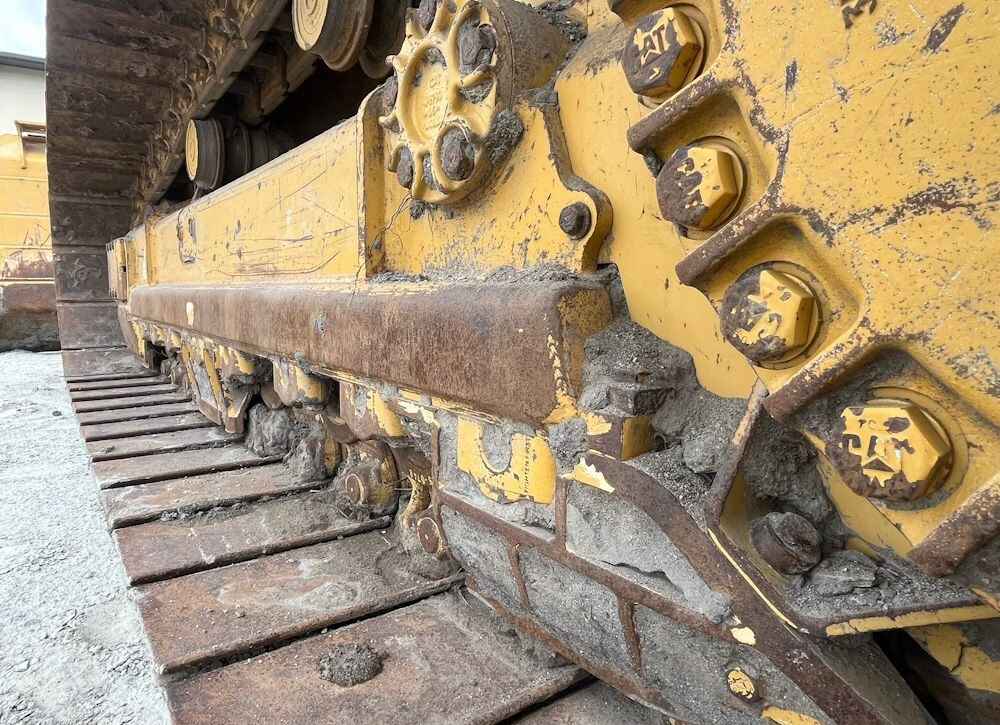

Undercarriage
- Track Gauge: 79 in (2000 mm)
- Width of Shoe: 30 in (760 mm)
- Ground Contact Area: 6,912 in² (4.46 m²)
- Ground Pressure: 4.44 psi (30.6 kPa)

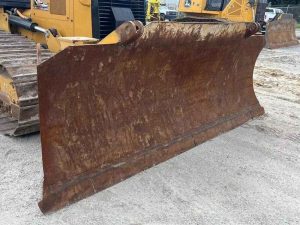

Blade
- Blade Type: VPAT (Variable Pitch Angle Tilt)
- Blade Capacity: 4.98 yd³ (3.81 m³)
- Blade Width Over End Bits: 12 ft (3,682 mm)
Dimensions
- Length (with blade): 15.4 ft (4,700 mm)
- Width (over tracks): 9.81 ft (2,990 mm)
- Height: 9.25 ft (2,820 mm)
- Ground Clearance: 1.25 ft (380 mm)
Service Refill Capacities
- Fuel Tank: 69 gal (260 L)
- DEF Tank: 5 gal (19 L)
- Cooling System: 7.9 gal (30 L)
- Engine Crankca
