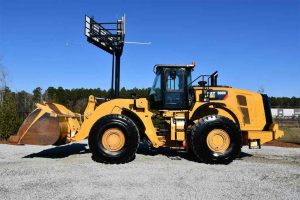

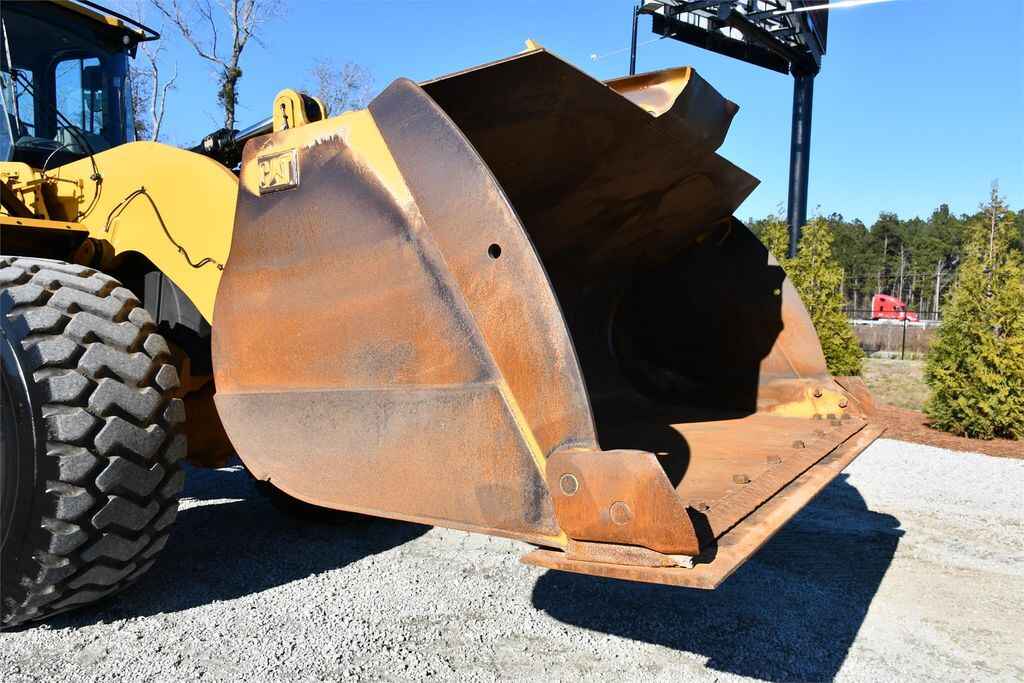

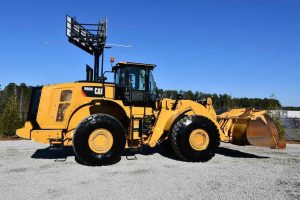

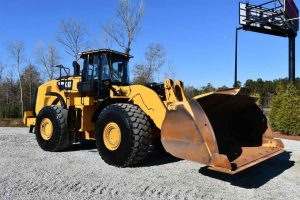

Cab,A/C, heat, meter reads 12554 hours, 29.5-R25 tires, 8.25 yard bucket. grease system, backup camera, super clean and tight unit.
Engine
- Model: Cat® C13 ACERT™
- Gross Power: 425 hp (317 kW)
- Net Power: 386 hp (288 kW)
- Displacement: 763 in³ (12.5 L)
- Peak Torque: 1,627 lb-ft (2,207 Nm) at 1,200 rpm
Weights
- Operating Weight: 66,337 lbs (30,090 kg)
Performance
- Bucket Capacities: 5.25 to 16.0 yd³ (4.2 to 12.2 m³)
- Breakout Force: 50,357 lbs (224 kN)
- Static Tipping Load (Full Turn): 45,307 lbs (20,551 kg)
- Hydraulic Cycle Time (Total): 10.1 seconds
Transmission
- Type: Cat Planetary Power Shift
- Forward Gears: 4
- Reverse Gears: 4
- Max Forward Speed: 24.5 mph (39.5 km/h)
- Max Reverse Speed: 24.5 mph (39.5 km/h)
Hydraulics
- Implement System – Maximum Pump Output: 119 gal/min (450 L/min)
- System Relief Pressure: 4,975 psi (34,300 kPa)
Dimensions
- Length with Bucket on Ground: 26 ft 2 in (7.964 m)
- Width over Tires: 10 ft 10 in (3.296 m)
- Height to Top of Cab: 12 ft 7 in (3.83 m)
- Ground Clearance: 1 ft 5 in (0.42 m)
- Wheelbase: 12 ft 6 in (3.8 m)
Service Refill Capacities
- Fuel Tank: 112.5 gal (426 L)
- Cooling System: 14 gal (53 L)
- Crankcase: 10 gal (37 L)
- Transmission: 20 gal (77 L)
- Hydraulic Tank: 40 gal (151 L)
- Front Axle/Differential: 22 gal (83 L)
- Rear Axle/Differential: 22 gal (83 L)
