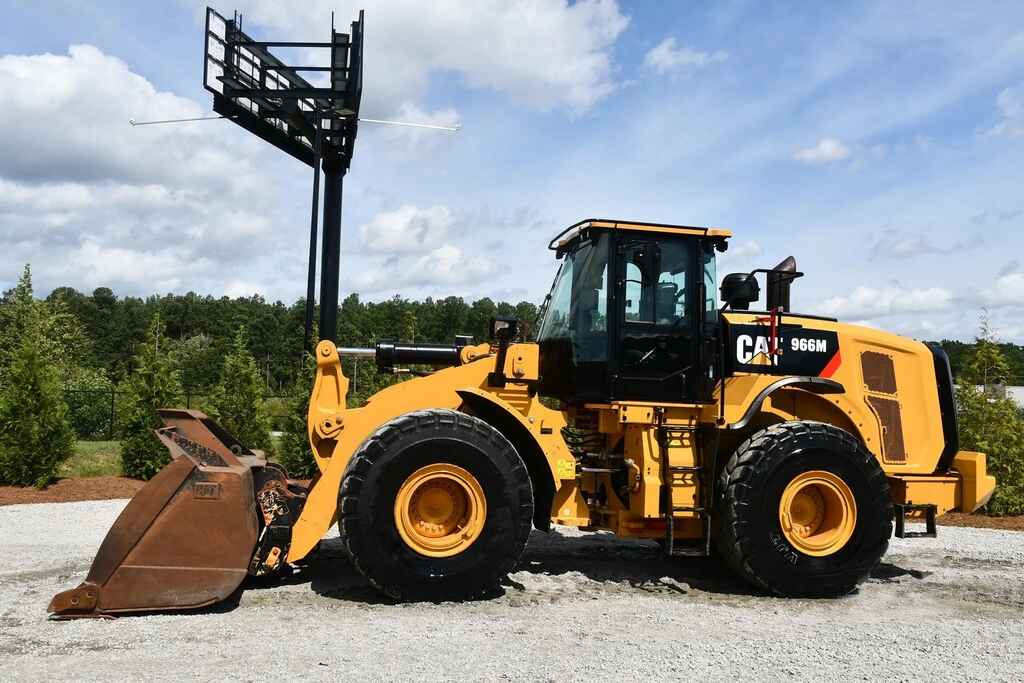

Cab, A/C, meter reads 5934 hours, GP bucket, CAT INFUSION quick coupler, CAT forks are included.
Dimensions – High Lift
- Ground Clearance: 1.42 ft (43.3 cm)
- Wheel Base: 11.67 ft (355.7 cm)
- Centerline Of Rear Axle To Edge Of Counterweight: 8.17 ft (249.6 cm)
- Centerline Of Rear Axle To Hitch: 5.83 ft (177.8 cm)

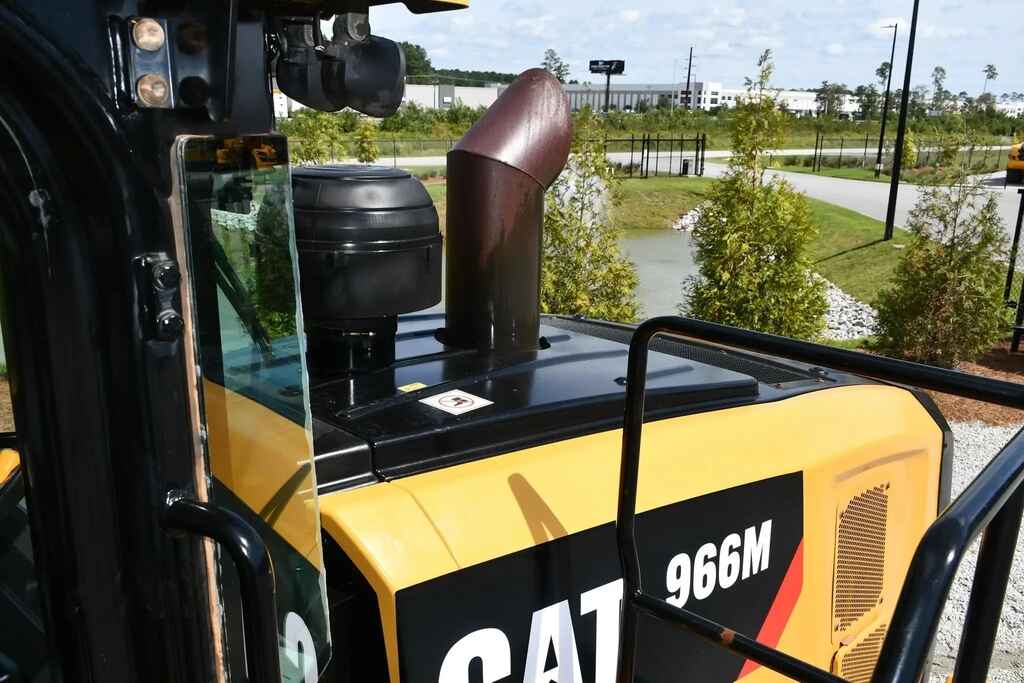

- Height – Top Of Exhaust Pipe: 11.58 ft (353.8 cm)
- Height – Top Of Hood: 9.25 ft (281.9 cm)
- Height – Top Of Rops: 11.75 ft (358.1 cm)
- Hinge Pin Height At Carry: 2.58 ft (78.5 cm)
- Hinge Pin Height At Maximum Lift: 15.75 ft (479.2 cm)
- Lift Arm Clearance At Maximum Lift: 13.58 ft (414.1 cm)
- Maximum Width Over Tires: 9.83 ft (300.7 cm)
- Overall Length – Without Bucket: 26.58 ft (810.6 cm)
- Rack Back – Carry Height: 49 degrees
- Rack Back – Maximum Lift: 71 degrees
- Rack Back At Ground: 39 degrees
- Tread Width: 7.33 ft (223.5 cm)
Note: All dimensions are approximate and based on L3 XHA2 tires.
Dimensions – Standard Lift
- Ground Clearance: 1.42 ft (43.3 cm)
- Rack Back – Maximum Lift: 62 degrees
- Centerline Of Rear Axle To Edge Of Counterweight: 7.17 ft (218.1 cm)
- Lift Arm Clearance At Maximum Lift: 11.92 ft (363.2 cm)
- Centerline Of Rear Axle To Hitch: 5.83 ft (177.8 cm)
- Maximum Width Over Tires: 9.83 ft (300.7 cm)
- Tread Width: 7.33 ft (223.5 cm)
- Height – Top Of Exhaust Pipe: 11.58 ft (353.8 cm)
- Height – Top Of Hood: 9.25 ft (281.9 cm)
- Overall Length – Without Bucket: 23.92 ft (729.9 cm)
- Height – Top Of Rops: 11.75 ft (358.1 cm)
- Rack Back At Ground: 42 degrees
- Hinge Pin Height At Carry: 2.08 ft (63.4 cm)
- Rack Back – Carry Height: 50 degrees
- Wheel Base: 11.67 ft (355.7 cm)
- Hinge Pin Height At Maximum Lift: 13.92 ft (424.4 cm)
Note: All dimensions are approximate and based on L3 XHA2 tires.
Engine Specifications
- Displacement: 568 cu in (9.3 L)
- Bore: 4.6 in (11.7 cm)
- Stroke: 5.9 in (15.0 cm)
- Net Power (ISO 9249): 276 hp
- Engine Model: Cat® C9.3 ACERT®
Other Specifications
- Air Conditioning System Note: The system contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). It holds 1.6 kg of refrigerant with a CO2 equivalent of 2.288 metric tonnes.
Peak Gross Torque (1,200 rpm)
- SAE J1995: 1,179 lb-ft (1,597.2 Nm)
- ISO 14396: 1,166 lb-ft (1,577.6 Nm)
Maximum Net Power (1,700 rpm)
- ISO 9249: 276 hp (206.3 kW)
- SAE J1349: 276 hp (206.3 kW)
Maximum Net Torque (1,000 rpm):
- 1,126 lb-ft (1,523.5 Nm)
