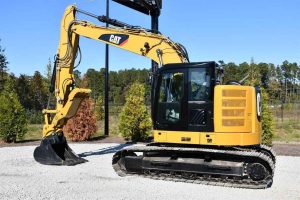

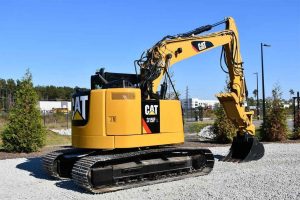

Cab, A/C, meter reads 2859 hours, quick coupler, GP bucket, NEW hydraulic thumb.
Engine
- Model: Cat C4.4 ACERT
- Net Power: 97 hp (72 kW)
- Displacement: 270 in³ (4.4 L)
- Emissions: U.S. EPA Tier 4 Final
Weights
- Operating Weight: 37,794 lbs (17,140 kg)
Performance
- Maximum Digging Depth: 19 ft 6 in (5.95 m)
- Maximum Reach at Ground Level: 28 ft 6 in (8.68 m)
- Bucket Digging Force (SAE): 19,200 lbf (85.4 kN)
- Stick Digging Force (SAE): 12,800 lbf (56.9 kN)
- Maximum Travel Speed: 3.4 mph (5.5 km/h)
- Maximum Drawbar Pull: 25,400 lbf (113 kN)
Hydraulics
- Main System Maximum Flow: 67 gal/min (254 L/min)
- Maximum Pressure – Equipment: 4,420 psi (30,500 kPa)
- Maximum Pressure – Travel: 5,080 psi (35,000 kPa)
- Maximum Pressure – Swing: 3,340 psi (23,000 kPa)
Dimensions
- Transport Length: 26 ft 3 in (8.0 m)
- Transport Width: 8 ft 6 in (2.59 m)
- Transport Height: 9 ft 10 in (3.0 m)
- Tail Swing Radius: 4 ft 11 in (1.5 m)
- Ground Clearance: 1 ft 5 in (0.42 m)
Service Refill Capacities
- Fuel Tank: 47 gal (178 L)
- Cooling System: 7.4 gal (28 L)
- Engine Oil: 3.6 gal (14 L)
- Hydraulic System (including tank): 42.3 gal (160 L)
- Hydraulic Tank: 22.2 gal (84 L)
- Final Drive (each): 0.8 gal (3 L)
- DEF Tank: 5 gal (19 L)
