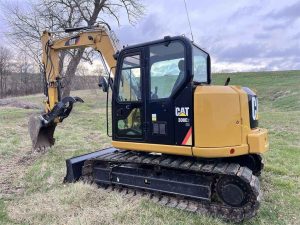

Incredibly clean 308cr E2. Almost showroom condition. Very clean and ready to work. Comes with two buckets. The one shown and a 12 inch bucket as well.
Engine
- Model: Cat C3.3B
- Gross Power: 66.6 hp (49.7 kW)
- Net Power: 65 hp (48.5 kW)
- Displacement: 203.2 in³ (3.33 L)
- Emissions: Meets U.S. EPA Tier 4 Final and EU Stage IIIB emission standards
Weights
- Operating Weight: 18,519 lbs (8,400 kg)
Performance
- Maximum Digging Depth: 13 ft 7.5 in (4,150 mm)
- Maximum Reach at Ground Level: 25 ft 6.5 in (7,780 mm)
- Bucket Digging Force: 13,534 lbf (60.2 kN)
- Stick Digging Force (Standard): 9,015 lbf (40.1 kN)
- Stick Digging Force (Long): 7,891 lbf (35.1 kN)
- Travel Speed (High): 3.2 mph (5.1 km/h)
- Travel Speed (Low): 1.8 mph (2.8 km/h)
Hydraulics
- Main System – Maximum Flow: 39.6 gal/min (150 L/min)
- Auxiliary Circuit – Primary (186 bar/2,734 psi): 33.8 gal/min (128 L/min)
- Auxiliary Circuit – Secondary (174 bar/2,524 psi): 16.9 gal/min (64 L/min)
- Operating Pressure – Equipment: 4,061 psi (28,000 kPa)
- Operating Pressure – Travel: 4,061 psi (28,000 kPa)
- Operating Pressure – Swing: 3,481 psi (24,000 kPa)
Dimensions
- Overall Length: 21 ft 6 in (6,550 mm)
- Overall Width: 7 ft 7 in (2,320 mm)
- Overall Height: 8 ft 4 in (2,540 mm)
- Tail Swing Radius: 5 ft 3 in (1,600 mm)
- Ground Clearance: 1 ft 1 in (335 mm)
Features
- Compact Radius Design: Allows operation in confined spaces
- Operator Environment: Spacious cab with ergonomic controls
- Hydraulic System: Load sensing hydraulics with variable displacement piston pump
- Auxiliary Hydraulics: Standard with quick connectors
- Blade: Width of 7 ft 7 in (2,320 mm) and height of 17.8 in (452 mm)
