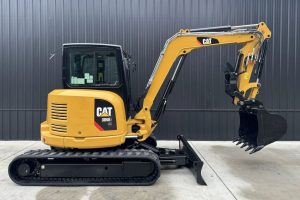

2019 CAT 305E2 & 3 Buckets
PRICE FIRM NO TAX OR FEES
Comes with 6M/1500HR FULL WARRANTY! Machine was just fully cleaned, serviced, greased and looked over. VERY LIGHTLY USED.
– ONLY 514 Hours!

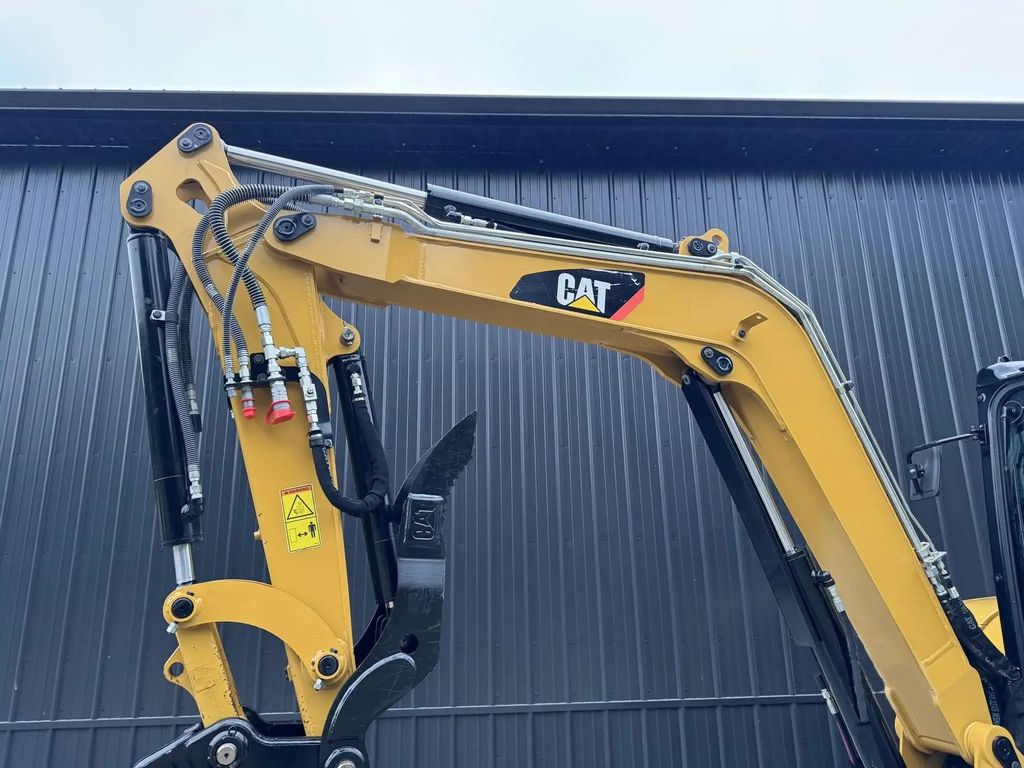

– Hydraulic Thumb
– Dual Auxiliaries
– Hydraulic Angle Blade
– Heat/AC/Radio
– 2 Speed
– Manual Coupler (Plumbed for Hyd.)
– 12″ 24” & 36″ tooth buckets
– Just Fully Serviced
– 42 Hp
– 11,500 Lbs
MACHINE IS TIGHT & READY TO WORK
Engine:
- Engine Model: Cat C2.4
- Engine Type: 4-cylinder, turbocharged
- Net Power: 56 hp (41.7 kW)
- Engine Power (ISO 9249): 56 hp (41.7 kW)
- Engine Speed (Rated): 2,400 rpm
- Engine Displacement: 2.4 L (146.5 cu in)
- Bore: 3.4 in (86 mm)
- Stroke: 4.4 in (112 mm)
- Fuel Tank Capacity: 20.3 gal (77 L)
- Cooling System Capacity: 4.5 gal (17 L)
Dimensions:
- Operating Weight: 11,300 lbs (5,125 kg)
- Length (with blade): 17.3 ft (5,278 mm)
- Width: 6.6 ft (2,010 mm)
- Height to Top of Cab: 8.0 ft (2,438 mm)
- Ground Clearance: 10.2 in (260 mm)
- Track Length: 7.5 ft (2,290 mm)
- Track Width: 2.6 ft (785 mm)
- Tail Swing Radius: 4.1 ft (1,241 mm)
- Wheelbase: 5.1 ft (1,550 mm)
Performance:
- Max Digging Depth: 12.6 ft (3,840 mm)
- Max Reach (at Ground Level): 19.8 ft (6,030 mm)
- Max Vertical Digging Depth: 8.6 ft (2,620 mm)
- Max Dig Height: 18.4 ft (5,600 mm)
- Max Dump Height: 12.2 ft (3,710 mm)
- Bucket Breakout Force: 9,196 lbf (40.9 kN)
- Arm Breakout Force: 5,575 lbf (24.8 kN)
- Operating Range (Swing Radius): 6.9 ft (2,100 mm)
- Max Lift Capacity: 3,880 lbs (1,760 kg)
Hydraulic System:
- Main Hydraulic Pump Flow: 36.3 gal/min (137 L/min)
- Auxiliary Hydraulic Flow: 21.9 gal/min (83 L/min)
- Max Operating Pressure: 3,400 psi (23,450 kPa)
Undercarriage:
- Track Gauge: 5.5 ft (1,690 mm)
- Track Type: Rubber
- Undercarriage Design: Conventional tail swing
Cab Features:
- ROPS: ISO 3471:2008
- FOPS: ISO 3449:2005 Level II
- Operator Station: Ergonomically designed with fully adjustable seat, controls, and a fully integrated display
- Heating System: Standard
- Air Conditioning: Optional
- Joystick Controls: Standard
Brakes and Safety:
- Brakes: Hydraulic wet disc brakes
- Parking Brake: Automatic
- Safety Features:
- ISO standard rollover protection (ROPS)
- Falling object protection (FOPS)
- Seatbelt interlock
- Back-up alarm
- Travel alarm
Operating Specifications:
- Max Travel Speed: 2.8 mph (4.5 km/h)
- Max Arm Force (Lift): 4,720 lbf (21 kN)
- Max Arm Force (Dig): 7,445 lbf (33 kN)
Hydraulic Pressure Settings:
- Auxiliary Hydraulic Pressure: 3,500 psi (24,130 kPa)
Weights and Capacities:
- Operating Weight: 11,300 lbs (5,125 kg)
- Bucket Capacity: 0.5 – 1.0 yd³ (0.38 – 0.76 m³)
- Fuel Tank Capacity: 20.3 gal (77 L)
- Hydraulic Tank Capacity: 11.6 gal (44 L)
