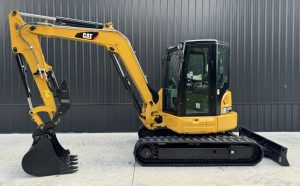

2019 CAT 305.5E2 Excavator
PRICE FIRM NO TAX OR FEES
6M/1500Hr Full Warranty!
Machine was just fully cleaned, greased, serviced and looked over. Photos just taken.
– 1,743 Well Kept hours
– 6M/1500Hr Full Warranty!

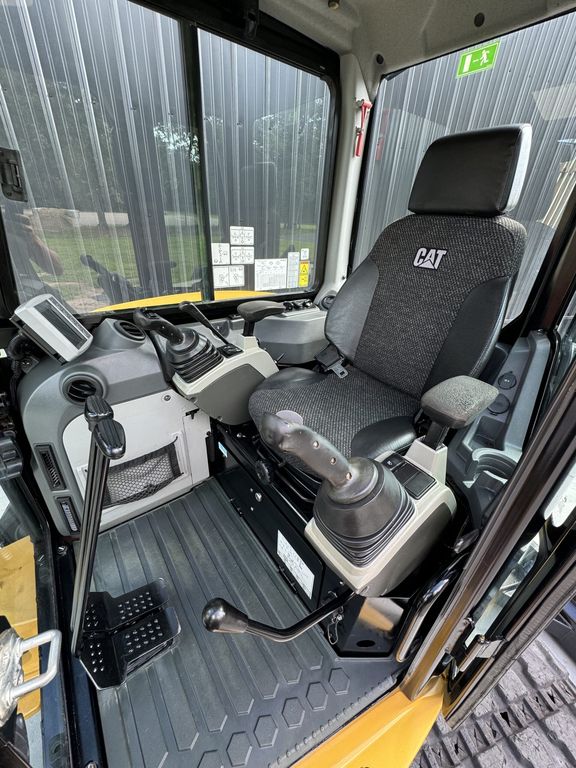

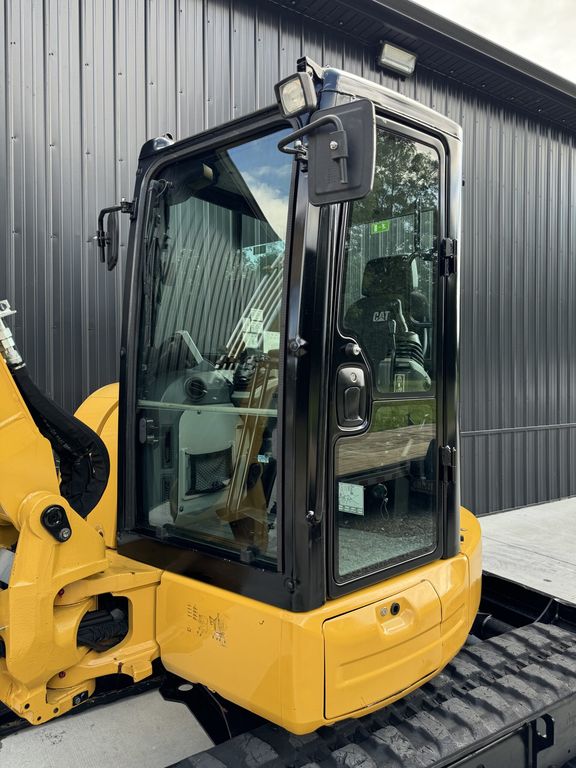

– Enclosed HEAT/AC/RADIO
– Hydraulic Thumb
– Manual Quick Coupler
– 2 speed
– 36” Tooth bucket
– 46 Hp
– 12k Lbs
Please note: Photos and videos of our machines are taken at different times. Some variation in appearance is normal due to cleaning or use during operation.
Engine
- Model: Cat C2.4
- Net Power: 44.1 hp (32.9 kW)
- Gross Power: 45.7 hp (34.1 kW)
- Displacement: 146 in³ (2.4 L)
- Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards
Weights
- Operating Weight (Cab, Standard Stick): 11,863 lbs (5,380 kg)
- Operating Weight (Cab, Long Stick): 11,958 lbs (5,423 kg)
Performance
- Maximum Dig Depth (Standard Stick): 11 ft 5 in (3,470 mm)
- Maximum Dig Depth (Long Stick): 12 ft 8 in (3,870 mm)
- Maximum Reach at Ground Level (Standard Stick): 18 ft 6 in (5,630 mm)
- Maximum Reach at Ground Level (Long Stick): 19 ft 9 in (6,020 mm)
- Maximum Dump Clearance (Standard Stick): 12 ft 6 in (3,820 mm)
- Maximum Dump Clearance (Long Stick): 13 ft 5 in (4,080 mm)
- Bucket Digging Force: 11,445 lbf (50.9 kN)
- Stick Digging Force (Standard Stick): 6,500 lbf (28.9 kN)
- Stick Digging Force (Long Stick): 5,575 lbf (24.8 kN)
Hydraulics
- Main Pump Flow: 39.6 gal/min (150 L/min)
- Auxiliary Circuit – Primary: 21.1 gal/min (80 L/min) at 2,734 psi (186 bar)
- Auxiliary Circuit – Secondary: 6.6 gal/min (25 L/min) at 2,524 psi (174 bar)
- Operating Pressure – Equipment: 3,553 psi (245 bar)
- Operating Pressure – Travel: 3,553 psi (245 bar)
- Operating Pressure – Swing: 3,132 psi (216 bar)
Dimensions
- Overall Length (Standard Stick): 17 ft 6 in (5,330 mm)
- Overall Length (Long Stick): 17 ft 11 in (5,460 mm)
- Overall Width: 6 ft 6 in (1,980 mm)
- Overall Height: 8 ft 4 in (2,550 mm)
- Tail Swing Radius: 3 ft 8 in (1,130 mm)
- Ground Clearance: 1 ft 4 in (405 mm)
Travel System
- Travel Speed – High: 2.8 mph (4.5 km/h)
- Travel Speed – Low: 1.7 mph (2.8 km/h)
- Maximum Traction Force – High Speed: 6,025 lbf (26.8 kN)
- Maximum Traction Force – Low Speed: 10,746 lbf (47.8 kN)
- Gradeability (maximum): 30°
Service Refill Capacities
- Cooling System: 2.8 gal (10.5 L)
- Engine Oil: 2.5 gal (9.5 L)
- Fuel Tank: 16.6 gal (63 L)
- Hydraulic Tank: 18 gal (68.3 L)
- Hydraulic System: 20.6 gal (78 L)
