PRICE FIRM NO TAX OR FEES
6M/1500Hr FULL Warranty!
VERY LIGHTLY USED! TIGHT!
Machine was just fully cleaned, greased, serviced and looked over. Photos just taken. Shipping Available!

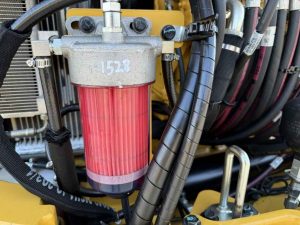

– 1,528 LIGHTLY USED hours!
– Serviced & Greased Religiously!

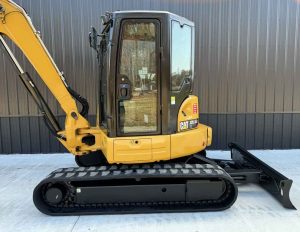

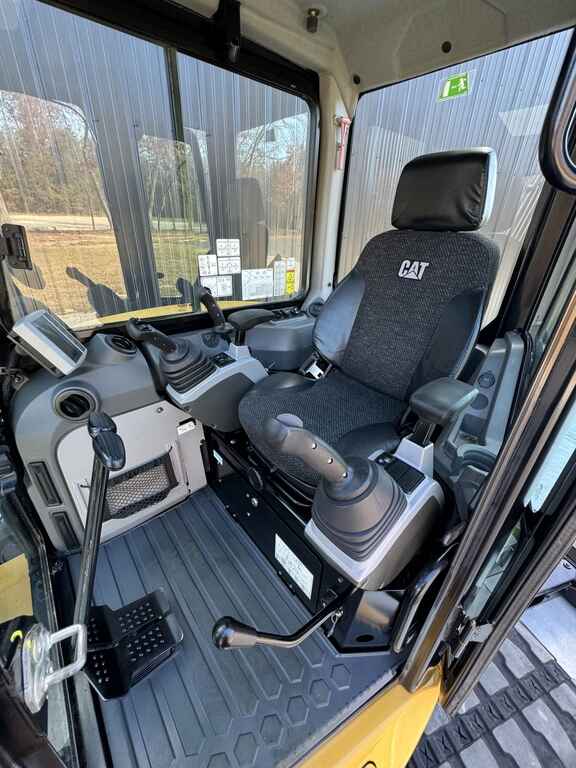

– Enclosed HEAT/AC/RADIO

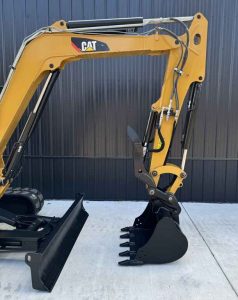

– Hydraulic Thumb
– Hydraulic Quick Coupler
– Hydraulic Angle blade
– Counter Weight
– 2 speed
– 12″, 24” & 36″ tooth buckets
– 12k Lbs

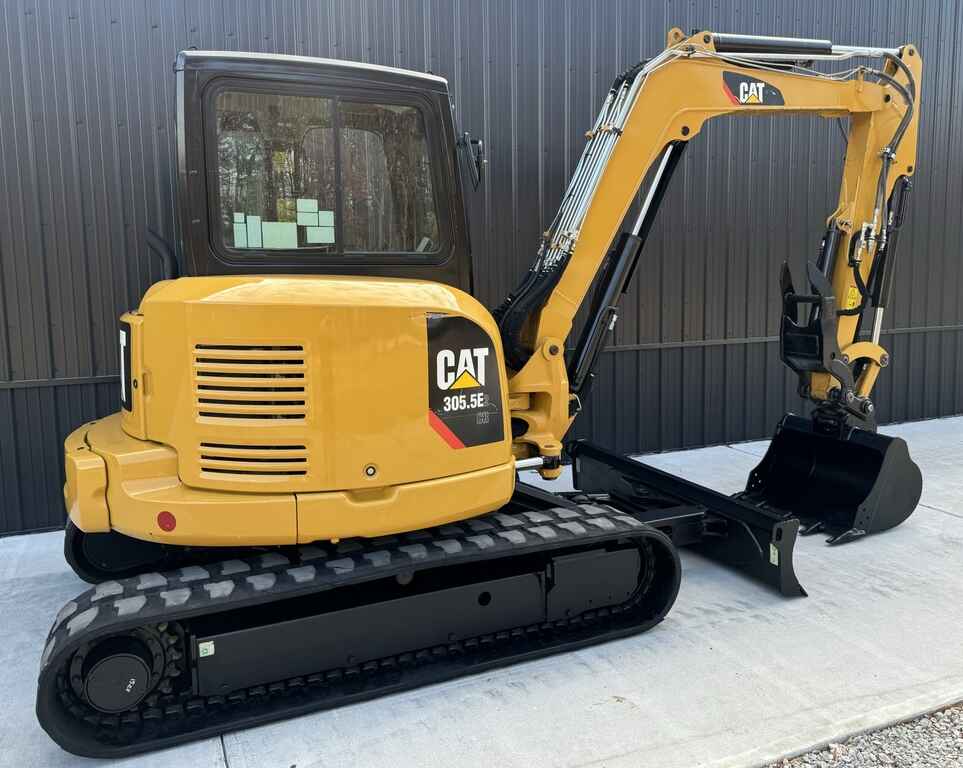

Machine is TIGHT & READY TO WORK
Engine
- Model: Cat C2.4
- Net Power: 40.2 hp (30 kW)
- Gross Power: 41.8 hp (31.2 kW)
- Displacement: 146 in³ (2.4 L)
- Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards
Weights
- Operating Weight (Cab, Standard Stick): 11,334 lbs (5,140 kg)
- Operating Weight (Cab, Long Stick): 11,443 lbs (5,185 kg)
Performance
- Maximum Dig Depth (Standard Stick): 129 in (3,280 mm)
- Maximum Dig Depth (Long Stick): 144 in (3,660 mm)
- Maximum Reach at Ground Level (Standard Stick): 210 in (5,330 mm)
- Maximum Reach at Ground Level (Long Stick): 229 in (5,820 mm)
- Bucket Digging Force: 10,050 lbf (44.7 kN)
- Stick Digging Force (Standard Stick): 5,550 lbf (24.7 kN)
- Stick Digging Force (Long Stick): 4,788 lbf (21.3 kN)
Hydraulics
- Hydraulic System Type: Load Sensing Hydraulics with Variable Displacement Piston Pump
- Pump Flow at 2,400 rpm: 39.6 gal/min (150 L/min)
- Operating Pressure – Equipment: 3,553 psi (24.5 MPa)
- Operating Pressure – Swing: 3,132 psi (21.6 MPa)
- Operating Pressure – Travel: 3,553 psi (24.5 MPa)
Dimensions (Standard Stick)
- Overall Length: 204 in (5,180 mm)
- Overall Width: 78 in (1,980 mm)
- Overall Height: 100 in (2,540 mm)
- Tail Swing Radius: 43 in (1,090 mm)
- Ground Clearance: 12 in (305 mm)
Travel System
- Travel Speed – High: 2.7 mph (4.4 km/h)
- Travel Speed – Low: 1.7 mph (2.8 km/h)
- Maximum Traction Force – High Speed: 5,418 lbf (24.1 kN)
- Maximum Traction Force – Low Speed: 10,161 lbf (45.2 kN)
- Gradeability – Maximum: 30°
Service Refill Capacities
- Fuel Tank: 16.6 gal (63 L)
- Hydraulic Tank: 18 gal (68.3 L)
- Hydraulic System: 20.6 gal (78 L)
- Engine Oil: 2.5 gal (9.5 L)
- Cooling System: 2.8 gal (10.5 L)
