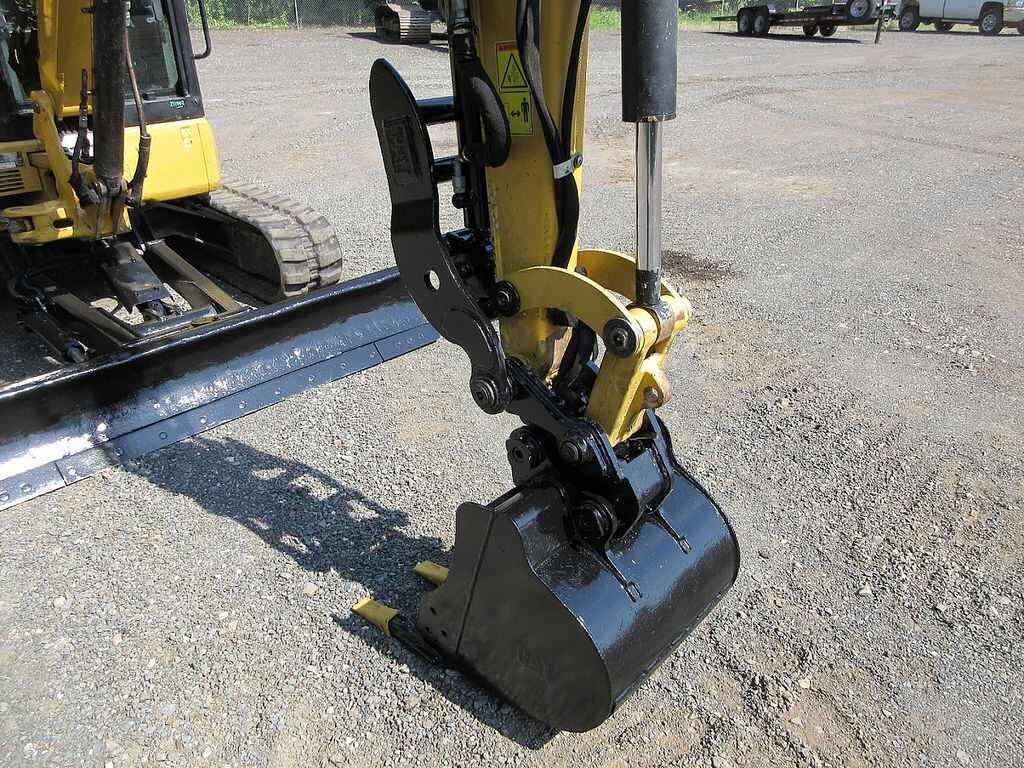

4 CYL CATERPILLAR DIESEL, CAB WITH HEAT, A/C, STEREO, AUTO IDLE, 2 SPEED TRAVEL, 12”,24” & 36″ BUCKET, ANGLE BACKFILL BLADE, SWING BOOM, AUX HYD, HYD THUMB, 5′ 4″ STICK, HYD COUPLER, BUCKET WITH TEETH, METER READS 1571 HOURS, S/N CAT0304ECME406776, 6M/1500Hr FULL WARRANTY!

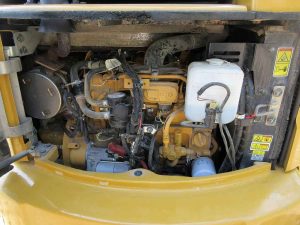

Engine
- Model: Cat C2.4 Turbo
- Net Power: 55 hp (41 kW)
- Gross Power: 56 hp (41.8 kW)
- Displacement: 145.6 in³ (2.4 L)
- Fuel Capacity: 18.5 gal (70.1 L)
Weights
- Operating Weight: 8,930 lbs (4,050 kg)
Performance
- Dig Depth: 12 ft 7 in (3.84 m)
- Max Reach at Ground Level: 19 ft 6 in (5.94 m)
- Max Dump Height: 12 ft 4 in (3.76 m)
- Bucket Breakout Force: 9,286 lbf (41.3 kN)
- Stick Breakout Force: 6,180 lbf (27.5 kN)
- Travel Speed: 2.8 mph (4.5 km/h)
Hydraulics
- Pump Flow Capacity: 22.6 gal/min (85.7 L/min)
- Hydraulic System Relief Pressure: 3,165 psi (21.8 MPa)
Dimensions
- Transport Length: 19 ft 8 in (6.0 m)
- Transport Width: 7 ft 5 in (2.26 m)
- Height to Top of Cab: 8 ft 3 in (2.51 m)
- Ground Clearance: 1 ft (0.3 m)
- Track Width: 18 in (450 mm)
