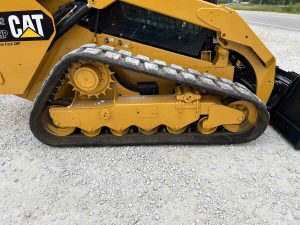

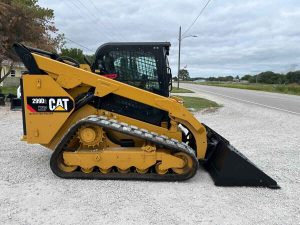

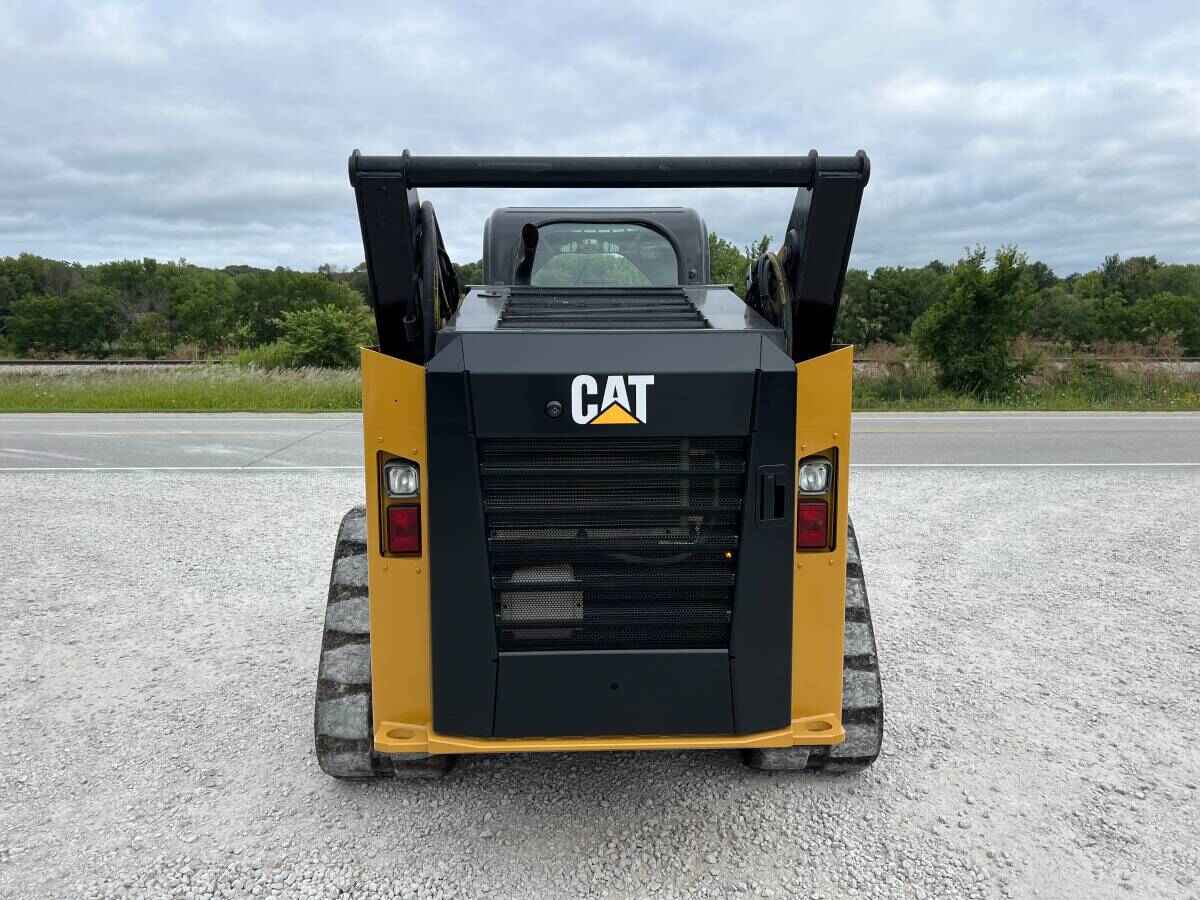

2019 Caterpillar 299D2 XPS High Flow Crawler Skid Steer Loader, Huge Machine!!!! Machine has 2500 hours, Full cab with Heat and Air, heated air ride seat, backup camera, 98 hp cat diesel, cat pilot hand controls, hydraulic power quick tach, High Flow and Standard flow aux hyd, nice 84″ smooth bucket, Very Good Tracks and Sprockets rated at 80%, unit has a 4200 lbs lift cap.
Engine
- Model: Cat C3.8 DIT (turbo)
- Net Power: 95 hp (71 kW)
- Gross Power: 98 hp (73 kW)
- Displacement: 232 in³ (3.8 L)
- Peak Torque at 1,500 rpm: 246 lb-ft (334 N·m)
Weights
- Operating Weight: 11,275 lbs (5,115 kg)
Performance
- Rated Operating Capacity (50% tipping load): 4,600 lbs (2,087 kg)
- Rated Operating Capacity (35% tipping load): 3,200 lbs (1,451 kg)
- Tipping Load: 9,200 lbs (4,173 kg)
- Breakout Force – Tilt Cylinder: 7,270 lbs (32.3 kN)
- Breakout Force – Lift Cylinder: 6,162 lbs (27.4 kN)
- Travel Speed (One Speed): 5.2 mph (8.4 km/h)
- Travel Speed (Two Speed): 8.4 mph (13.5 km/h)

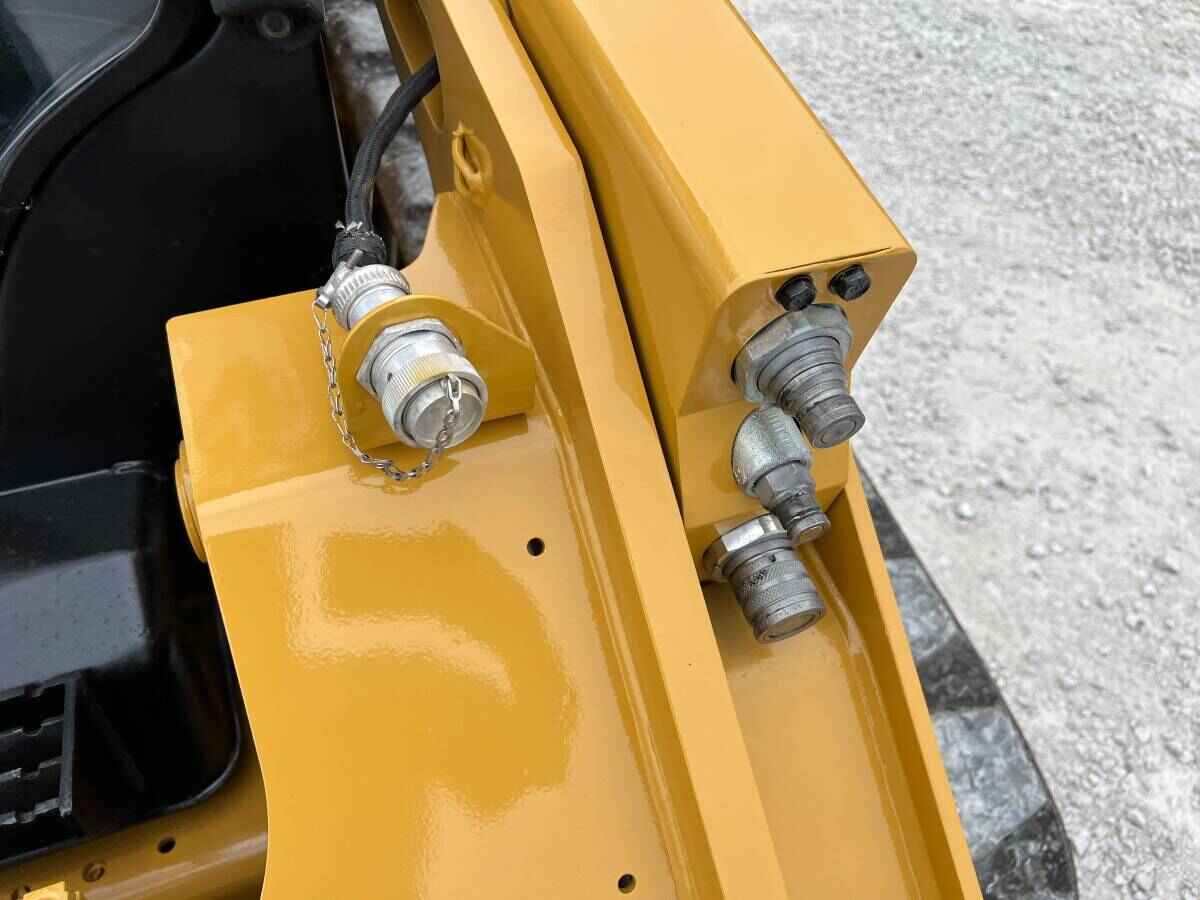

Hydraulics
- Standard Flow – Loader Hydraulic Pressure: 3,335 psi (23,000 kPa)
- Standard Flow – Loader Hydraulic Flow: 23 gal/min (87 L/min)
- Standard Flow – Hydraulic Power (calculated): 44 hp (33 kW)
- High Flow XPS – Maximum Loader Hydraulic Pressure: 4,061 psi (28,000 kPa)
- High Flow XPS – Maximum Loader Hydraulic Flow: 32 gal/min (121 L/min)
- High Flow XPS – Hydraulic Power (calculated): 76 hp (57 kW)
Dimensions
- Height to Top of Cab: 6.97 ft (2,125 mm)
- Ground Clearance: 0.8 ft (240 mm)
- Length with Bucket on Ground: 12.89 ft (3,930 mm)
- Length without Bucket: 10.46 ft (3,190 mm)
- Vehicle Width (400 mm/15.7 in tracks): 6.33 ft (1,930 mm)
- Vehicle Width (450 mm/17.7 in tracks): 6.5 ft (1,980 mm)
- Bucket Pin Height – Maximum Lift: 10.53 ft (3,210 mm)
- Clearance at Maximum Lift and Dump: 7.88 ft (2,400 mm)
- Reach at Maximum Lift and Dump: 2.8 ft (850 mm)
- Turning Radius from Center – Machine Rear: 6.17 ft (1,880 mm)
Service Refill Capacities
- Cooling System: 4.1 gal (15.5 L)
- Fuel Tank: 32.2 gal (122 L)
- Hydraulic Tank: 10.3 gal (39 L)
- Engine Crankcase: 3.5 gal (13 L)
- Hydraulic System: 14.5 gal (55 L)
- Diesel Exhaust Fluid (DEF) Tank: 5 gal (19 L)
