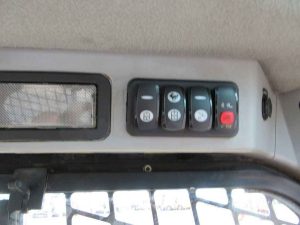

Caterpillar C3.3B 4 cyl turbo diesel, cab with heat, A/C, 2 speed travel, rearview camera, aux hyd, aux electrical connector, hyd coupler, GP bucket with BOCE, meter reads 3704 hours, S/N CAT0279DJGTL06828
Engine:
- Model: Cat C3.3B DIT (turbo)
- Gross Power: 74.3 hp
- Net Power (ISO 9249): 73.7 hp
- Peak Torque (at 1,500 rpm): 195 lb-ft
- Displacement: 203 in³
- Bore: 3.7 in
- Stroke: 4.7 in
Dimensions:
- Length with Bucket on Ground: 146.2 in
- Length without Bucket: 117.9 in
- Height to Top of Cab: 83.2 in
- Ground Clearance: 8.9 in
- Track Width: 15.7 in
- Vehicle Width (with 15.7 in tracks): 76 in
- Length of Track on Ground: 64.2 in
- Departure Angle: 32°
- Bucket Pin Height at Maximum Lift: 124.9 in
- Reach at Maximum Lift and Dump: 22.6 in
- Clearance at Maximum Lift and Dump: 97.8 in
Operating Specifications:
- Operating Weight: 9,893 lb
- Rated Operating Capacity (50% Tipping Load): 2,935 lb
- Rated Operating Capacity (35% Tipping Load): 2,055 lb
- Tipping Load: 5,870 lb
- Breakout Force (Tilt Cylinder): 7,285 lb
- Ground Pressure (with 15.7 in tracks): 4.9 psi
- Travel Speed (One Speed): 4.5 mph
- Travel Speed (Two Speed): 7.0 mph
Hydraulic System:
- Standard Flow:
- Loader Hydraulic Flow: 23 gal/min
- Loader Hydraulic Pressure: 3,335 psi
- Hydraulic Power (calculated): 44 hp
- High Flow XPS:
- Maximum Loader Hydraulic Flow: 32 gal/min
- Maximum Loader Hydraulic Pressure: 4,061 psi
- Hydraulic Power (calculated): 76 hp
Service Refill Capacities:
- Cooling System: 3.7 gal
- Fuel Tank: 24.8 gal
- Hydraulic System (including tank): 13.7 gal
- Hydraulic Tank: 10.3 gal
- Engine Crankcase: 3.0 gal
Cab:
- ROPS: ISO 3471:2008
- FOPS: ISO 3449:2005 Level I
- FOPS Level II: ISO 3449:2005 Level II
