2019 Caterpillar 259D Track Skid Steer Loader (Cab with Heat & A/C!! Two Speed!! Hydraulic Coupler!! 1300 Hours!!)
– 74 HP Engine
– Cab with Heat & Air Conditioning
– Two (2) Speed Travel
– Pilot Controls
– Heated Air Ride Seat
– Reverse Camera
– Standard Flow Auxiliary Hydraulics
– Hydraulic Bucket Coupler
– 1300 Hours

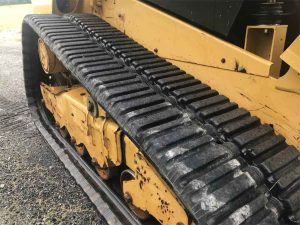

– Wide Tracks/Torsion Suspension Undercarriage
– Electric Tool Control
– Comes Serviced and Ready for Work!!
Engine
- Model: Cat C3.3B DIT (turbo)
- Gross Power: 74.3 hp (55.4 kW)
- Net Power: 73.2 hp (54.6 kW)
- Displacement: 203 in³ (3.3 L)
- Peak Torque: 195 ft-lb (265 Nm) at 1,500 rpm
Weights
- Operating Weight: 8,846 lbs (4,013 kg)
Performance
- Rated Operating Capacity (35% tipping load): 2,030 lbs (921 kg)
- Rated Operating Capacity (50% tipping load): 2,900 lbs (1,315 kg)
- Tipping Load: 5,800 lbs (2,631 kg)
- Breakout Force, Tilt Cylinder: 5,035 lbs (2,284 kg)
- Ground Pressure: 6.0 psi (41.1 kPa) with 12.6 in (320 mm) tracks
- Travel Speed (one speed): 5.9 mph (9.5 km/h)
- Travel Speed (two speed): 8.5 mph (13.7 km/h)
Hydraulics
- Standard Flow: 20 gal/min (76 L/min) at 3,336 psi (23,000 kPa)
- High Flow (optional): 30 gal/min (112 L/min) at 3,336 psi (23,000 kPa)
Dimensions
- Length with Bucket on Ground: 137.3 in (3,486 mm)
- Length without Bucket: 108.9 in (2,767 mm)
- Height to Top of Cab: 80.3 in (2,039 mm)
- Width over Tracks: 66 in (1,676 mm) with 12.6 in (320 mm) tracks
- Ground Clearance: 9.4 in (240 mm)
- Track Length on Ground: 59 in (1,499 mm)
- Departure Angle: 35°
Features
- Vertical Lift Design: Provides extended reach and lift height for quick and easy truck loading.
- Suspended Undercarriage: Standard system provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.
- Cab and Rollover Protective Structures (ROPS): Standard in North America and Europe.
- Operator Sound Pressure Level: 83 dB(A) inside cab with doors and windows closed.
