4 cyl turbo diesel, cab with heat, A/C, stereo, aux hyd, aux electrical connector, Power Bob-Tach, GP bucket, meter reads 2641 hours, S/N ALJU30434

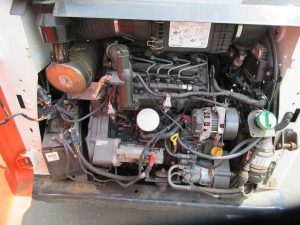

Engine:
- Engine Model: Bobcat 4-cylinder diesel
- Gross Power: 74 hp (55 kW)
- Net Power: 70 hp (52 kW)
- Engine Type: 4-Cylinder, Diesel
- Engine Displacement: 2.2 L (134.4 cu in)
- Rated Engine Speed: 2,600 rpm
- Fuel Tank Capacity: 24.8 gal (93.8 L)
- Cooling System Capacity: 3.8 gal (14.4 L)
- Hydraulic Tank Capacity: 13.5 gal (51 L)
Dimensions:
- Operating Weight: 8,107 lbs (3,675 kg)
- Length (with bucket): 10.1 ft (3,077 mm)
- Width (with bucket): 5.3 ft (1,616 mm)
- Height to Top of Cab: 6.4 ft (1,961 mm)
- Ground Clearance: 8.5 in (216 mm)
- Width Over Tracks: 5.3 ft (1,616 mm)
- Track Width: 12 in (305 mm)
- Wheelbase: 3.4 ft (1,042 mm)
- Length Without Bucket: 8.0 ft (2,438 mm)
- Height to Bucket Pin: 10.6 ft (3,236 mm)
- Rear Overhang: 4.4 ft (1,341 mm)
Performance:
- Rated Operating Capacity: 2,000 lbs (907 kg)
- Tipping Load: 4,000 lbs (1,814 kg)
- Lift Height: 10.1 ft (3,077 mm)
- Max Reach at Full Lift Height: 3.0 ft (914 mm)
- Max Dump Height: 8.5 ft (2,591 mm)
- Dump Angle: 40°
- Bucket Rollback (at ground): 30°
- Rollback at Maximum Lift Height: 96°
- Travel Speed (Low): 5.8 mph (9.3 km/h)
- Travel Speed (High): 11.4 mph (18.3 km/h)
- Drawbar Pull: 5,500 lbs (2,495 kg)
- Hydraulic Flow: 23.9 gal/min (90.5 L/min)
- Hydraulic Pressure: 3,300 psi (22,950 kPa)
Hydraulic System:
- Auxiliary Hydraulic Flow (Standard): 23.9 gal/min (90.5 L/min)
- Auxiliary Hydraulic Pressure: 3,300 psi (22,950 kPa)
- Lift Cylinder Bore: 2.5 in (64 mm)
- Tilt Cylinder Bore: 2.5 in (64 mm)

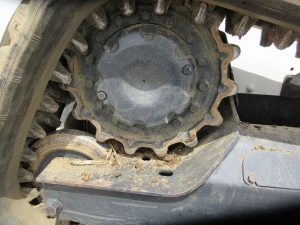

Undercarriage:
- Tire Size: 12-16.5
- Track Type: Rubber Tracks
- Ground Pressure: 4.5 psi (31.0 kPa)
- Number of Tracks: 2
- Track Width: 12 in (305 mm)
- Ground Clearance: 8.5 in (216 mm)
Capacities:
- Fuel Tank Capacity: 24.8 gal (93.8 L)
- Hydraulic Reservoir Capacity: 13.5 gal (51 L)
- Hydraulic System Fluid Capacity: 23.9 gal (90.5 L)
- Engine Oil Capacity: 4.5 qt (4.3 L)
Cab Features:
- ROPS: ISO 3471:2008
- FOPS: ISO 3449:2005 Level II
- Operator Cab: Standard
- Heating System: Optional
- Air Conditioning: Optional
- Joystick Controls: Standard
- Seats: Adjustable
- Cab Mounting: Isolated
Brakes and Safety:
- Brakes: Hydraulic wet disc brakes
- Parking Brake: Automatic
- Safety Features:
- Backup alarm
- Seat belt interlock
- Roll-over protection (ROPS)
Additional Features:
- Lift Arm Path: Vertical
- Auxiliary Hydraulics: Standard
- Engine Shutdown: Optional
- Machine Control System: Optional
