PRICE FIRM NO TAX OR FEES
6MONTH/1500Hr FULL Warranty!
Just completely cleaned, Serviced, greased & looked over. Photos just Taken!
– 2,564 well kept Hours
– Dual Auxiliaries
– Enclosed HEAT/AC
– Manual Coupler
– 24” Tooth Bucket
– Hydraulic Thumb
– 2 Speed
– Undercarriage in great shape
– 48 Hp
– 12,700 Lbs
Absolutely NO ISSUES & READY TO WORK

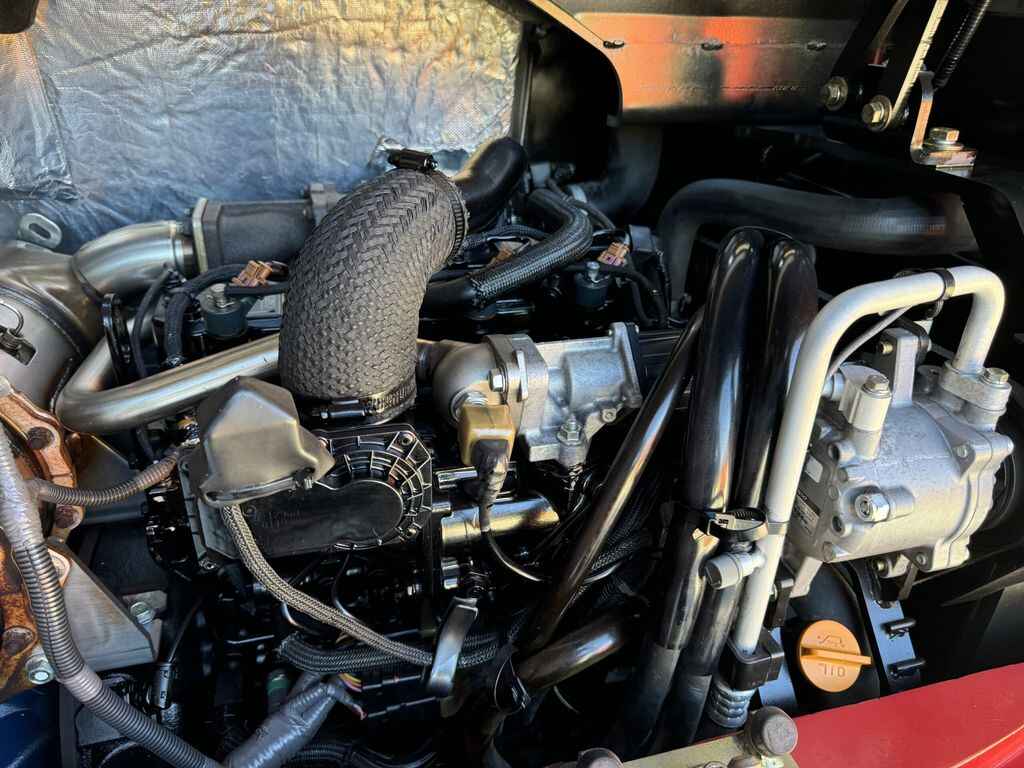

Engine
- Model: Yanmar 4TNV86CT
- Displacement: 127.6 cu in (2.1 L)
- Horsepower: 47.6 hp (35.5 kW) @ 2,400 rpm
- Maximum Torque: 130.5 ft-lb (177.0 Nm) @ 1,560 rpm
Operating Performance
- Operating Weight (Canopy): 12,125 lb (5,500 kg)
- Operating Weight (Cab): 12,645 lb (5,735 kg)
- Maximum Bucket Breakout Force: 12,756 lb (5,786 kg)
- Maximum Arm Digging Force: 5,755 lb (2,610 kg)
- Slew Speed: 9.4 rpm
- Traction Force: 15,040 lb (6,822 kg)
- Ground Pressure (Cab with Rubber Tracks): 4.4 psi (30.2 kPa)
- Ground Pressure (Cab with Steel Tracks): 4.6 psi (31.5 kPa)
- Travel Speed (Low Range): 1.7 mph (2.8 km/h)
- Travel Speed (High Range): 3.0 mph (4.9 km/h)

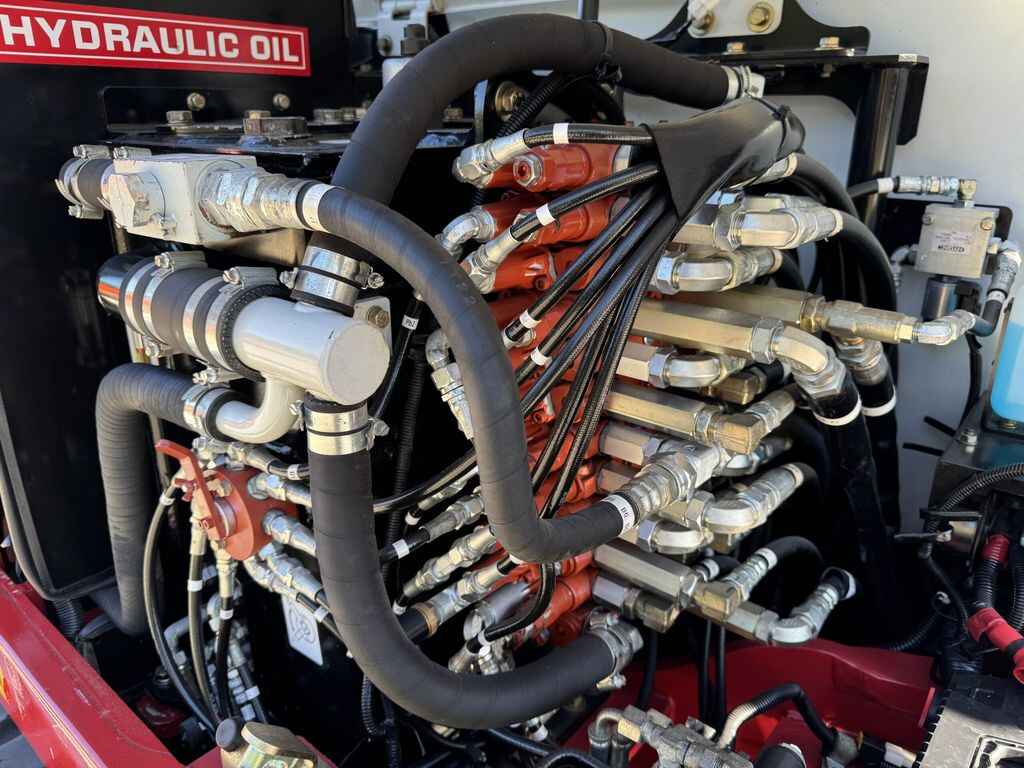

Hydraulic System
- Total Hydraulic Flow: 45.3 gpm (171.5 L/min)
- Auxiliary Flow – Primary Circuit: 27.0 gpm (102.2 L/min)
- Auxiliary Flow – Secondary Circuit: 11.6 gpm (43.9 L/min)
- Hydraulic System Pressure: 3,480 psi (24.0 MPa)
Fluid Capacities
- Engine Lubrication: 7.8 qt (7.4 L)
- Cooling System: 11.6 qt (11.0 L)
- Fuel Tank Capacity: 21.3 gal (81.0 L)
- Fuel Consumption (65% of Full Load): 1.6 gal/hr (6.3 L/hr)
- Hydraulic Reservoir Capacity: 12.9 gal (49.0 L)
- Hydraulic System Capacity: 23.8 gal (90.0 L)
Dimensions
- Maximum Reach: 20 ft 6.9 in (6,270 mm)
- Maximum Reach at Ground Level: 20 ft 1.4 in (6,130 mm)
- Maximum Digging Depth: 12 ft 9.4 in (3,895 mm)
- Maximum Vertical Digging Depth: 9 ft 9.3 in (2,980 mm)
- Maximum Dig Height: 19 ft 5.9 in (5,940 mm)
- Maximum Dumping Height: 13 ft 10.1 in (4,220 mm)
- Front Swing Radius: 7 ft 11.3 in (2,420 mm)
- Front Swing Radius with Boom Offset: 6 ft 5.8 in (1,975 mm)
- Tail Swing (Slew) Radius: 4 ft 3.1 in (1,300 mm)
- Transport Length: 18 ft 2.5 in (5,550 mm)
- Transport Height: 8 ft 5.4 in (2,575 mm)
- Ground Clearance: 13.1 in (330 mm)
- Undercarriage Length: 8 ft 5.3 in (2,575 mm)
- Track Width (Rubber): 15.7 in (400 mm)
- Undercarriage Width: 6 ft 6.7 in (2,000 mm)
