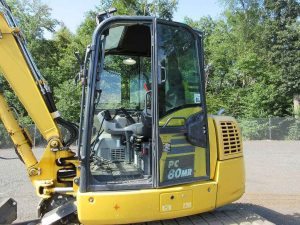

4 CYL KOMATSU DIESEL, CAB WITH HEAT, A/C, STEREO, AUTO IDLE, 2 SPEED TRAVEL, BACKFILL BLADE, SWING BOOM, AUX HYD, 6′ 7″ STICK, COUPLER, BUCKET WITH TEETH, METER READS 1687 HOURS, S/N F50132
Engine
- Model: Komatsu 4D98E-5SFB
- Type: Water-cooled, 4-cycle direct injection
- Gross Power: 62 HP (46.2 kW) at 2,200 rpm
- Net Power: 59.2 HP (44.2 kW) at 2,200 rpm
- Displacement: 203 in³ (3.319 L)
Weights
- Operating Weight: 17,637 – 18,155 lbs (8,000 – 8,240 kg)
Performance
- Maximum Digging Depth: 14 ft 3 in (4.335 m)
- Maximum Reach at Ground Level: 21 ft 8 in (6.61 m)
- Bucket Capacity: 0.16 – 0.35 yd³ (0.12 – 0.27 m³)
- Bucket Digging Force: 13,160 lbf (5,855 daN)
- Arm Crowd Force: 8,800 lbf (3,913 daN)
Hydraulics
- Type: Komatsu Closed-center Load Sensing System (CLSS)
- Main Pump Flow: 47 gal/min (178 L/min)
- Auxiliary Hydraulic Flow (Optional): 33 gal/min (125 L/min)
- System Relief Pressure: 3,836 psi (26.5 MPa)
Dimensions
- Overall Length: 19 ft 11 in (6.06 m)
- Overall Width: 7 ft 5 in (2.25 m)
- Overall Height: 8 ft 11 in (2.71 m)
- Ground Clearance: 1 ft 1 in (0.335 m)
- Tail Swing Radius: 2 ft 9 in (0.83 m)
Features
- Integrated Counterweight: Yes
- Tight Tail Swing Radius: Yes
- Swing Boom: Yes
- Selectable Working Modes: 6 modes
- Auto Decelerator and Idle Shutdown: Standard
- High-Resolution 3.5” LCD Monitor: Standard
- KOMTRAX Telematics System: Standard
