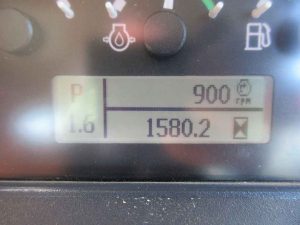

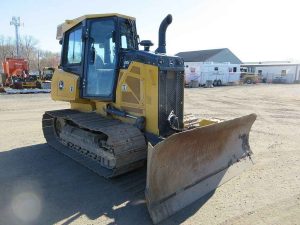

4 cyl John Deere turbo diesel, cab with heat, A/C, stereo, VPAT blade with BOCE, meter reads 1576 hours, S/N 1T0450KXCJF331612
Engine
- Model: John Deere PowerTech™ PWS 4045
- Net Power: 80 hp (60 kW) at 2,200 rpm
- Displacement: 276 cu in (4.5 L)
- Emission Rating: EPA Final Tier 4/EU Stage IV
Operating Weight
- Weight: 18,752 lbs (8,502 kg)
Dimensions
- Overall Length (with standard blade): 17 ft 8 in (5.38 m)
- Width Over Tracks: 7 ft 10 in (2.39 m)
- Height to Top of Cab: 9 ft 2 in (2.79 m)
- Ground Clearance: 1 ft 4 in (0.41 m)
Blade
- Blade Width: 10 ft 8 in (3.25 m)
- Blade Height: 3 ft 2 in (0.97 m)
- Maximum Digging Depth: 1 ft 11 in (0.58 m)
- Blade Capacity: 2.9 cu yd (2.2 m³)
Performance
- Travel Speed (Forward/Reverse): 5 mph (8 km/h)
- Ground Pressure: 4.3 psi (29.6 kPa)
Undercarriage
- Track Gauge: 6 ft 2 in (1.88 m)
- Shoe Width: 24 in (610 mm)
- Track on Ground: 7 ft 6 in (2.29 m)
Capacities
- Fuel Tank: 53.4 gal (202 L)
- Hydraulic Reservoir: 26.5 gal (100 L)
