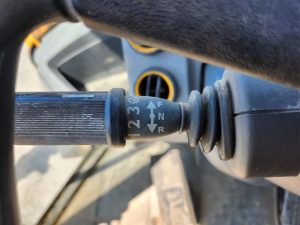

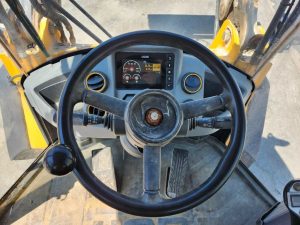

4WD Forward / Reverse, Heat / AC, Thumb Drive Controls and Auxiliary Hydraulics

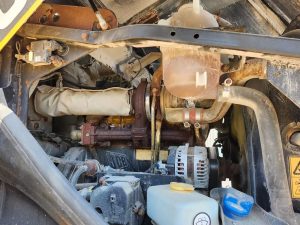

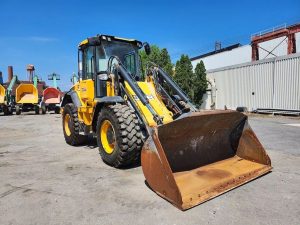

Engine
- Model: JCB EcoMAX T4F
- Type: 4-stroke, direct injection, turbocharged
- Number of Cylinders: 4
- Displacement: 268.6 in³ (4.4 L)
- Gross Power: 125 hp (93 kW) @ 2,200 rpm
- Max Torque: 406 lbf·ft (550 Nm) @ 1,500 rpm
Dimensions
- Length with Bucket on Ground: 20 ft 8 in (6.29 m)
- Width over Tires: 7 ft 8 in (2.33 m)
- Height to Top of Cab: 10 ft 1 in (3.08 m)
- Wheelbase: 9 ft 2 in (2.8 m)
- Ground Clearance: 1 ft 3 in (0.38 m)
- Bucket Width: 7 ft 10 in (2.4 m)
- Bucket Capacity (Heaped): 2.0 yd³ (1.6 m³)
- Dump Clearance at Max Raise: 8 ft 11 in (2.67 m)
- Hinge Pin Max Height: 11 ft 8 in (3.56 m)
- Reach at Max Lift and Dump: 3 ft 1 in (0.94 m)
Performance
- Operating Weight: 21,422 lbs (9,717 kg)
- Breakout Force: 15,737 lbf (7,138 kgf)
- Turning Radius (over Tires): 18 ft 2 in (5.54 m)
- Articulation Angle: 40°
- Rear Axle Oscillation: 11°
Transmission
- Type: Smooth shift Powershift ZF 4WG115
- Number of Forward Gears: 4
- Number of Reverse Gears: 3
- Max Speed – Forward: 31.1 mph (50 km/h)
- Max Speed – Reverse: 23.7 mph (38 km/h)
Hydraulic System
- Max Operating Pressure: 3,480 psi (240 bar)
- Relief Valve Setting: 3,190 psi (220 bar)
- Pump Flow Capacity: 41.3 gal/min (156 L/min)
- Raise Time: 4.9 seconds
- Dump Time: 2.1 seconds
- Lower Time: 3.3 seconds
- Total Cycle Time: 10.3 seconds
- Pump Type: Variable displacement piston pump
Capacities
- Fuel Tank: 30.7 gal (116 L)
- DEF Tank: 5.3 gal (20 L)
- Hydraulic System Fluid: 41 gal (155 L)
Electrical System
- Operating Voltage: 24 V
- Alternator Supplied Amperage: 100 A
