64 HP JCB Diesel By Kohler Engine. Enclosed Cab with Heat, A/C, 3 Spool Servo Controls, Hydrostatic Transmission, Zettlemeyer Quick Hitch, 0.8 CU YD Bucket, Pallet forks. Smooth Ride System, Shovel Level Indicator, Front and Rear Work Lights. Operating Weight: 11,200 lbs. Lift Capacity: 3,660 lbs. Breakout Force: 9,400 lbs. Tipping Load: 9,500 lbs. Max Dump Height: 8’2″.
ENGINE
- Model: JCB Diesel by Kohler Tier 4 Final
- Type: 4-cylinder, turbocharged diesel engine
- Displacement: 2.5 liters
- Power Output: 64 hp (48 kW) @ 2,200 rpm
- Torque: 221 lb-ft (300 Nm) @ 1,500 rpm
- Emission Standard: EPA Tier 4 Final
TRANSMISSION
- Type: Hydrostatic
- Gears: 2-speed
- Maximum Travel Speed: 12.4 mph (20 km/h) standard, up to 22 mph (35 km/h) with high-speed option
HYDRAULICS
- Pump Type: Gear pump
- Flow Rate: 22.7 gallons per minute (86 liters per minute)
- Working Pressure: 3,045 psi (210 bar)
- Auxiliary Hydraulics: Optional for attachments
OPERATING PERFORMANCE
- Operating Weight: 10,141 lbs (4,600 kg)
- Tipping Load (Full Turn): 6,945 lbs (3,150 kg)
- Bucket Capacity: 0.9 – 1.6 cu yd (0.7 – 1.2 m³)
- Breakout Force: 8,290 lbf (36.9 kN)
- Lift Capacity at Full Height: Approximately 5,500 lbs (2,500 kg)
DIMENSIONS
- Overall Length (with bucket): 17.5 ft (5,340 mm)
- Width (over tires): 6 ft (1,850 mm)
- Height (to top of cab): 8.4 ft (2,560 mm)
- Wheelbase: 7.1 ft (2,170 mm)
- Ground Clearance: 13 in (330 mm)
- Turning Radius (outside): 10.8 ft (3,300 mm)

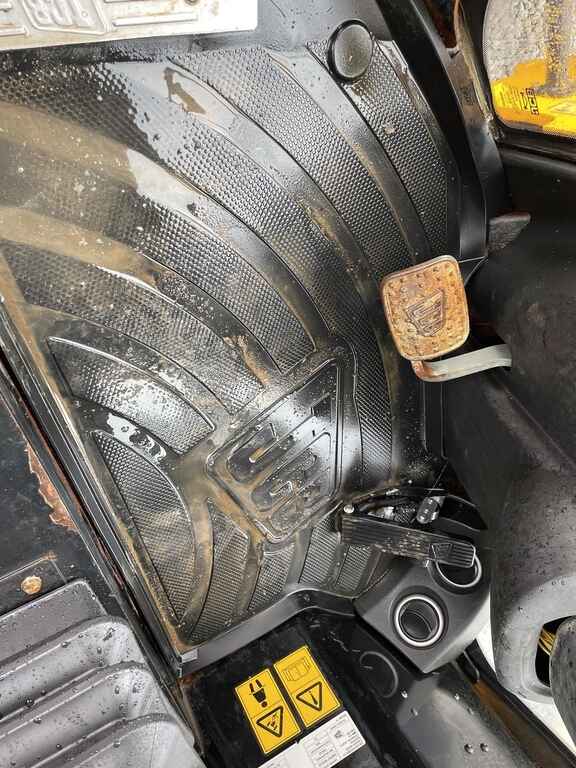

CAB & CONTROLS
- ROPS/FOPS Certified Cab: Yes
- Air Conditioning: Optional
- Adjustable Steering Column: Yes
- Display Panel: Multi-function LCD display
BRAKES
- Service Brakes: Hydraulic, multi-disc, oil-immersed
- Parking Brake: Mechanically operated on transmission
TIRES
- Standard: 405/70 R20
- Optional: Various tire options for different terrains
FUEL & FLUID CAPACITIES
- Fuel Tank: 18.5 gallons (70 liters)
- Hydraulic Tank: 13.2 gallons (50 liters)
- Engine Oil Capacity: 2.3 gallons (8.7 liters)
- Cooling System: 3.7 gallons (14 liters)
